ZJchao 6434 Sleeve Height Counter Bore Cylinder Bore 0-1.00in Measurement Range Tool for Derv Engines

Product description Spec: Item Type: Sleeve Height and Counter Bore Material: Steel + aluminium alloy Fitment: for All derv Engines, Cylinder Bore Range 0-1.00in, Graduation 0.001in, Reading 0-100 Package List: 1 x 4374 Dial Indicator 1 x 4375 Base 1 x 4230 Flat Measuring Tip 1 x 4378 Pointed Measuring Tip 1 x Hex Wrench 1 x Storage Box How To Use: 1. Attach the indicator to the base and gently tighten the securing screw. 2. Use the flat measuring point when measuring counterbores. Use the pointed measuring point for sleeves with embossed flanges. 3. Place the on a flat and zero the indicator by rotating the dial. 4. When the deck is completely clean, you can directly measure the counterbore shoulder and then measure the protrusion height of the sleeve. 5. For cylinder bodies with open ended water jackets, the indicator can be inverted from the shown position into the base. This allows for spanning up to a maximum of 5-1/2 inches on the cylinder to inspect sleeve height and counterbore depth. Manufacturer Contact Information 1

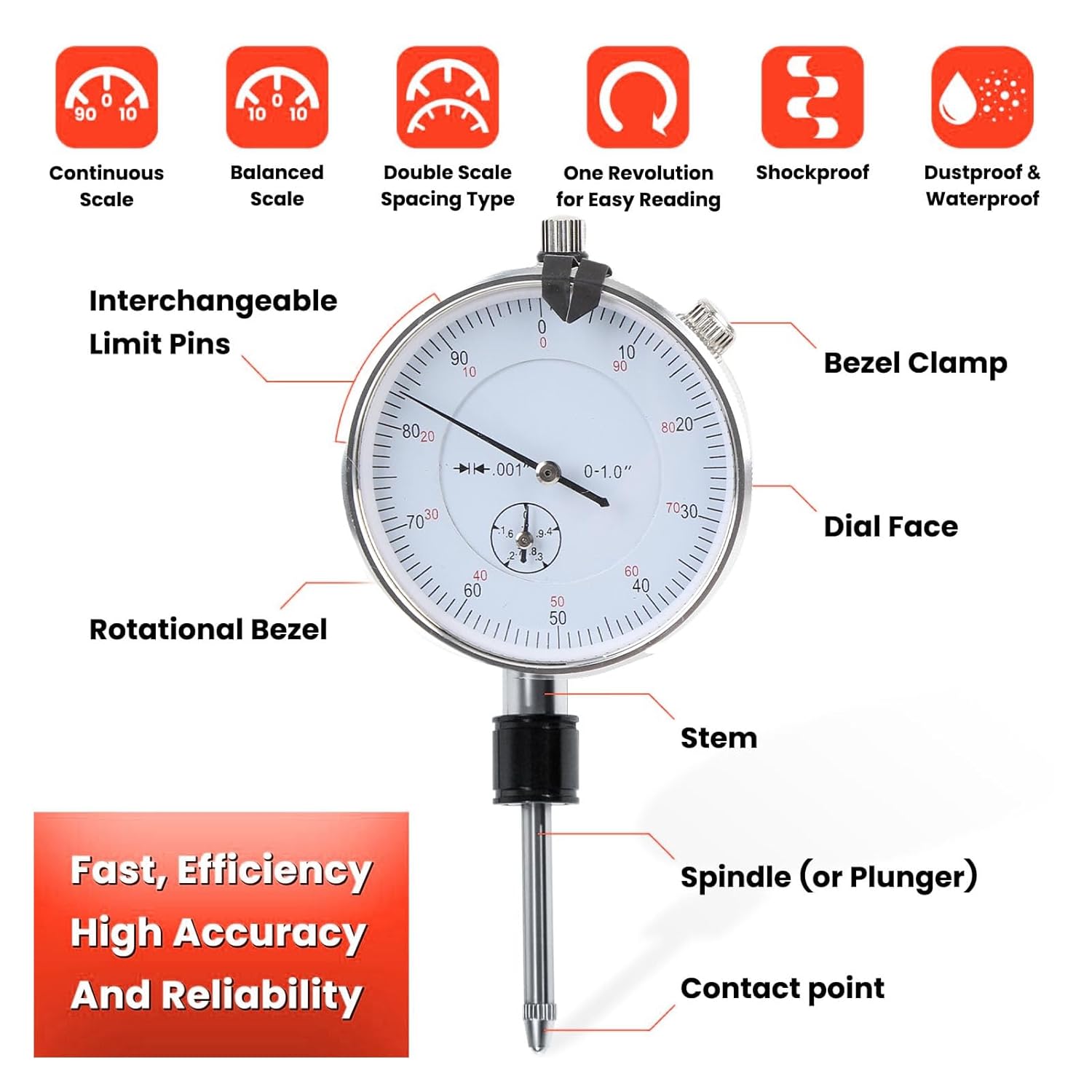

• [Convenient Design] Features a rotating bezel with a clamp for easy zero adjustment, along with interchangeable limit markers for reference points without interference, making measurements quick and accurate.
• [Precise Measurement] Accurately measures cylinder sleeve height, bore depth, , piston to deck clearance, and valve protrusion for all derv engine .
• [Easy to Use] Etched scale and robust components provide consistent and repeatable readings across the entire 0-1.00 inch range, for precise engine manufacturing.

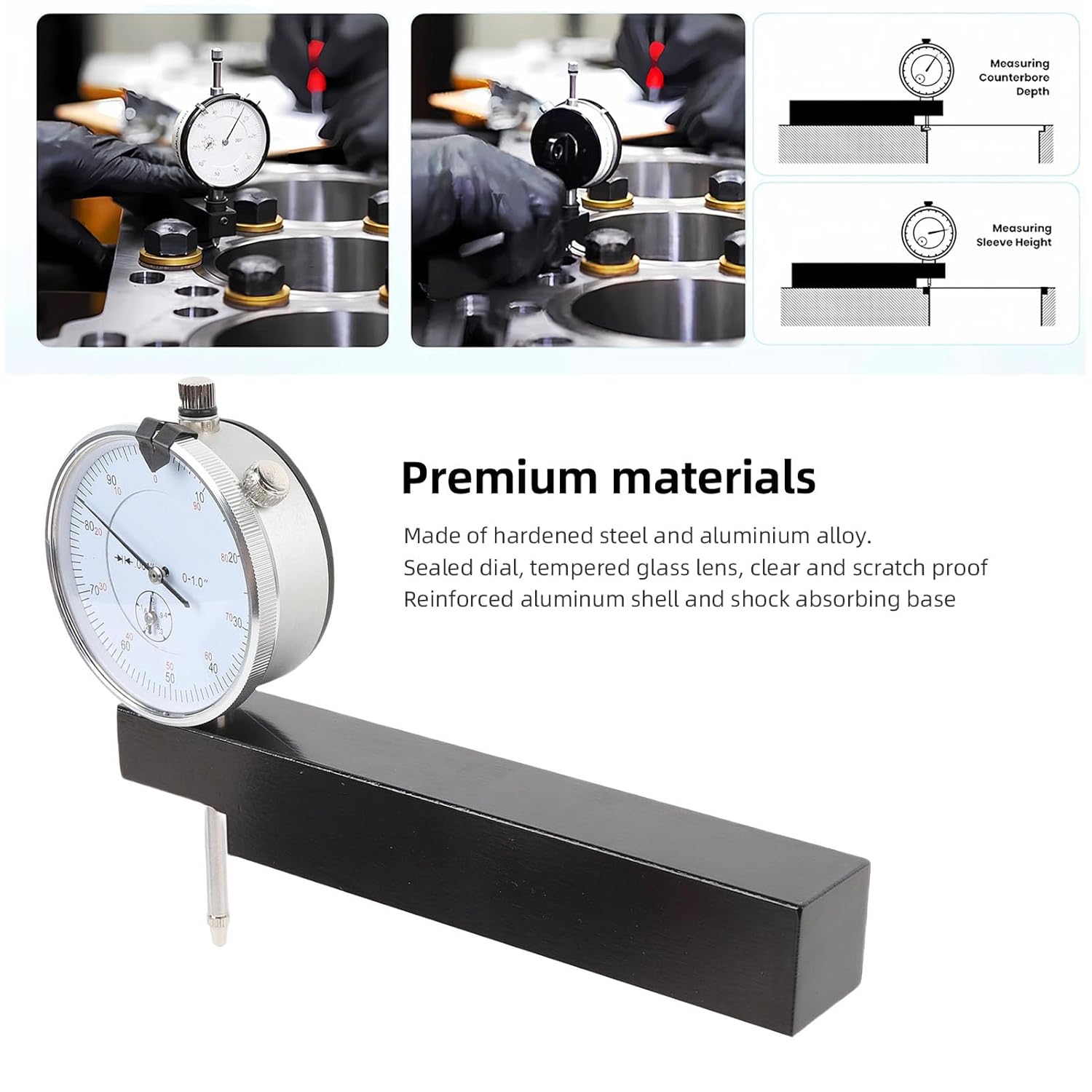

• [Premium Materials] Crafted from hardened steel and aluminum alloy, this is built to withstand extreme conditions, ensuring durability and long-term use.
• [Portable Kit] Includes , base, flat and pointed measuring points, hex wrench, and a carrying bag for organized storage, ideal for automotive, aerospace, marine, and heavy machinery diagnostics.
