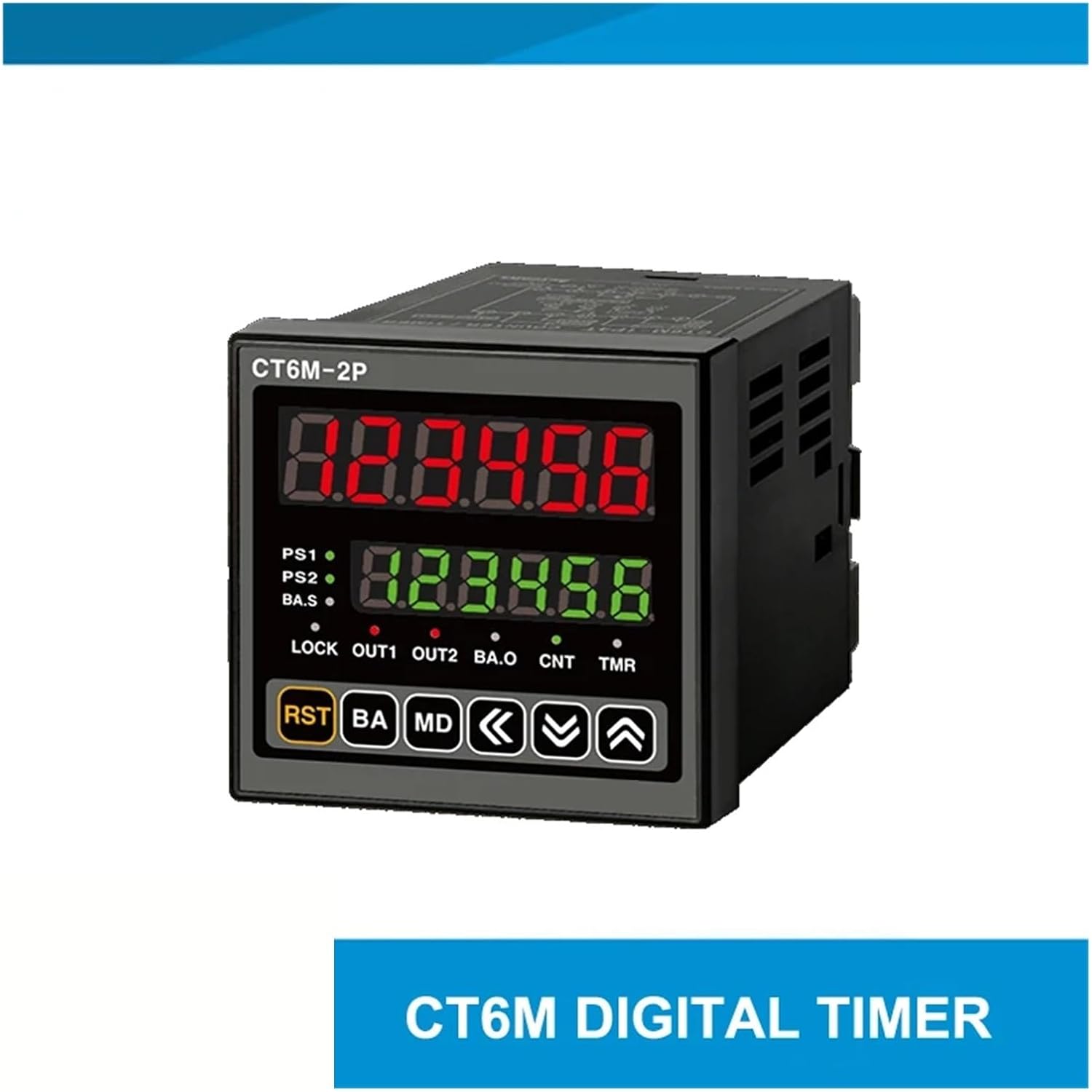

ZERVA CT6M-2P4T CX6M-2P4 Programmable Digital Counter Timer (Size : CT6M-2P4T)

Data sheetDisplay method6-digit 7-segment LEDOperation methodCounter: Count up, Count down, Count up/downTimer: Count up, Count downTerminalTerminal blockOutput OperationPower supply 100-240VAC~ 50/60HzTime operationPOWER ON STARTExternal Power SupplyMax. 12VDC±10%, 100mAInput MethodVoltage input(PNP), No-voltage input(NPN)Max. Counting Speed 1, 30, 1k, 5k, 10kMin. Width 1ms/20msSetting range0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hourControl output_Type 2-stage presetControl output_Relay SPST (1a): 1, SPDT (1c): 1Control output_NPN open collectorProtection structure IP65(front panel)Counter_Counting range -99999 to 999999Counter_ScaleDecimal point up to fifth digitEnvironment_Ambient temperature -10 to 55, storage: -25 to 65Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH

• Small, lightweight and highly reliable digital electronic universal timer
• Provides a variety of programming options to easily meet the diverse scheduling needs of customers.
• Digital display for easy reading of measurement results. Easy to read in poorly lit areas.
• Please allow 1-3 mm error due to manual measurement.
• Colors may vary slightly due to differences in monitors and the conditions under which they were taken.
