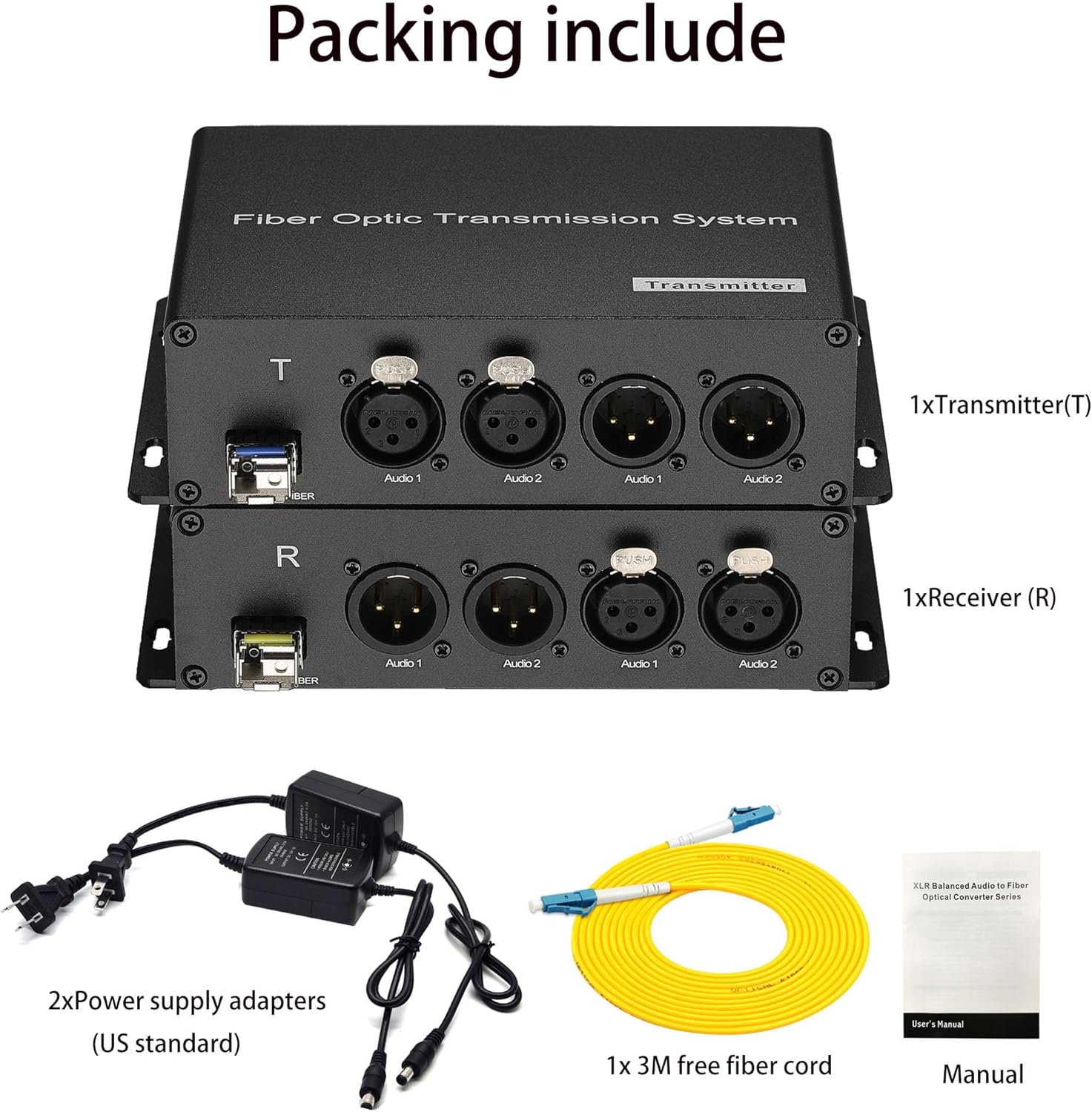

XLR Balanced Audio Over Fiber Optic Extender A Pair- Singlemode Fiber up 20Km LC SFP Include Uncompressed Broadcast Grade Professional Crystal Clear Sound (2 Port BIDI)

Attention: The XLR audio fiber extender signal can be outputed to the power amplifier, but the power amplifier audio source can not output the audio source signal to the fiber extender, otherwise the fiber extender will be burned. We suggest that user use the short optical fiber cable to do first time test to ensure that all the functions of the equipment are normal, and then do long-distance transmission. Optical Port: Optical connector: LC Wavelength: 1310nm and 1470nm~1610nm (selected according to the function of the device). Transmitting optical power: more than -7db. Receiving sensitivity: more than -24db Fiber: single fiber multi-mode (MM) or single-mode (SM). Transmission range: 0-20km for SM, 0-500m for MM. Optical fiber type: universal 9/125u single mode, 50/125u or 62.5/125u multimode. XLR Audio Ports: Number of Channels: 2 bi-directional Audio physical interface： Transmitter: XLR connector and 6.5mm audio line (dual use). Receiver: XLR connector Signal level：0-8Vp-p Dynamic bandwidth：101 dB Total harmonic distortion (THD)：-90 dB Frequency of sampling：192 KHz Audio A / D sampling：24 Bit Noise-signal ratio (SNR)：100 dB Amplitude-frequency characteristic：≤±0.5 dB Audio input / output impedance ：And 600 Ω in equilibrium Audio maximum input / output voltage：0~4V /0~2.5V Audio gain：±0.1 dB Maximum input level: ≥9.5 dBm Nonlinear distortion: ≤0.2% Audio interface level III lightning protection, reaching IEC61000-4-5 (8/20μs) Differential mode: 6KV. General Spec: Working temperature: -20°C ~ +70°C. Storage temperature：-40 to 80°C Relative humidity:5 to 95% (non-condensing) Working life: more than 1,0,000,000 hours Support wide range working Voltage: AC100-240V 50/60Hz, DC12V Power plug：US/EU/UK/AU standard is optional. Dimension: 167mm(L)×114mm(W)×45mm(H). Package include: 1x Balanced XLR Audio Fiber Transmitter 1x Balanced XLR Audio Fiber Receiver 2x Power supply adapter (US standard) 1x FREE 3M Fiber patch cord 1x Manual.

• 【XLR Audio over Fiber】The xlr over fiber extender can extend 2 bi-directional balanced 3 pin XLR broadcast high grade Audio over fiber optic cable to far end. It allows 2 XLR audio device synchronous transmission, No debugging required. 2 XLR Audio signal is transmitted from T (TX) in the direction of R (RX), other 2 XLR Audio signal is transmitted in reverse direction
• 【Long Transmission range】It can work on both single-mode and multi-mode fiber cable. Long transmission distance: Single mode up to 12.4 miles (20Km), ,multi-mode single fiber up to 1640FT(500meters)
• 【Crystal clear sound, No Loss, No Delay】 Professional quality ,Pure and Clean fiber optic audio signal transmission
• 【Wide Applications】Typically used in applications for Staging, Theaters, Stadiums, Parks, Broadcast, studio audio and professional AV applications, etc., and are available for stand-alone and desktop type, or wall mounted, installations
• 【Plug and Play】No need to set up ,Plug and play. Simply plug in an Optical LC port and XLR audio connectors at TX and RX sides, it will have crystal clear sound instantly
