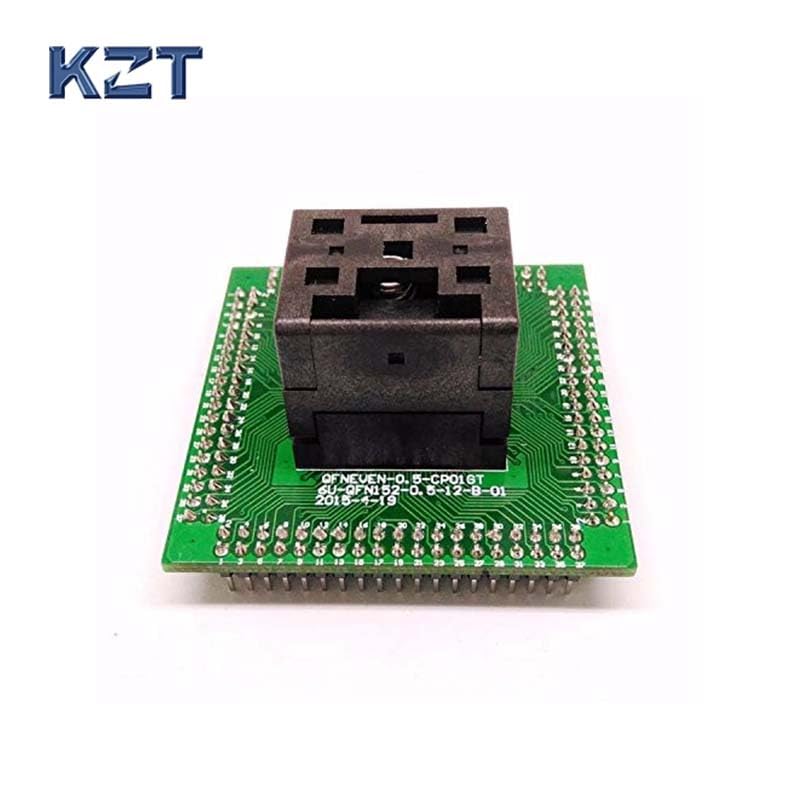

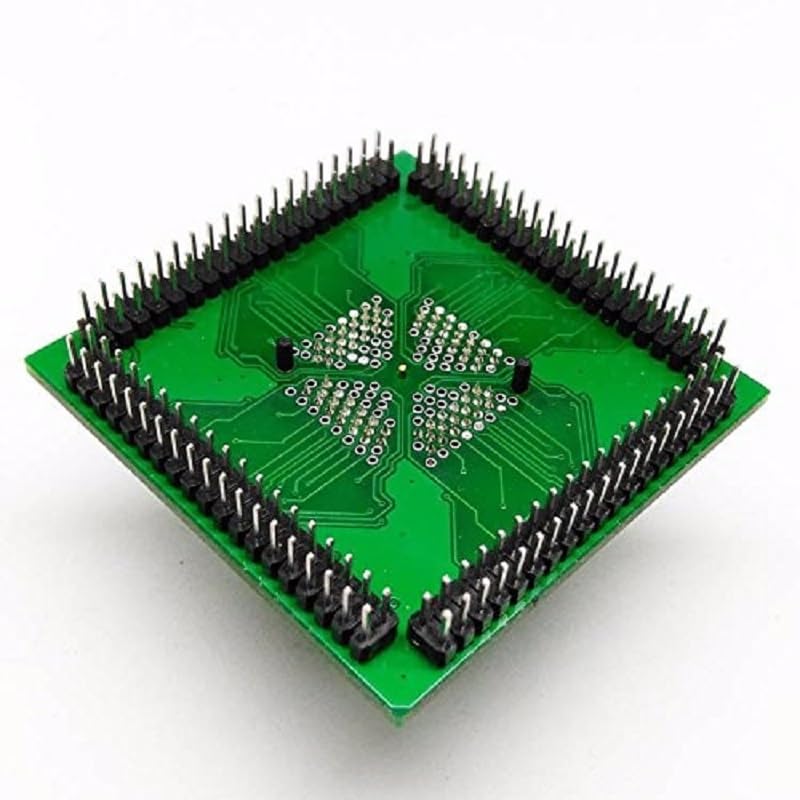

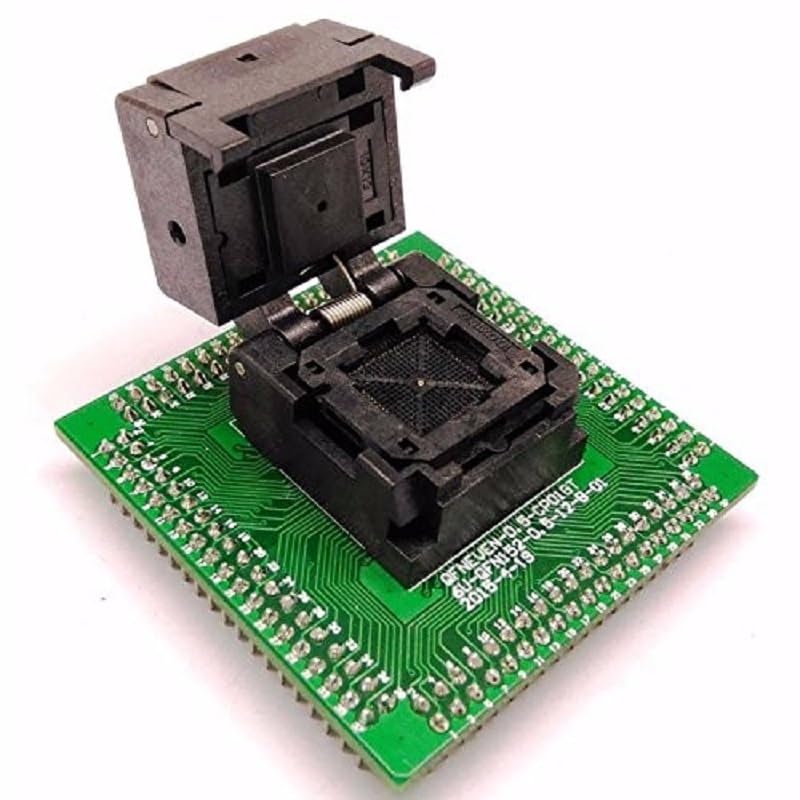

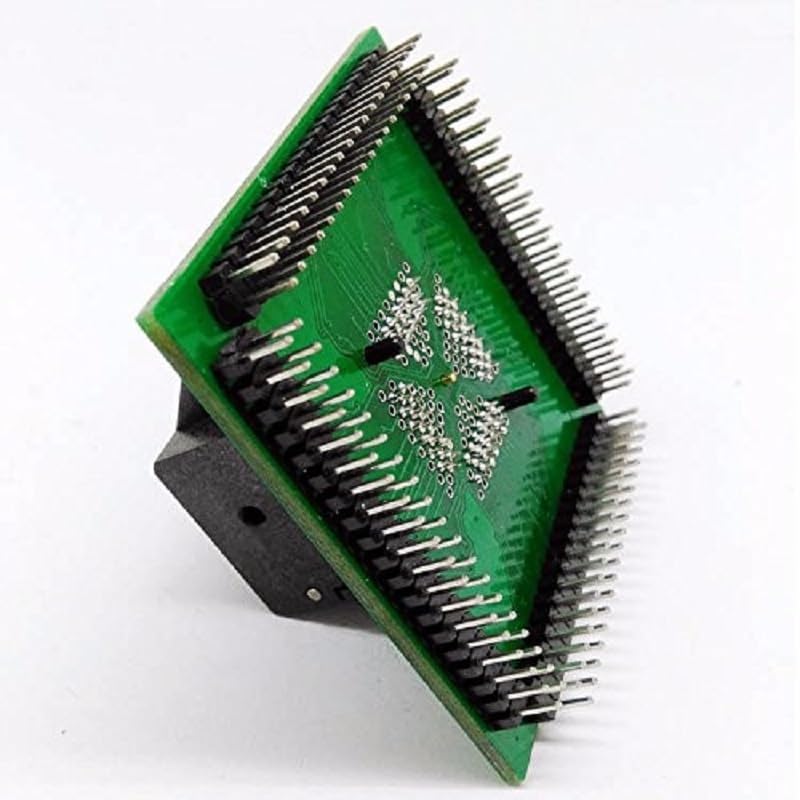

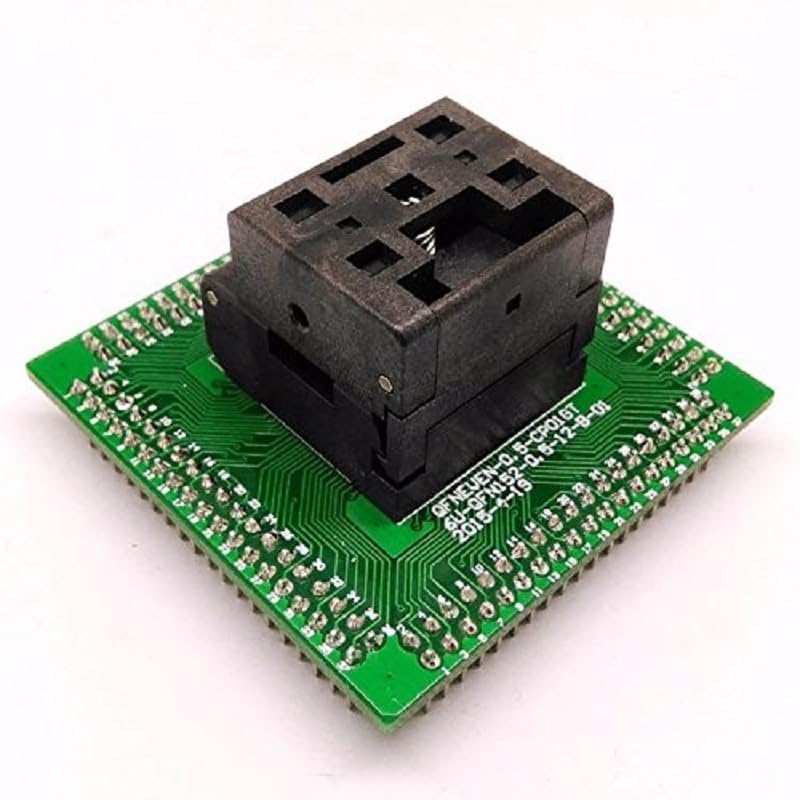

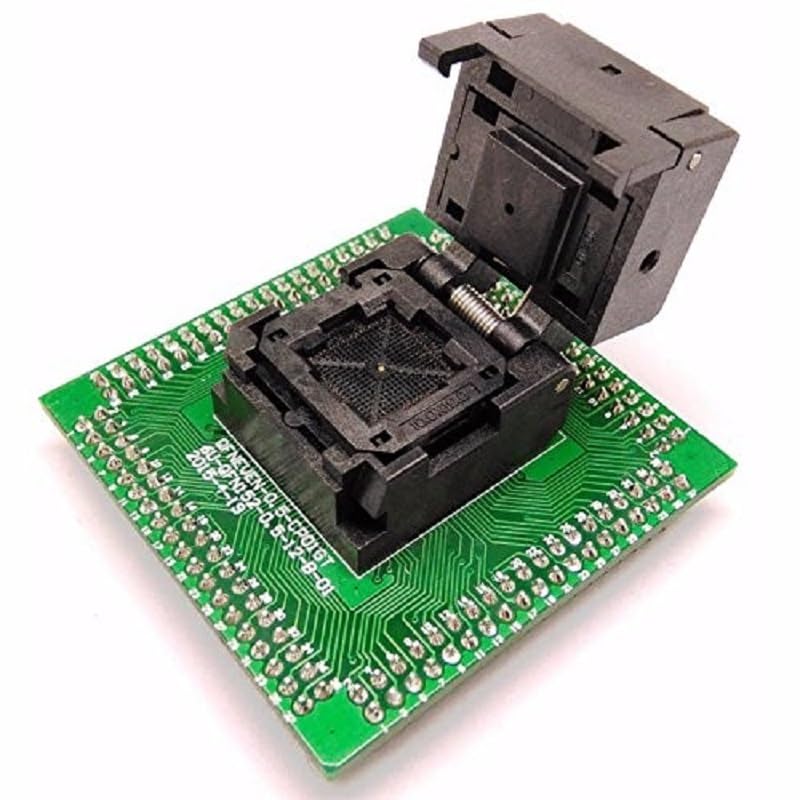

Wiring Connecting Terminals - QFN Programmer Socket IC Test Socket IC550-0644-006-G Pitch 0.5mm Chip Size 9 * 9 Flash Adapter Clamshell QFN64 MLF64

QFN64 MLF64 Burn in Socket IC Test Socket IC550-0644-006-G Pitch 0.5mm Chip Size 9*9 Flash Adapter Clamshell Programming Socket Features:a.Clamshell structure with PCB boardb.Adopting engineering material for socket structure,Strength is high ,lifetime is longc.Adopting import BeCu material for socket contactSpring ,thickening gold-plating surface ,impedance is small elasticity is goodd.For 0.5mm pitch packagee.Thru hole design Material & Performance: socket Body: PEI Contacts:Beryllium Copper Alloy Contact Plating:Gold over Nickel Operation Force:2.0KG min, the more PINs the greater force Contact Resistance:50m max Dielectric:700V AC for 1 minute Insulation Resistance:1,000M 500V DC Max Current Capacity : 1A Temperature Rating:-55 ~+175 Life Span 15,000 Times (Mechanical)Specification and Dimension :a) Type : QFN64-0.5b) Pin pitch : 0.5 mmc) Pin Count : 64d) Applicable IC Body Dimension : 9*9 mm

• a.Clamshell structure with PCB board
• b.Adopting engineering material for socket structure, Strength is high ,lifetime is long
• c.Adopting import BeCu material for socket contact
• Spring ,thickening gold-plating surface ,impedance is small elasticity is good
• d.For 0.5mm pitch package
