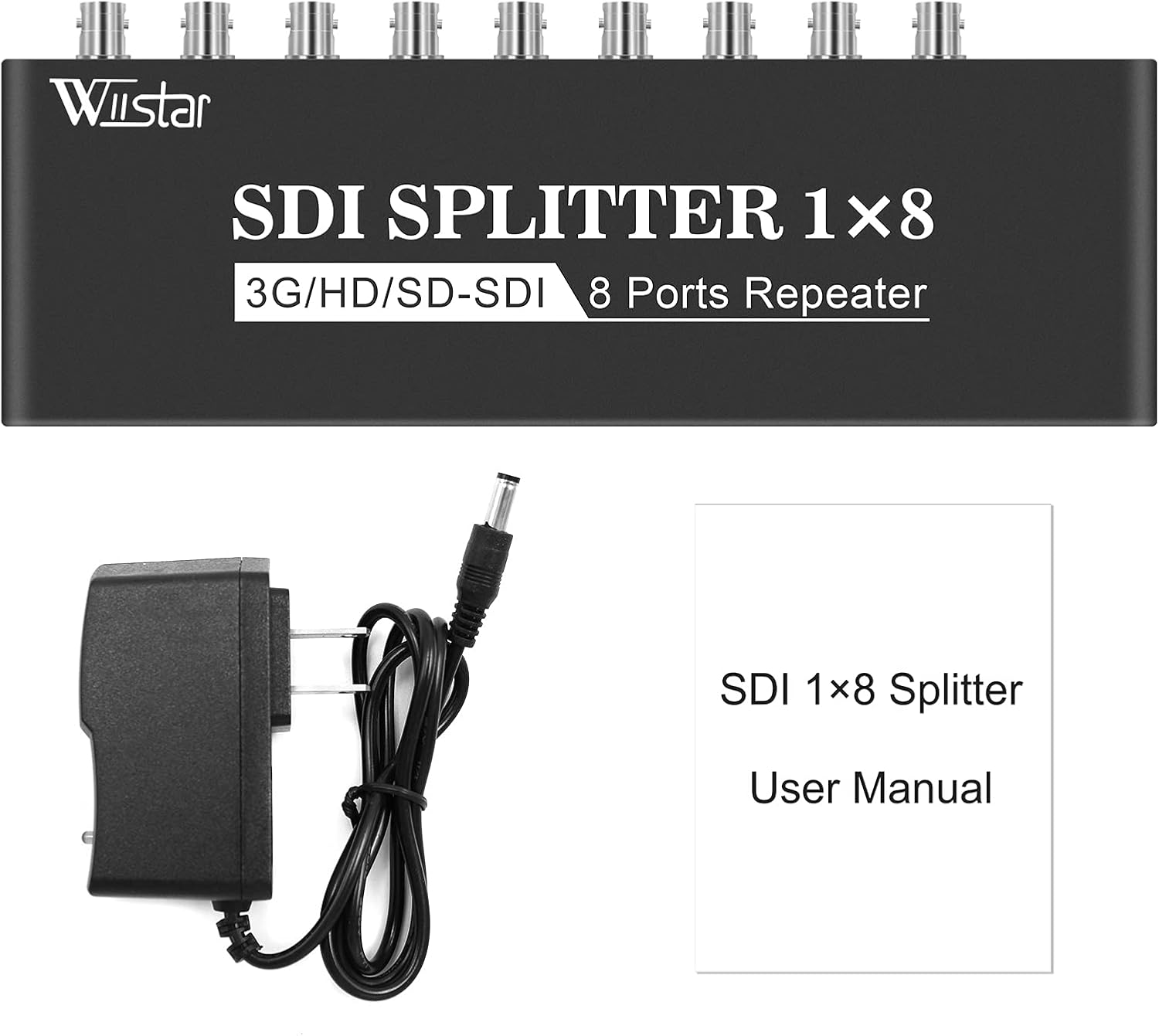

Wiistar SDI Splitter 1x8 SDI 1 in 8 Out Supports SD/HD/3G-SDI Repeater Extender with Power Adapter SDI Video Splitter for Monitor
Product details
| Management number | 215133719 | Release Date | 2026/04/12 | List Price | $40.00 | Model Number | 215133719 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Description: This SDI 1x8 splitter distributes one SDI signal to 8 SDI outputs simultaneously. It supports full range of SDI signal formats including 3G-SDI, HD-SDI, SD-SDI with easy operation and high reliability. Using broadcast quality processing technology, it delivers high definition, lossless and lag-free distribution.This splitter can be widely used in SDI broadcast room, no-linear editing field, CCTV security system and training showroom etc. Specifications: Input connector: 1 x SDI BNC (HD-SDI/SD-SDI/3G-SDI) Output connector: 8 x SDI BNC (HD-SDI/SD-SDI/3G-SDI) SDI standard: Compatible with 3G-SDI,SMPTE 424M,HD-SDI SMPTE292M and SD-SDI SMPTE259-C SDI speed rate: 270~2970MB/s Supported cable length(BELDEN 1694A) 3G mode: up to 330 ft. HD mode: up to 660 ft. SD mode: up to 1320 ft. Features: SDI Input Resolution: 480i@60HZ, 576i@50HZ, 720P@50HZ, 720P@60HZ, 1080i@50HZ; 1080i@60HZ; 1080P@24HZ, 1080P@25HZ, 1080P@30HZ, 1080P@50HZ, 1080P@60HZ SDI Output Resolution: 480i@60HZ, 576i@50HZ, 720P@50HZ, 720P@60HZ, 1080i@50HZ; 1080i@60HZ; 1080P@24HZ, 1080P@25HZ, 1080P@30HZ, 1080P@50HZ, 1080P@60HZ Note: 1.Only support SDI signal, not support RF,CVBS ,AHD,TVI,CVI signal. 2.Only Support 1080p,Not support 4K. 3.Only Support BNC to BNC 75-ohm Coaxial Cable Package Contents: 1 X SDI 1x8 Splitter Converter 1 x 12V power adapter 1 x User Manual
- 【SDI 1x8 splitter】Distributes one SDI signal to 8 SDI monitor outputs simultaneously
- Support full range of SDI signal formats including 3G-SDI, HD-SDI, SD-SDI with easy operation and high reliability
| Brand | Wiistar |
|---|---|
| Finish | Hdmi |
| Unit Count | 1 Count |
| Item Weight | 0.57 Kilograms |
| Manufacturer | YXW |
| Model Number | F218 |
| Input Voltage | 12 Volts |
| Connector Type | Coaxial |
| Current Rating | 75 Amps |
| Item Dimensions | 8.66 x 2.76 x 0.79 inches |
| Package Quantity | 1 |
| Compatible Devices | Monitor, Television |
