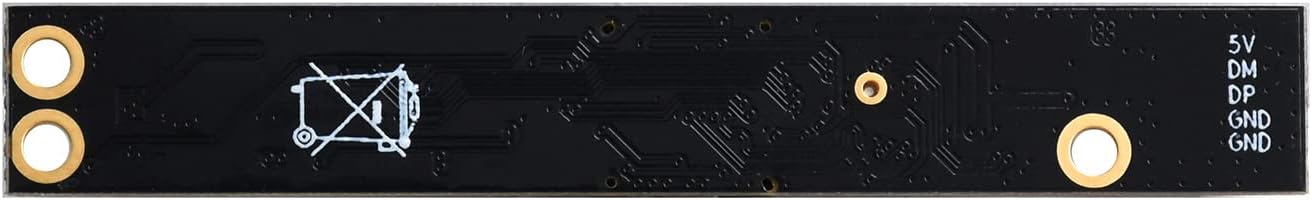

waveshare OV5640 5MP USB Camera Module Auto Focus Camera Webcam Board for Raspberry Pi,Jetson Nano,PC, 68° Field of View 1080P Video Recording,Supports Windows Linux
Product details
| Management number | 209075355 | Release Date | 2026/03/29 | List Price | $36.00 | Model Number | 209075355 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
IntroductionUSB Camera, OV5640 sensor. 5 megapixel. Supports UVC protocol.Compatible with Raspberry Pi , Jetson Nano Developer Kit,PCSpecification1.Pixel：500 Megapxixel2.Resolution：2592×19443.Video:15FPS 2592 x 194430FPS 1920 x 108030FPS 1280 x 7204.Sensor：OV56405.DSP ：Automatic white balance(AWB)\Automatic exposure(AEC)\Automatic gain control(AGC)6.Camera Specification：CCD Size：1/4inchAperture（F）：2.8Focus Length（EFL）：3.29mmField of View（FOV）：68°Focus Type: Auto focus (B type), Fixed focus (C type)7.Interface：USB2.08.Image Format：MJPEG、YUV4229.Working Temperature：0°C ~ 50°C10.Dimension：9mm×62mm11.Support OS：Windows、LinuxPackage ContentOV5640 5MP USB Camera x1NoteDevelopment Resources is provided , please contact us if you have any problem .
- OV5640 5MP USB 2.0 Camera Board Compatible with Raspberry Pi ,Jetson Nano ,PC
- 1/4 inch Sensor size,2.8 Aperture ,3.29 mm Focal length
- 68° Field of view,< 1% Distortion,AF Auto-Focus
- 2592 × 1944 Static image resolution ,Support MJPG, YUV422
- CAMERA SIZE--8.5 × 8.5 mm;MODULE SIZE--9 × 62 mm
| UPC | 717186097556 |
|---|---|
| Zoom | Digital |
| Brand | waveshare |
| Color | Black |
| Features | Lightweight |
| Lens Type | Prime |
| Focus Type | Auto Focus |
| Model Name | ov5640 |
| File Format | mjpg,yuv422 |
| Form Factor | Camera Module |
| Item Weight | 0.03 Kilograms |
| Screen Size | 2 Inches |
| Sensor Type | CCD |
| Digital Zoom | 4 x |
| Manufacturer | Waveshare |
| Model Number | OV5640 5MP USB Camera (B) for Pi |
| BuiltIn Media | Camera Body |
| Viewing Angle | 68 Degrees |
| Camcorder Type | Video Camera |
| Shooting Modes | Automatic |
| Maximum Aperture | 2.8 f |
| Minimum Aperture | 2.8 Millimeters |
| Operating System | Windows, Linux |
| Video Resolution | 1080p |
| Flash Memory Type | SD |
| Compatible Devices | Raspberry Pi, Jetson Nano, Personal Computer, Single Board Computer |
| Image Aspect Ratio | 1:1.77:1 |
| Image stabilization | false |
| Maximum Focal Length | 68 Millimeters |
| Minimum Focal Length | 3.29 Millimeters |
| Video Capture Format | MP4 |
| Compatible Processors | ARM-based processors, ARM Cortex-A57 |
| Exposure Control Type | Automatic |
| Are Batteries Included | No |
| Supported Audio Format | AAC, MP3, PCM, FLAC, Dolby Digital/AC-3 |
| Supported Image Format | MJPEG, YUV422 |
| Water Resistance Level | Not Water Resistant |
| White Balance Settings | Auto |
| Connectivity Technology | USB |
| Has Image Stabilization | No |
| Upper Temperature Rating | 50 Degrees Celsius |
| Item Dimensions D x W x H | 0.35"D x 0.35"W x 0.35"H |
| Display Resolution Maximum | FHD |
| Effective Still Resolution | 5 MP |
| Flash Memory Video Speed Class | V60 |
