Waveshare 8-Ch Ethernet Relay Module (B) with Digital Input, Modbus RTU/Modbus TCP Protocol, PoE Port Communication, with Various Isolation and Protection Circuits, Industrial Grade Rail-Mount Case
$61.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by democodigos.pollafutbol.co
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$61.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by democodigos.pollafutbol.co
Free 30-day returns Details
Product details
| Management number | 209076261 | Release Date | 2026/03/29 | List Price | $24.80 | Model Number | 209076261 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- ✅Features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically. Supports DC 7~36V wide range power input and PoE power supply

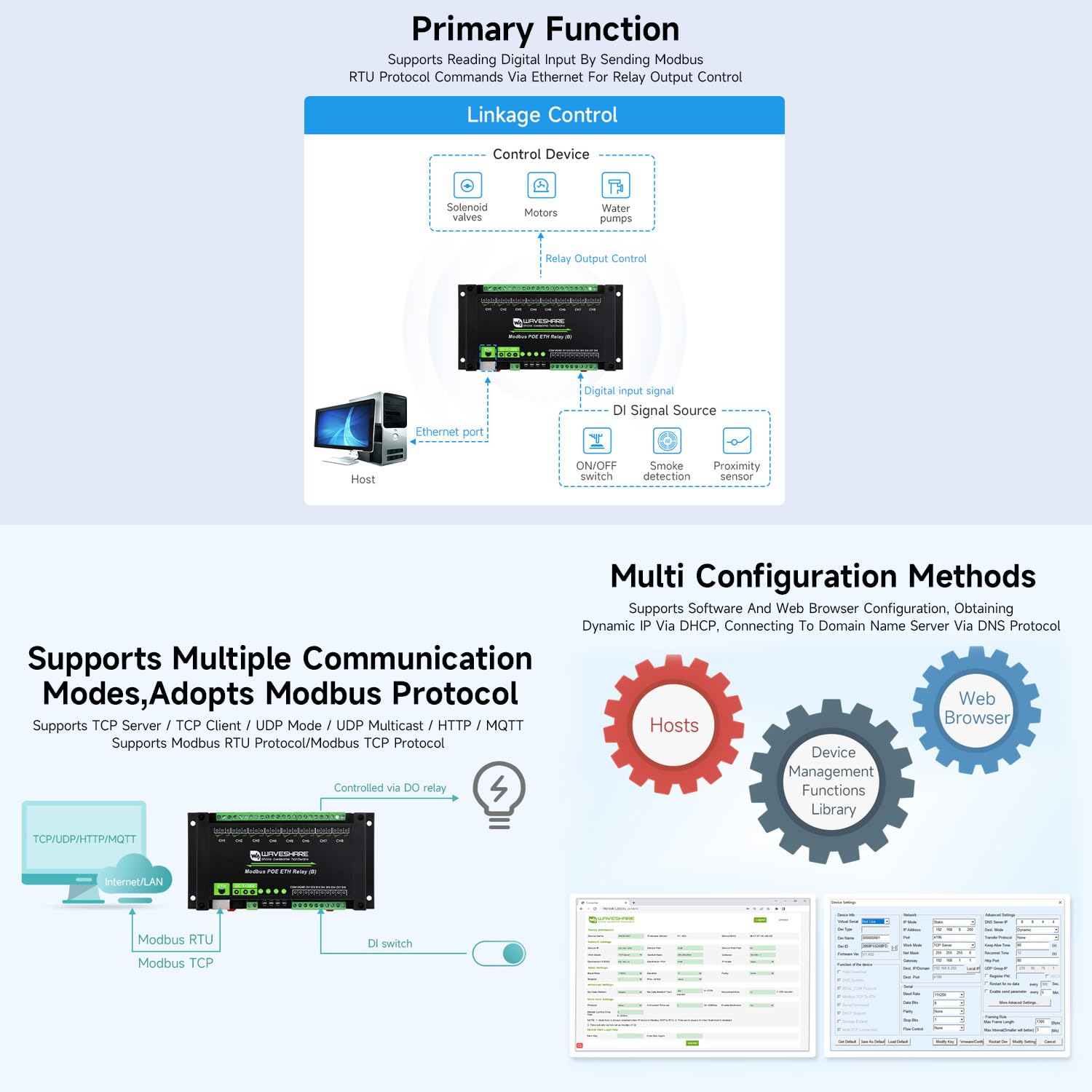

- ✅Supports relay control through MQTT protocol, comes with Alibaba Cloud MQTT application demo. Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit
- ✅Adopts dedicated relay driver chip, with built-in flyback diode protection, for stronger and more stable driving ability.Supports passive and active digital input, with bi-directional optocoupler isolation, built in debouncing algorithm. The relay supports digital input linkage control or toggle control

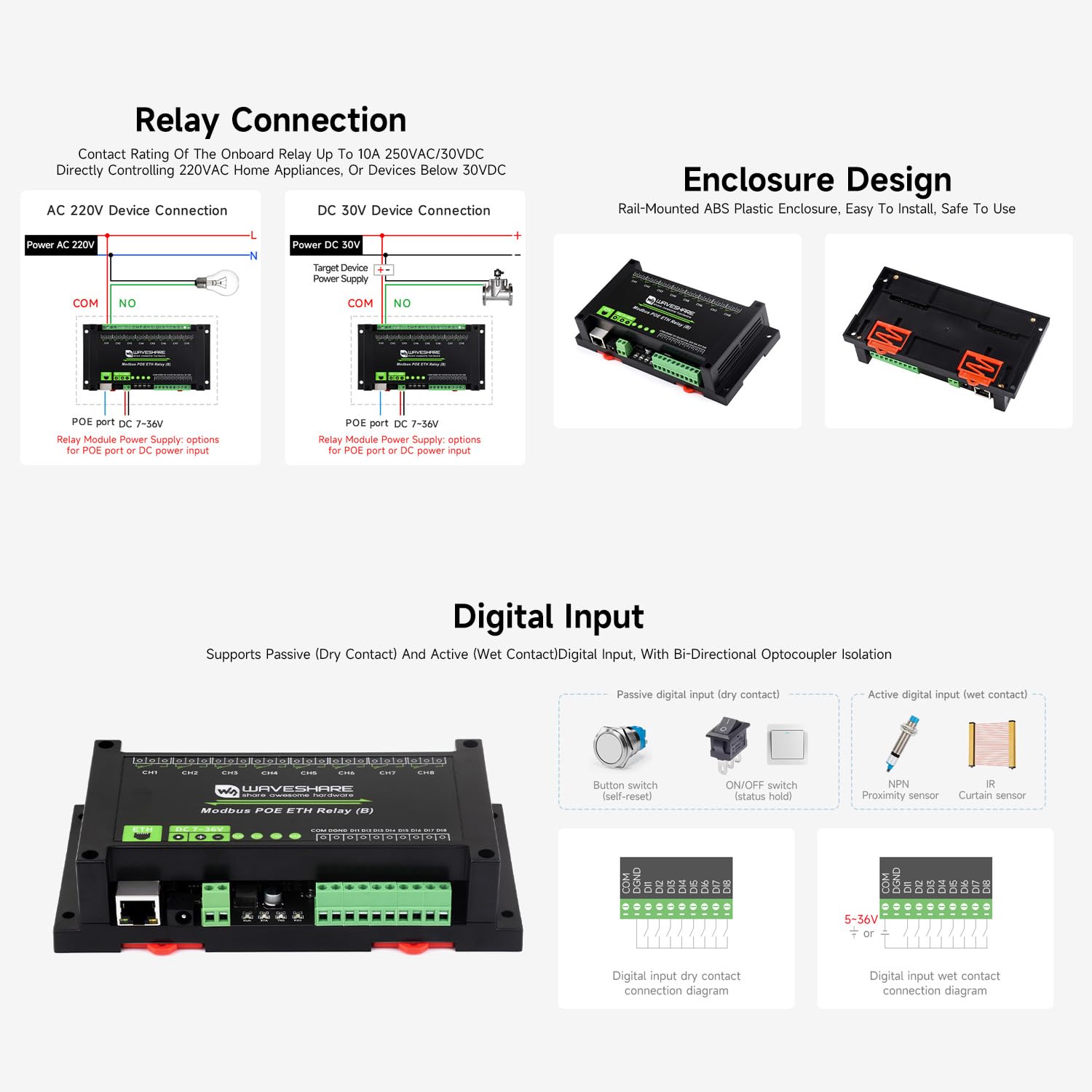

- ✅Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection. High quality relay, contact rating: ≤10A 250VAC/30VDC. Rail-mounted ABS plastic enclosure, easy to install, safe to use. 4 LEDs and Network indicators for indicating the MCU status and signal transceiving status
- ❤️Rich WiKi Resources❤️ We provide official Wiki resources, please contact us for more information.
| Model | Modbus POE ETH Relay (B) |
|---|---|
| Wattage | 70 watts |
| Brand Name | waveshare |
| Part Number | Modbus POE ETH Relay (B) |
| Coil Voltage | 36 Volts (DC) |
| Contact Type | 1no 1nc |
| Manufacturer | Waveshare |

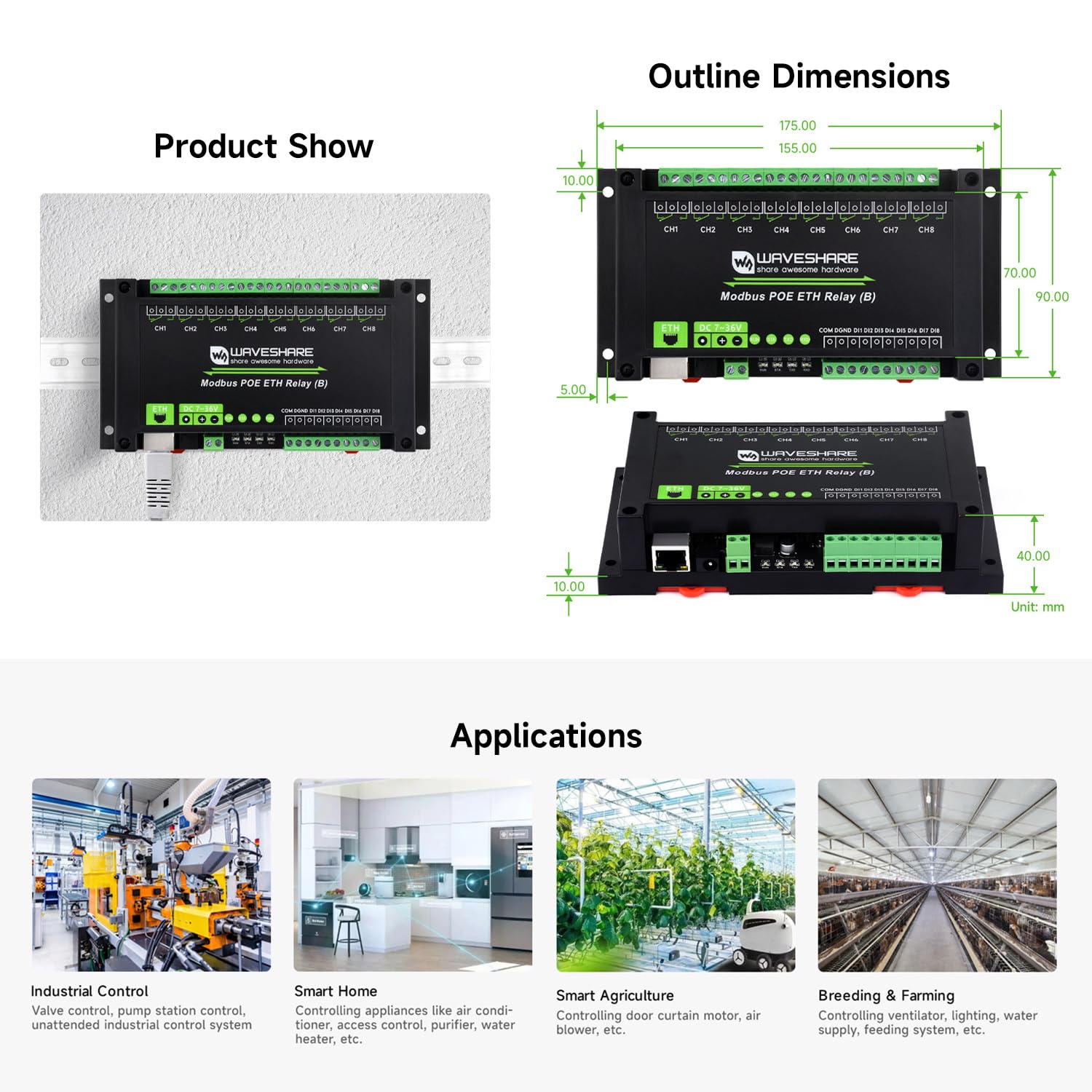

| Mounting Type | DIN Rail Mount, Wall Mount |
| Connector Type | Screw |
| Current Rating | 10 Amps |
| Operation Mode | Automatic |
| Contact Material | Silver |
| Specification Met | IEC/EN 60947 |
| Contact Current Rating | 10 Amps |
| Minimum Switching Voltage | 7 Volts (DC) |
