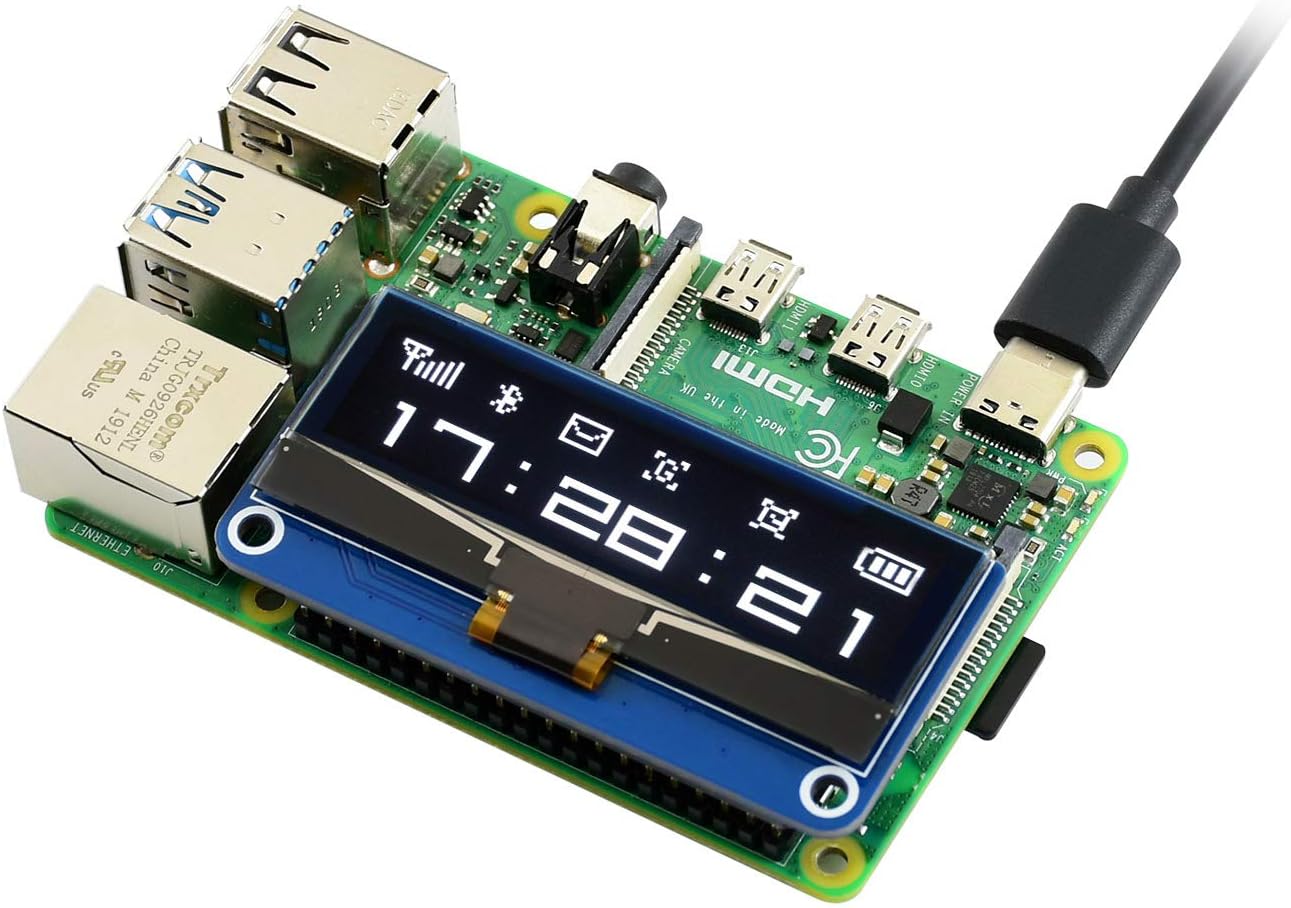

Waveshare 2.23inch OLED Display HAT for Raspberry Pi 128×32 Pixels with Embedded 1305 Driver Communicating via SPI or I2C Interface.
Product details
| Management number | 218203319 | Release Date | 2026/05/03 | List Price | $9.20 | Model Number | 218203319 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Overview This is an OLED display HAT for Raspberry Pi, 2.23inch diagonal, 128×32 pixels, with embedded SSD1305 driver, communicating via SPI or I2C interface. Trying to add a control interface for your Pi? This compact display would be the ideal choice. Features Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano Optional interfaces: SPI (default), or I2C, configured via onboard resistor Brings control pins for host boards like Arduino/STM32. Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32). Specifications: Driver: SSD1305. Interface: SPI / I2C. Display size: 2.23 inch diagonal Display colour: white. Resolution: 128 x 32. Viewing angle: >160°. Power supply voltage: 3.3 V/5 V. Logic level: 3.3 V. Wiki: www.waveshare.com/wiki/2.23inch_OLED_HAT?Amazon PACKAGE CONTENT 2.23 inch OLED HAT x1 RPi screws pack (2 pieces) x1
- This is an OLED display HAT for Raspberry Pi, 2.23inch diagonal, 128×32 pixels, with embedded SSD1305 driver, communicating via SPI or I2C interface.
- Trying to add a control interface for your Pi? This compact display would be the ideal choice.
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- Optional interfaces: SPI (default), or I2C, configured via onboard resistor Brings control pins for host boards like Arduino/STM32
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
| RAM | LPDDR4 |
|---|---|
| Brand | waveshare |
| Series | 2.23inch OLED HAT |
| Hard Drive | Solid State Hard Drive |
| Item Weight | 0.705 ounces |
| Manufacturer | Waveshare |
| Wireless Type | 802.11b |
| Processor Brand | VIA |
| Card Description | Dedicated |
| Operating System | Linux |
| Item model number | 2.23inch OLED HAT |
| Screen Resolution | Oled |
| Package Dimensions | 2.83 x 1.97 x 0.94 inches |
| Hard Drive Interface | Ethernet |
| Standing screen display size | 2.23 Inches |
