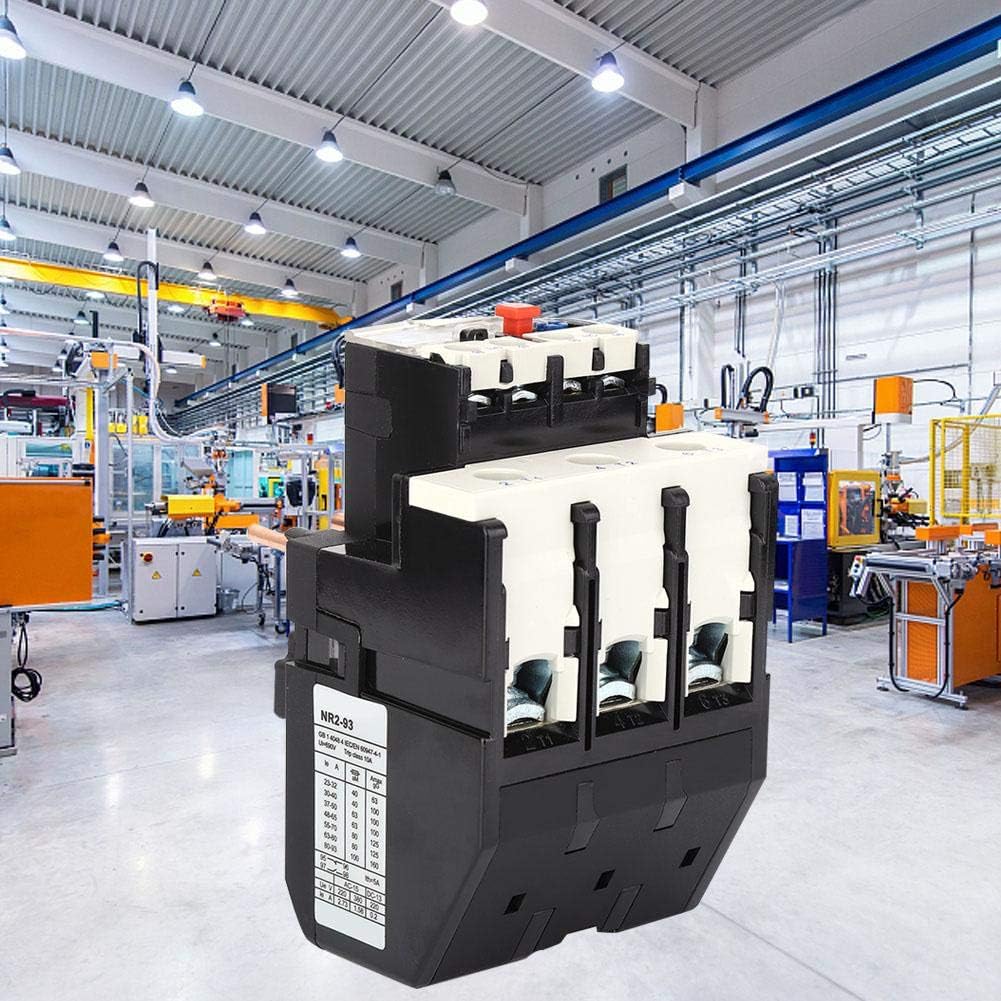

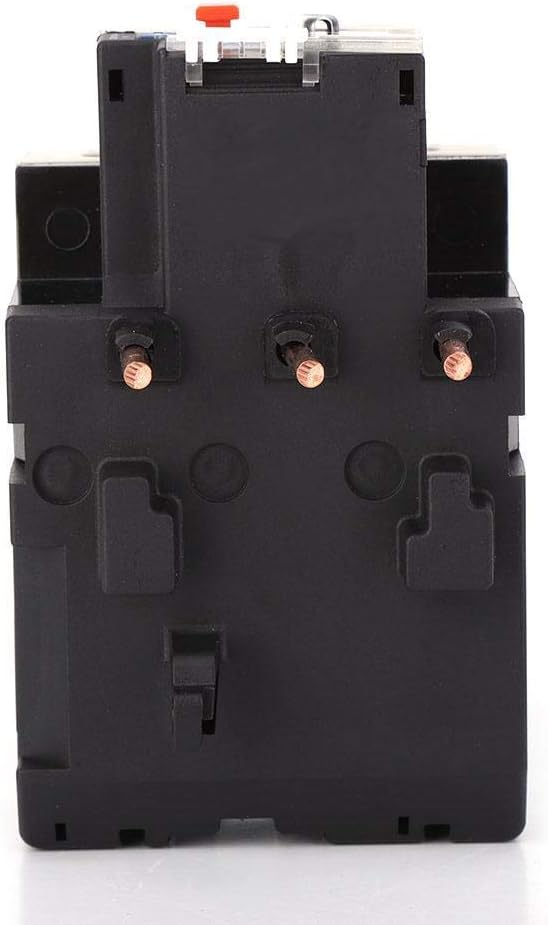

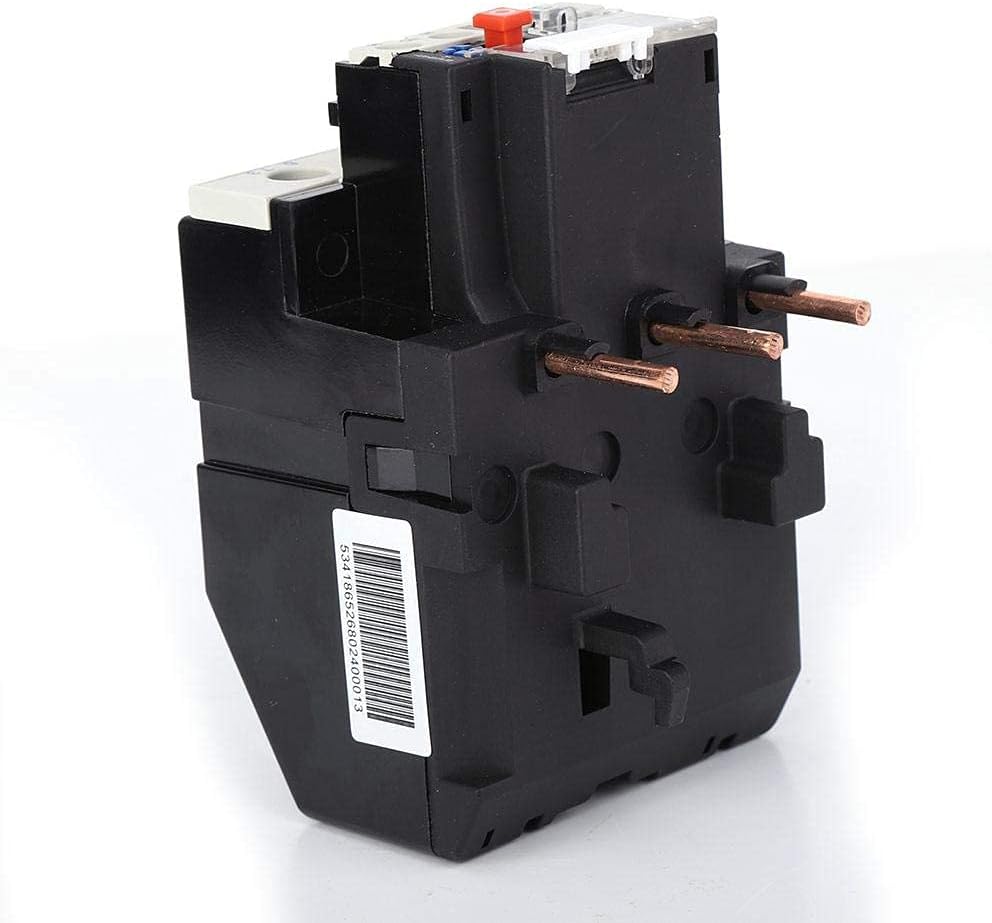

Walfront 3 Phase Thermal Overload Relay, NR2-93, Automatic, 40A, 1NO 1NC
Product details
| Management number | 218082932 | Release Date | 2026/05/03 | List Price | $10.38 | Model Number | 218082932 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification: Item Type: Thermal Overload Relay Power Frequency: 50-60hz Optional Rated Current: 30-40A,37-50A,48-65A,55-70A,63-80A,80-93A Rated Insulation Voltage: 690V Phase Break : Yes Manual and Automatic Reset: Yes Temperature Compensation: Available Tripping Instructions: Yes Test Button: Yes Stop Button: Yes Installation: Plug-in Auxiliary Contacts: 1NO + 1NC AC-15 220V Rated Current A 2.73 AC-15 380V Rated Current A 1.58 DC-13 220V Rated Current A 0.2 Sectional Area: Main Loop4-35, Auxiliary Loop 0.5-2.5 Tripping Level:10A Specification: 40aM 63gG Weight: Approx. 468g Package List: 1 × Thermal Overload Relay
- Suitable for using in power system with rated isolation voltage up to 690V, circuit of 50-60hz.
- Can be used as overload of your or indirect service motor.
- Used for protecting the phase break when the electric motor is overload.
- The relay has different mechanism and temperature compensation.
- With phase break , manual and automatic reset, temperature compensation, trip indication, test button and stop button.
| UPC | 783335885497 |
|---|---|
| Brand Name | Walfront |
| Item Weight | 0.45 Kilograms |
| Part Number | Wal frontuid5z6p3ek-02 |
| Coil Voltage | 690 Volts (AC) |
| Contact Type | Normally Open, Normally Closed |
| Manufacturer | Walfront |
| Mounting Type | Plug In Mount |
| Connector Type | Plug-In |
| Current Rating | 40 Amps |
| Operation Mode | Automatic |
| Contact Material | Silver |
| Specification Met | [Possible Specifications: Ul, Iec/En 60947, 690v Rated Voltage] |
| Included Components | inc |
| Number of Terminals | 2 |
| Contact Current Rating | 40 Amps |
| Maximum Switching Current | 10 Amps |
