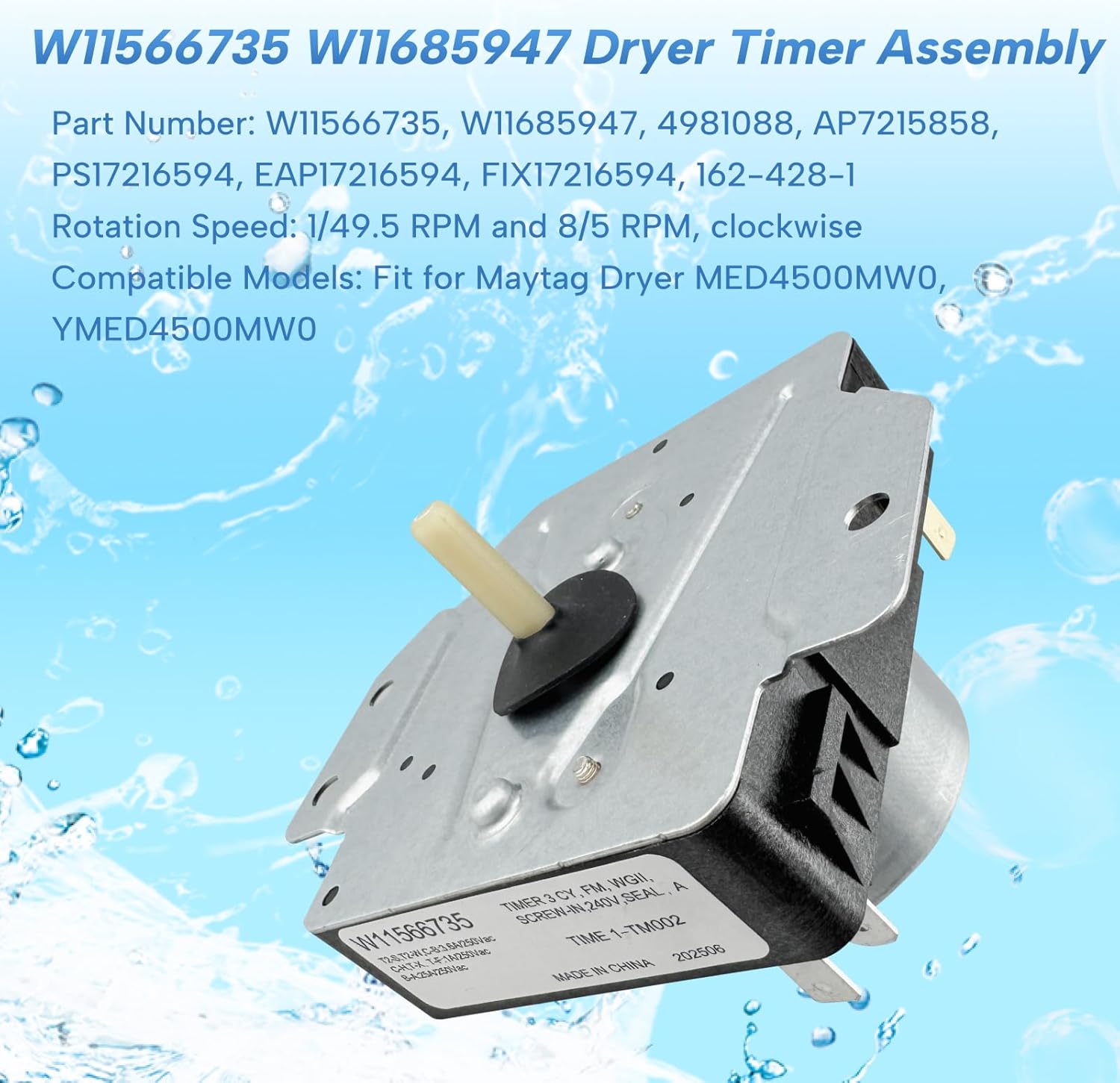

W11566735 W11685947 Dryer Timer Assembly Replacement Fit for Maytag Dryer MED4500MW0 YMED4500MW0 Replaces 4981088 AP7215858 PS17216594 EAP17216594 FIX17216594 162-428-1

Specifications: Part Number: W11566735, W11685947, 4981088, AP7215858, PS17216594, EAP17216594, FIX17216594, 162-428-1 Rotation Speed: 1/49.5 RPM and 8/5 RPM, clockwise Compatible Models: Fit for Maytag Dryer MED4500MW0, YMED4500MW0 Package Includes: 1 × Dryer Timer Assembly Installation: Direct replacement, plug-and-play, no modifications required Function With a 3-position adjustment, it helps prevent clothes from being over-dried or left damp, ensuring energy efficiency and fabric protection. Rotating clockwise at 1/49.5 RPM and 8/5 RPM, it delivers accurate timing to keep your dryer running smoothly. Premium-Grade Durable Construction Built with high-quality metal housing, heat-resistant PCB boards, copper contacts, and sealed gear systems, this replacement timer is designed to withstand daily use and high heat. It resists deformation, cracking, and wear over long-term operation. Installation Instructions Access the Control Panel: Use a screwdriver to remove the screws securing the back panel of your dryer’s control console. Locate the Timer Assembly: Find the existing dryer timer unit connected to the control dial and wiring harness. Disconnect the Old Timer: Carefully unplug the 3-prong flat connector and remove the mounting screws holding the old timer in place. Install the New Timer: Position the W11566735 / W11685947 Dryer Timer Assembly into the same slot, secure it with screws, and reconnect the wiring harness firmly. Reassemble the Panel: Replace the back cover of the control console and tighten all screws. Pro Tip: Double-check your dryer model number to confirm compatibility before installation.

• Perfect Fit: Our W11566735 dryer timer spins Designed to fit for Maytag Dryer models MED4500MW0 and YMED4500MW0 without modifications
• Part Number: W11566735 W11685947 4981088 AP7215858 PS17216594 EAP17216594 FIX17216594 162-428-1
• High-Quality Construction: Made of premium-grade metal, reinforced PCB, copper contacts, and sealed gears that withstand high temperatures and long-term use without deformation or malfunction
• Precise Timing Control: Provides accurate cycle sequencing with 3 adjustable settings, preventing clothes from becoming over-dried or damp
• Reliable Performance: Operates at 1/49.5 RPM and 8/5 RPM clockwise rotation, guaranteeing smooth operation, dependable drying cycles,
