uxcell Square Nose End Mill, 0.5mm Solid Carbide AlTiSin Coated Long Reach CNC Router Bits 2 Flutes Milling Cutter with Extended Neck, 2mm Cutting Length 4mm Shank
Product details
| Management number | 218802971 | Release Date | 2026/05/03 | List Price | $5.56 | Model Number | 218802971 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- End Mill: Cutting Diameter: 0.5mm / 0.02"; effective cutting length: 2mm / 0.08"; cutting edge length: 2mm / 0.08"; shank diameter: 4mm / 0.16"; overall length: 50mm / 2"; cutting hardness: HRC60. Used for groove machining, side milling and finishing.
- Wide Applications: Suitable for cutting stainless steel, carbon steel, malleable cast iron, alloy steel, die steel, tool steel etc. The end mill has an extended neck (long reach) that provides additional reach and clearance for machining deep or hard-to-reach areas.
- Solid Carbide: Made of super fine grain carbide, it has high hardness (HRC92), high strength, and wear resistance. With good milling and cutting performance, carbide can run at higher speed than high-speed steel. The passivation treatment greatly increases corrosion resistance and wear resistance.

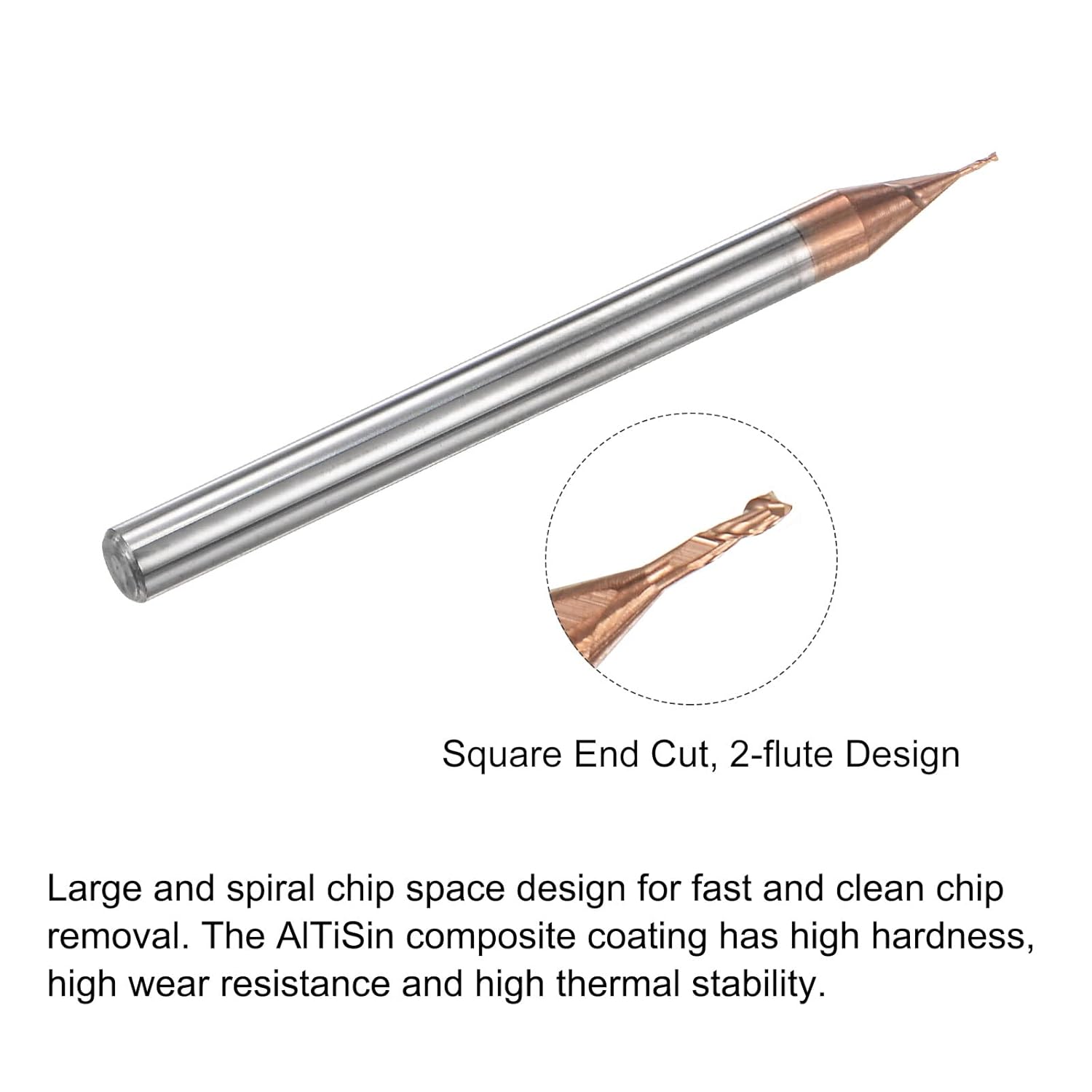

- Features: Features square end cut, 2-flute design, large and spiral chip space design for fast and clean chip removal. Sharp cutting edge provides smooth cutting. The AlTiSin composite coating has high hardness, high wear resistance and high thermal stability.
- Tips: Use on CNC machining centers, CNC machine tools, precision engraving machines and other equipment. The longer the length of the tool clamped by the chuck, the better. Select an appropriate feed rate and cutting speed to improve the tool life and obtain better processing accuracy and performance.
| Model | a22032600ux0173 |
|---|---|
| Shape | Square |
| Cut Type | Finishing, Rounded, Square |
| Size Name | 0.5mm x 2mm |
| Brand Name | uxcell |
| Unit Count | 1.0 Count |
| Part Number | a22032600ux0173 |
| End Cut Type | Square End |
| Finish Types | AlTiSin |
| Manufacturer | uxcell |
| Material Type | Tungsten Carbide |
| Cutting Length | 2 Millimeters |
| Tolerance Held | Precision |
| Cutting Diameter | 0.5 Millimeters |
| Number of Flutes | 2 |
| Number of Cutting Edges | 2 |
