uxcell Ball Nose End Mill 1mm Tip Radius Solid Carbide AlTiSin Coated CNC Router Bits 2 Flute Spiral Milling Cutter HRC55 with 4mm Shank 50mm (2-inch) Length
Product details
| Management number | 218794003 | Release Date | 2026/05/03 | List Price | $4.00 | Model Number | 218794003 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Ball Nose End Mill: Cutting radius: 1mm / 0.04"; cutting dia.: 2mm / 0.08"; cutting flute length: 4mm / 0.16"; shank diameter: 4mm / 0.16"; overall length: 50mm / 2"; cutting hardness: HRC55.
- Solid Carbide Tool: M30 carbide ball nose end mill cutter is super fine grain carbide, with high hardness, wear resistance, and heat resistance. Carbide material with good milling and cutting performance. Carbide can run at higher speed than high-speed steel.

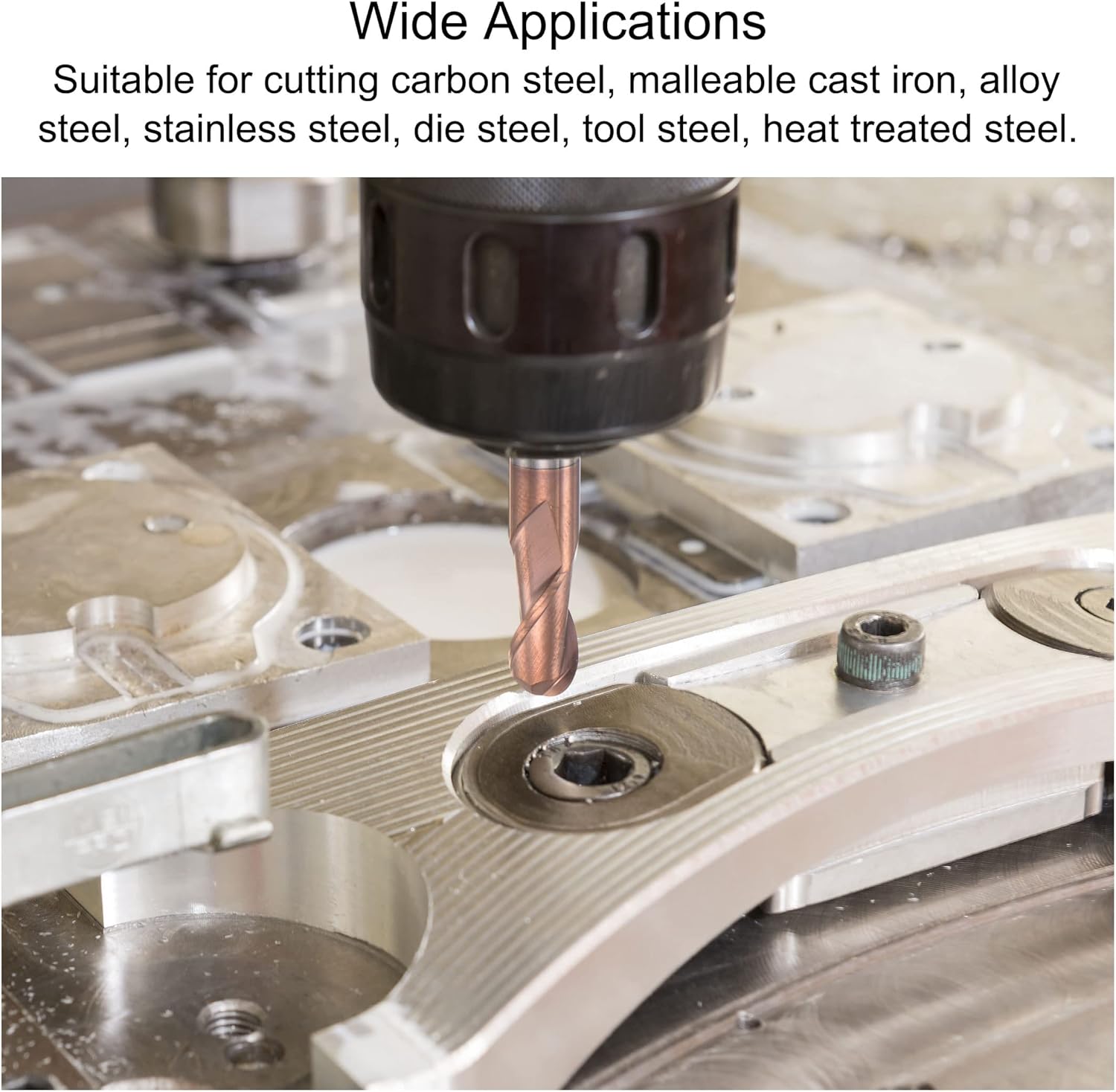

- Wide Applications: Suitable for milling and cutting of carbon steel, malleable cast iron, alloy steel, stainless steel, die steel, tool steel, heat treated steel etc. For slot and hole machining. Use on CNC machining centers, engraving machines and other high-speed CNC machine tools.
- Features: Ball end cut, 2-flute design, spiral chip space design for fast and clean chip removal. Sharp cutting edge provides smooth cutting. The AlTiSin composite coating has high hardness, high wear resistance and high thermal stability.
- Tips: The longer the length of the tool clamped by the chuck, the better. Combined with the material to be processed, select an appropriate feed rate and cutting speed to obtain better processing accuracy and performance.
| Model | a22010500ux0256 |
|---|---|
| Shape | Round |
| Cut Type | Ball End |
| Size Name | 1mmx4mmx4mmx50mm |
| Brand Name | uxcell |
| Unit Count | 1 Count |
| Part Number | a22010500ux0256 |
| End Cut Type | Ball End |
| Finish Types | AlTiSin Coated |
| Manufacturer | uxcell |
| Corner Radius | 1 Millimeters |
| Material Type | Carbide |
| Cutting Length | 4 Millimeters |
| Tolerance Held | Precision |
| Cutting Diameter | 2 Millimeters |
| Number of Flutes | 2 |
| Number of Cutting Edges | 2 |
