USB to RS485 Converter 1200bps to 921600bps Type C 8 Channel Isolated RS485 Serial Port Adapter, USB C Adapter with LED Indicators

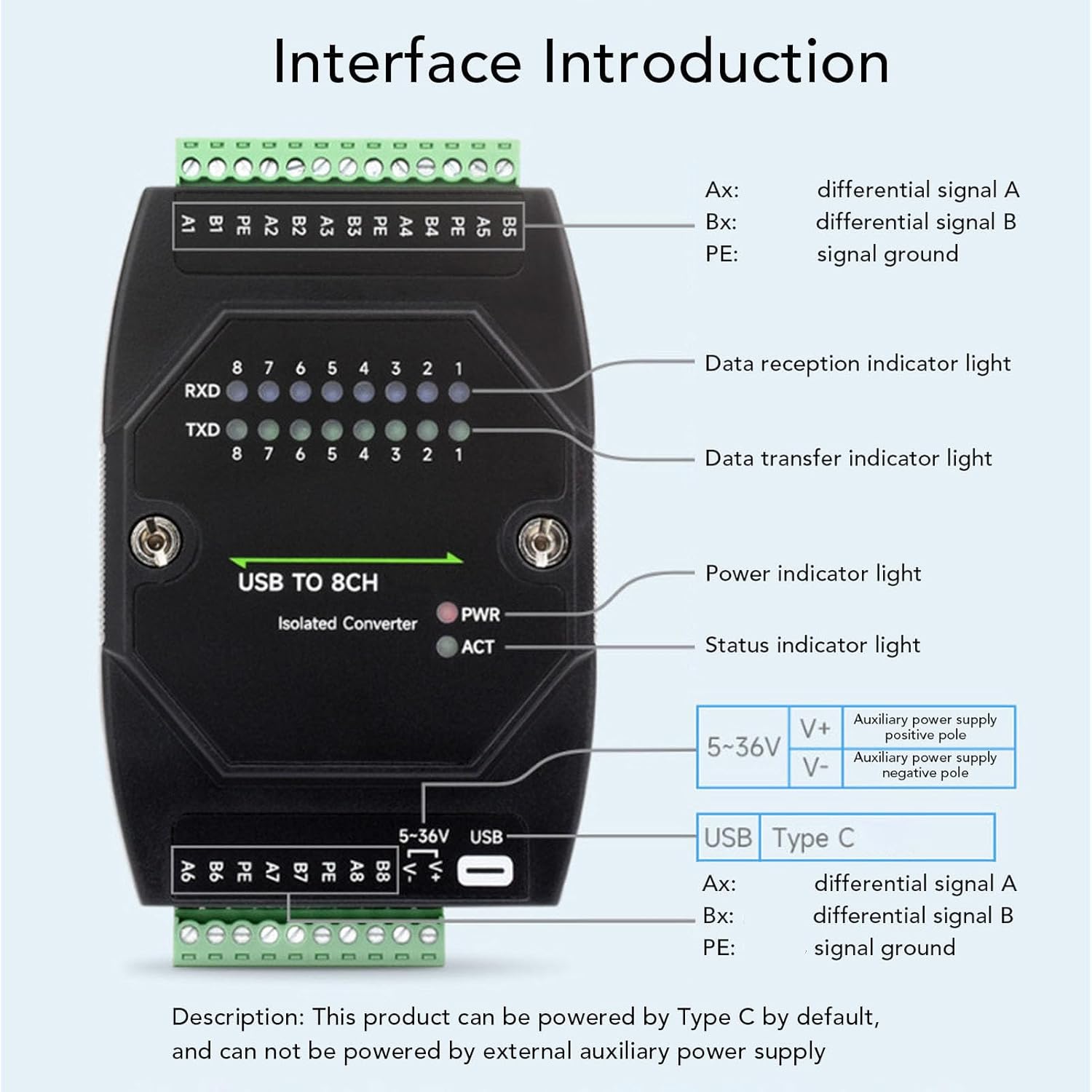

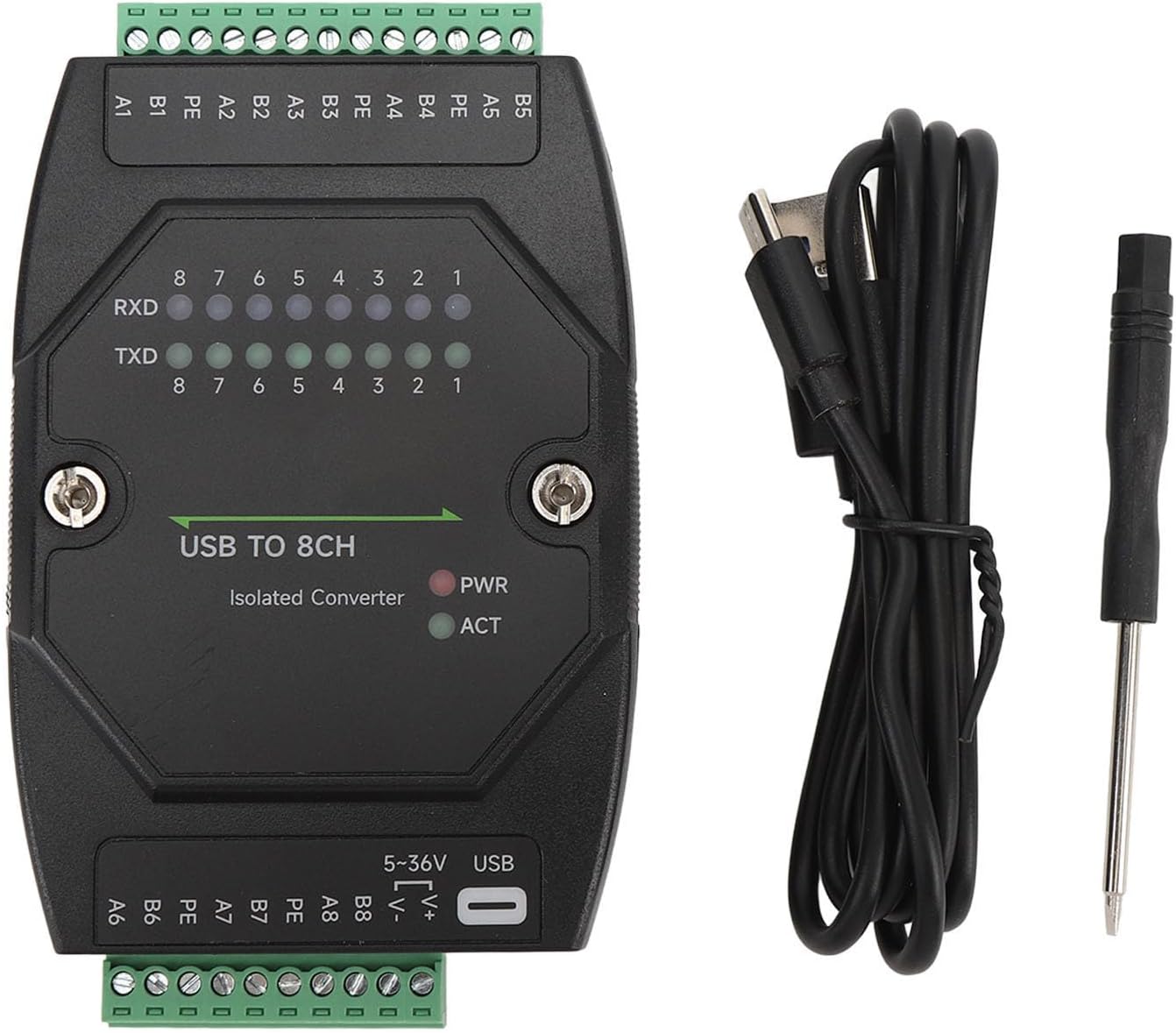

Spec: Item Type: USB to RS485 Converter Material: ABS Operating Voltage: 5V Interface Type: USB C Interface Protecting: 200mA self recovery fuse, isolated output Transfer Distance: About 5 meters Interface Form: Terminal block Directional Control: Hardware automatic discrimination and control of data transfer direction Interface Protecting: Provides 600W surge protecting, and 15KV electrostatic protecting (onboard 120R balance resistor) Transfer Distance: About 1200 meters (in low speed situations) Transfer Mode: Point to multi (up to 32 nodes, recommended to add a repeater for more than 16 nodes) Communicating Speed: 1200bps to 921600bps PWR: Power indicator light, connected to USB, red light on when voltage is detected ACT: Status indicator light, green light on when driver is detected TXD: Send indicator light, green light on when data is sent from the USB port RXD: Receive indicator light, blue light on when data is sent back from the corresponding device port Operating System: for OS X, for , for , ​ 11 10 8.1 8 7 How to Use: Install and use. Package List: 1 x USB to RS485 Converter 1 x ​ 1 x USB Cable

• [Flexible Configuration & Led Indicators] The 120r terminal resistor can be easily modified via jumper cap settings for flexible switching. external led indicator lights provide clear visibility of power status, device configuration, and data transfer/receive status, making troubleshooting and monitoring effortless for users in industrial or commercial settings.
• [Advanced Protection Features] Designed for durability, this converter features a transient voltagesuppressor to suppress surge and peak voltages, preventing static electricity damage. the onboard self-recovering fuse and protective diode ensure stable current and voltage output, protecting against overcurrent and overvoltage, and improving impact resistance for long-term use.

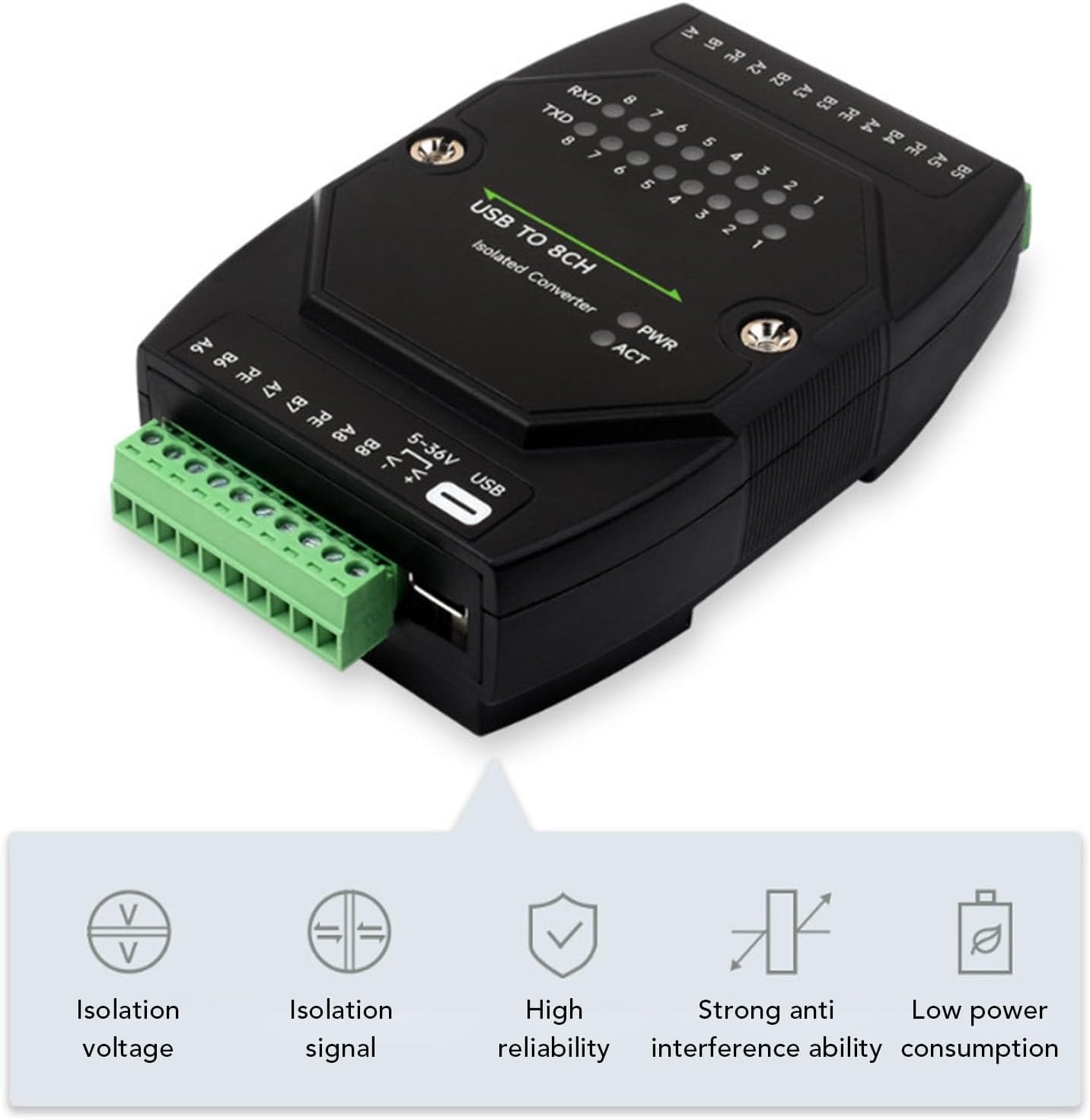

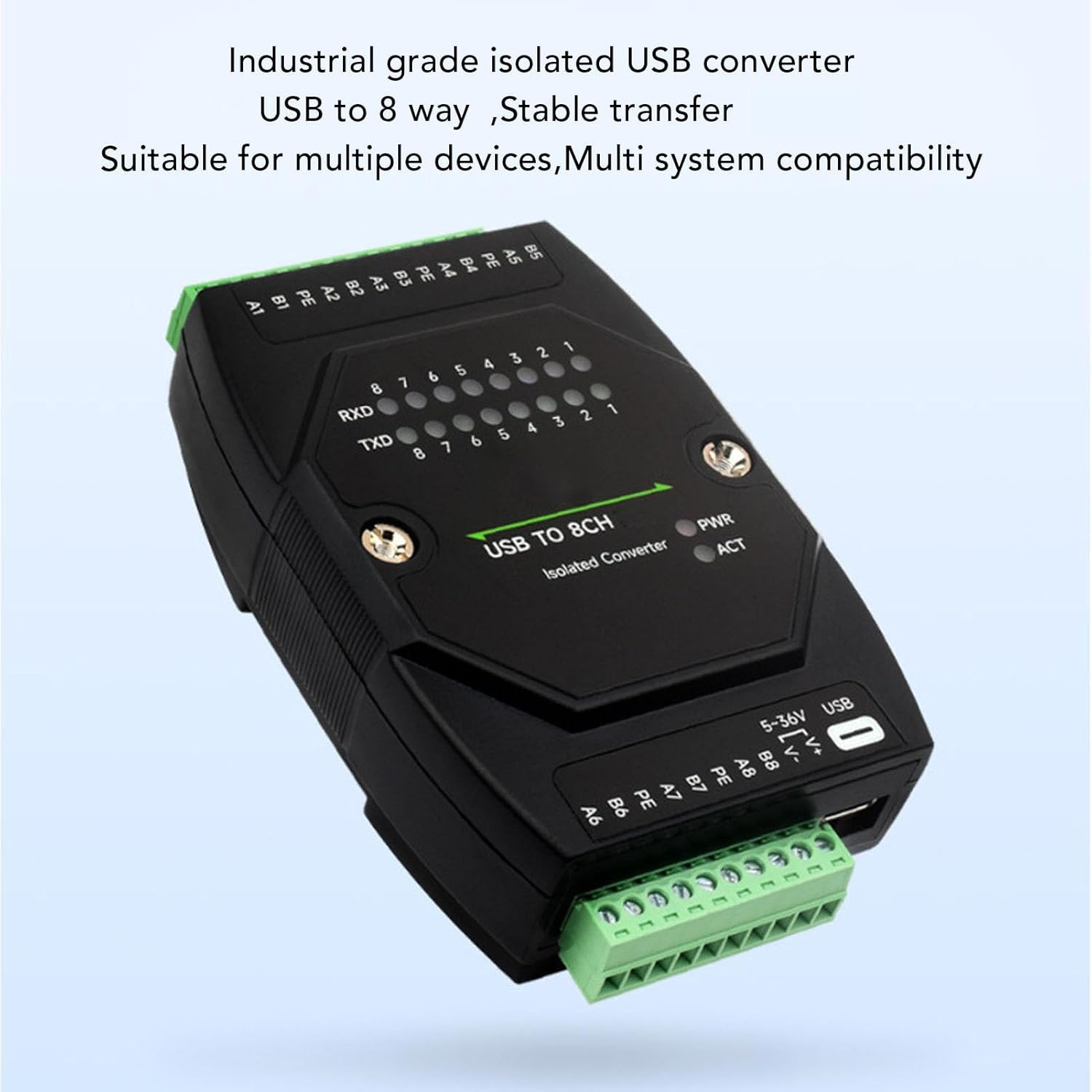

• [High Speed 8 Channel Isolated Interface] This usb to rs485 converter supports 8 channel isolated rs485 communication, allowing seamless connection to multiple rs485 serial devices. with a communicating speed ranging from 1200bps to 921600bps, it ensures fast and reliable data transfer for industrial automation and control systems. the isolated interface enhances signal integrity and reduces interference.
• [Dual Power Supply Options] Equipped with a usb type c directpower supply and a 5v to 36v dc wide voltage auxiliary power supply interface, this converter offers flexible power options. the onboard integrated power and digital isolation provide stable voltage and signal isolation, ensuring high reliability, strong anti-interference, and low power consumption for demanding environments.
• [Sturdy Rail Type Housing] The rail-type housing design supports stacking combination, making installation easy and space-efficient. the abs material ensures durability, while the design enhances safety and usability. ideal for industrial automation, building control, and other applications requiring reliable rs485 communication.
