USB Tester FNIRSI FNB48P USB Tester Voltmeter Ammeter Type-C Fast Charge Detection Trigger Capacity Ripple Measurement with CNC Metal Shell(FNB48P with Bluetooth)
$67.88
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by democodigos.pollafutbol.co
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$67.88
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by democodigos.pollafutbol.co
Free 30-day returns Details
Product details
| Management number | 215312322 | Release Date | 2026/04/12 | List Price | $27.15 | Model Number | 215312322 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Features: 6-digit display: With high precise, 1.77inch clear definition display screen, the data is clearly at a glance. High Precise: The maximum resolution of the display is 0.00001, which could real-time monitor the subtle changes in voltage, current and power during charging. Wire Detection: Dash cable detection able to read dash cable chip information, easy get wire informations.
- Cable Internal Resistance Measurement: Two-step quick measurement of wire resistance with constant current load. Data Record Function: There are totally 10 groups of data can be recorded intelligently. Battery Capacity Calculation: Built-in the calculation formula of battery capacity, to conveniently and fastly calculate the charging efficiency and capacity of the target object.

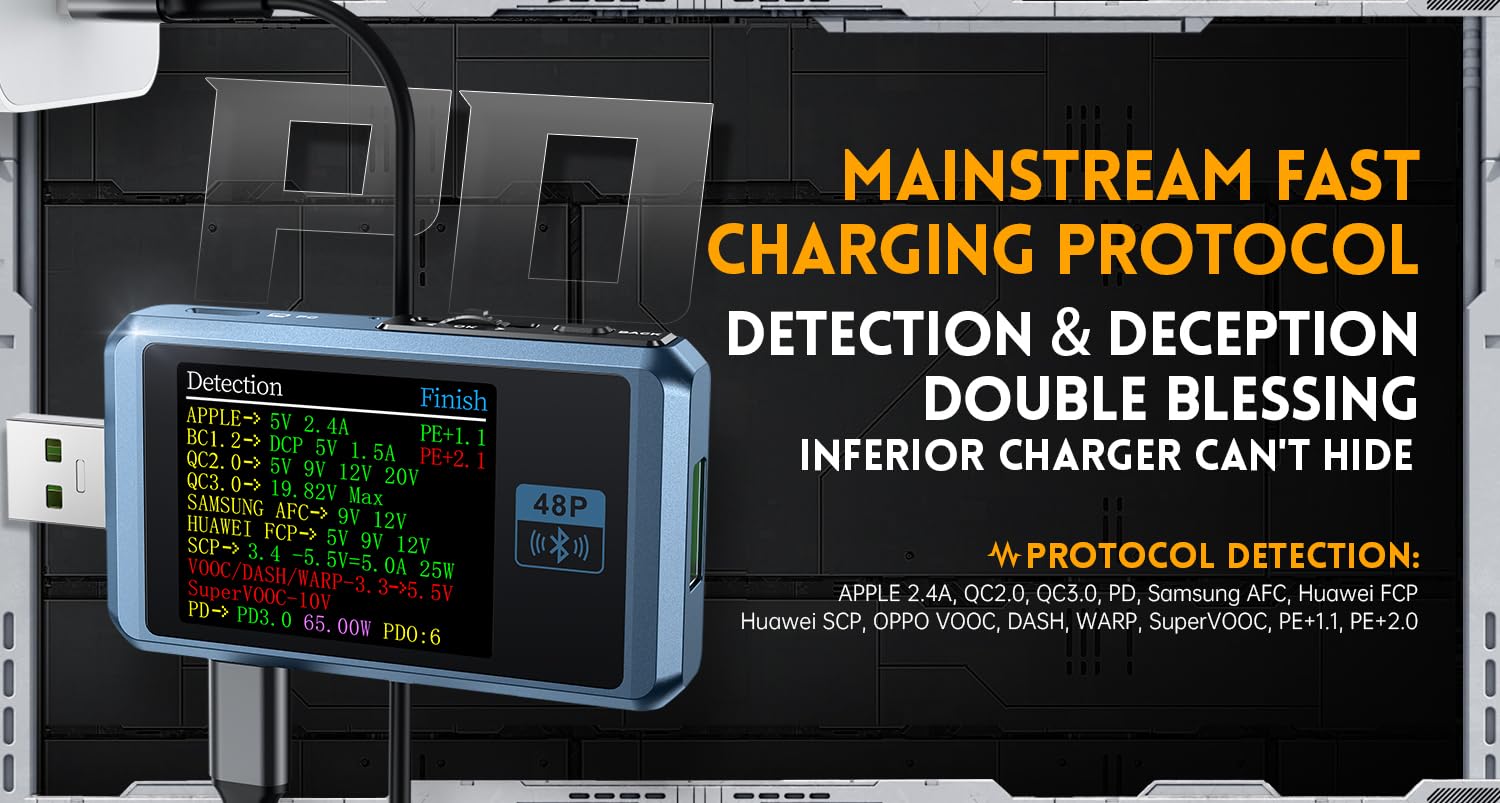

- Four Curves Design: Four curves of voltage current curve, D D-voltage curve, offline record curve, power ripple curve (ac coupling) to meet various needs. Gravities Sensors: Auto flip, equipped with gravities sensors, which supports 180° and 360° automatic flipping (only the simple interface supports 360°). Multi-port Compatible: Compatible with USB, TYPE-C, MICRO interfaces, support various quick charging protocols.
- BT Version(Optional): PC host BT APP driver-free installation, data management, BT APP can be viewed synchronously, and over-voltage and over-current alarms can be set. Specifications: Name: Charging Device Material: metal Type: common version, BT version (optional) Monitor voltage: 4-24V, 0.00001V, ±(0.2%+2 Monitor current: 0-6.5A, 0.00001A, ±(0.5%+2) Monitor power: 0-156W, 0.00001W, ±(0.5%+2)
- Load equivalent internal resistance: 0-9999.9Ω, 0.0001Ω, ±(0.5%+2) D+/D-voltage: 0-3.3V, 0.001V, ±(1.0%+2) Equipment temperature: 1°C(±(1.2%+3))/1℉(±(1.2%+4)) Capacity: 0-999999 .99Ah, 0.00001Ah Energy used: 0-9999.99Wh, 0.00001Wh Cable resistance: 0-9999.9Ω, 0.0001Ω Operation hours: 99d23h59m59m59s, 1s Record time: 999h59m59s, 1s Item size: 77 * 39 * 14 mm / 3.0 3 x 1.54 x 0.55 inches Package size: 100 x 50 x 30 mm / 3.94 x 1.97 x 1.18 inches. Package weight: 200 g / 7.05 ounces
| Color | multicolored |
|---|---|
| Model | QD-FNB48P+Bluetooth |
| Brand Name | QDTimes |
| Style Name | USB Tester |
| Item Weight | 0.5 Kilograms |
| Manufacturer | FNIRSI |
| Power Source | Battery Powered |
| Item Dimensions | 11.81 x 3.94 x 3.94 inches |
| Specification Met | CE, FCC, RoHS |
| Included Components | FNB48P+Bluetooth,manual |
| EU Spare Part Availability Duration | 3 Years |
