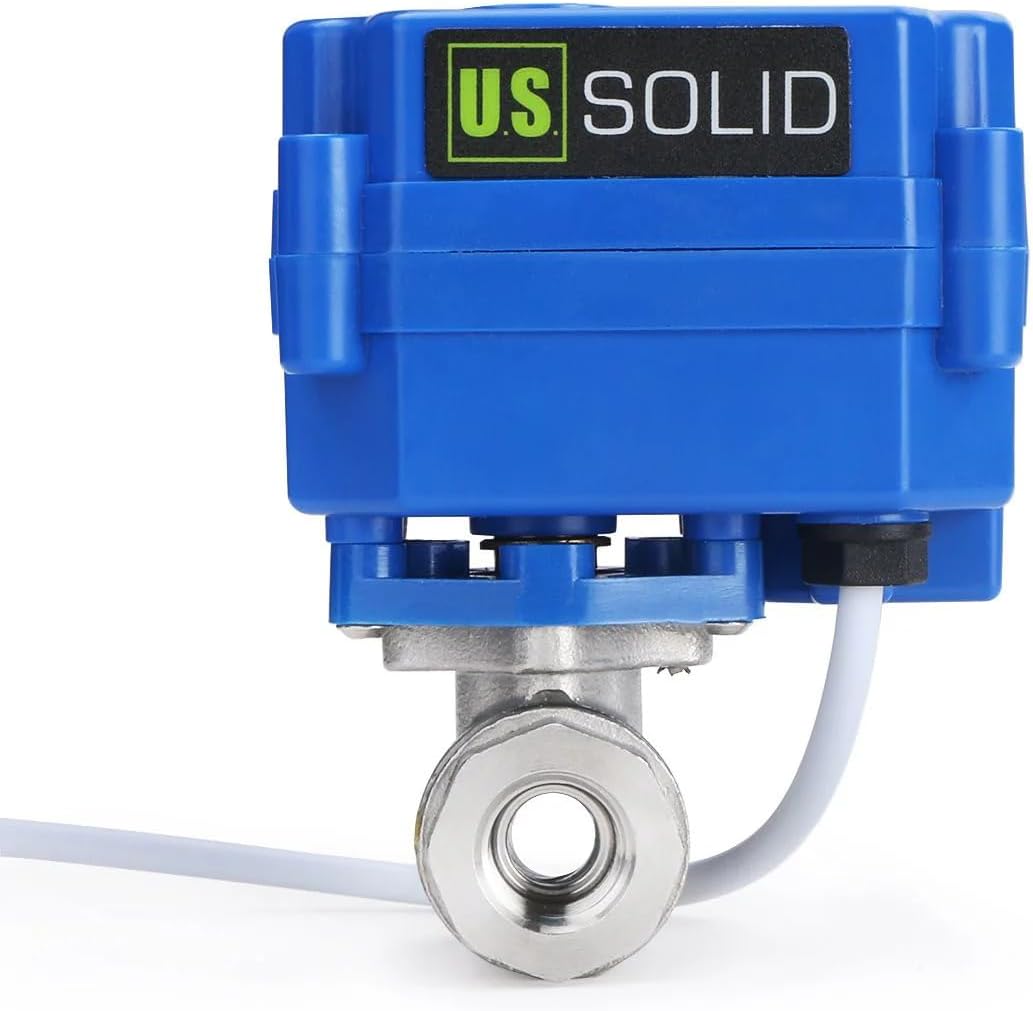

U.S. Solid Motorized Ball Valve- 1/4" NSF Certified 304SS Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup
Product details
| Management number | 219305375 | Release Date | 2026/05/03 | List Price | $14.28 | Model Number | 219305375 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- SAFE AND RELIABLE – Made from SS304 NSF Certified 304SS and NSF certified, this ball valve is safe for drinking water. It has a lifespan of 80,000 to 100,000 cycles.
- NPT THREADING – ¼" NSF Certified 304SS threading, manufactured and measured according to National Pipe Thread (NPT) standards. This standard-port electrical ball valve features a bore slightly less than ¼”, minimizing pressure loss—ideal for home automation projects.
- 9V-24V AC/DC – Operates effectively across the entire voltage range; opens or closes the valve in 3-5 seconds. The limit switch reduces power consumption once the valve is fully open, making it ideal for projects requiring automatic return.
- 2-WIRE AUTOMATIC RETURN SETUP – Simple two-wire connection; the valve largely de-energizes after opening and returns to fully closed if power is removed.
- ALTERNATIVE TO SOLENOID VALVES – Automatically cuts off power once fully open or closed, reducing the risk of overheating. Ideal for projects requiring a valve to remain open for extended periods. OUTDOOR INSTALLATION TIP – If permanently installed outdoors, it is recommended to place the valve under a shelter or inside a protective box to prevent prolonged exposure to rain.
| UPC | 888107083504 |
|---|---|
| Size | 1/4 Inch |
| Brand Name | U.S. Solid |
| Unit Count | 16.0 Ounce |
| Valve Type | Ball Valve |
| Item Weight | 0.26 Kilograms |
| Thread Size | 0.25 inches |
| Thread Type | NPT |
| Manufacturer | U.S. Solid |
| Model Number | USS-MSV00027 |
| Material Type | Stainless Steel |
| Connector Type | Threaded |
| Exterior Finish | Stainless Steel,Steel |
| Item Dimensions | 3.35 x 2.68 x 2.28 inches |
| Number of Ports | 2 |
| Maximum Pressure | 1000 Kilopascal |
| Number of Pieces | 1 |
| Specification Met | nsf certification |
| Inlet Connection Size | 1/4 Inches |
| Inlet Connection Type | National Pipe Tapered |
| Outlet Connection Size | 0.25 Inches |
| Outlet Connection Type | NPT |
| Manufacturer Part Number | USS-MSV00027 |
