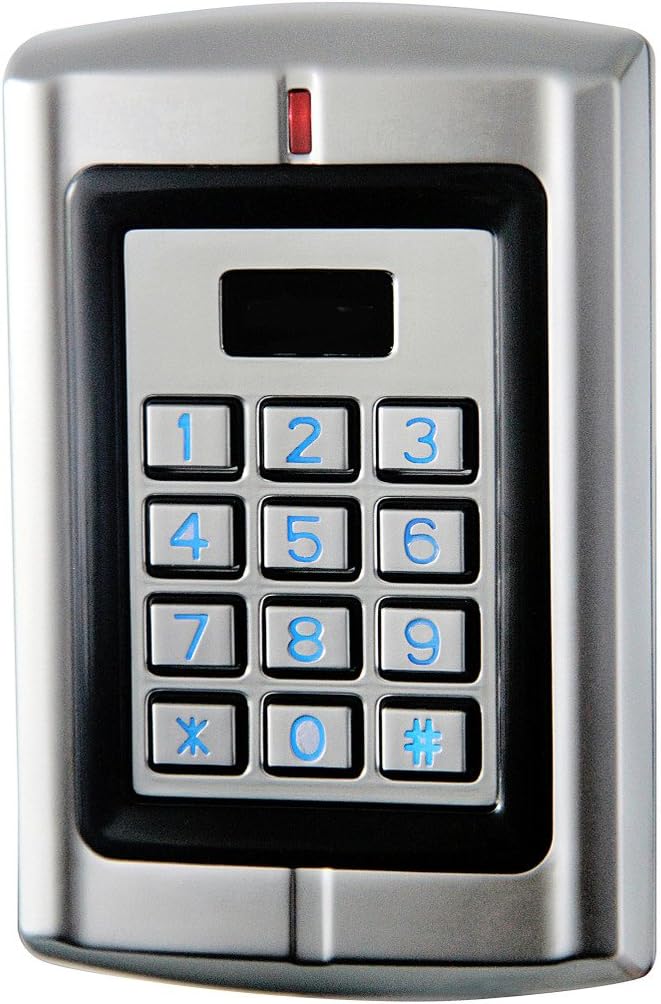

UHPPOTE Metal Shell Waterproof Access Control Keypad Reader with Wiegand 26-37 Interface for 125KHz EM Card

Introduction: This series of products are using the new 32-bit microcontroller ARM core design with powerful functions. They are very stable and reliable. It’s a new generation of multi-function access controller, include Reader mode, Single-door mode, Double-doors mode, Interlock mode, Demo mode etc. All of them could be widely used in office buildings, homes, schools, condominium, apartments, flats, single houses, banks, prisons and other places. Main Features: Very Low Power Consumption (<35mA), long service life and stable performance Application in High-Security Places: Warehouses,,commercial building, banks, villa, prisons, etc Backlight keypad With manager cards for adding or deleting card user easily Wiegand 26-37 bit input & output,can be programmed Protective Properties: IP65 fully-potted Specifications: Operating Voltage: AC/DC10-28V User capacity: 20000 Card Type: 125KHz EM PIN length: 4-8 digits Wiegand Interface: Wiegand 26-37 bit Working mode can be set: Controller mode, reader mode, interlock mode and demo mode Specific reader mode: Customer can set output format Access mode: Card/PIN/Card+PIN User capacity: 20000 Support programming card, enter programming mode fast Self-adaption infrared detection Adjustable Door Relay Time: 1-99s Standby Current: <35mA (Input DC12V) Operating current: ≤100mA (Input DC12V) Card Read Rang: <5cm Operating Temperature: -40℉~140℉ Operating Humidity: 0-95% Lock Output Load: 1A Alarm Output Load: 3A Antistatic: 15KV Environment: Conforms to IP65 Wiring Length: 35.73-39.37in Dimensions: L5.04xW3.22xH1.1(in)Package: Digital Keypad: 1PCS User Manual: 1 PCS Screw Driver: 1 PCS Rubber Bungs: 4 PCS Self Tapping Screws: 4 PCS Diode: 1PCS

• ★ Card Type: 125 KHz EM card. Wiegand Interface: Wiegand 26-37 bit.
• ★ The “#” key can be used as doorbell button.
• ★ IP65 waterproof keypad and proximity card reader in one device.
• ★ Designed for outdoor environments with a sealed, weatherproof design allowing you to easily mount anywhere.
• ★ Protects from unwanted entry with rugged vandal-resistant backlit metal enclosure.
