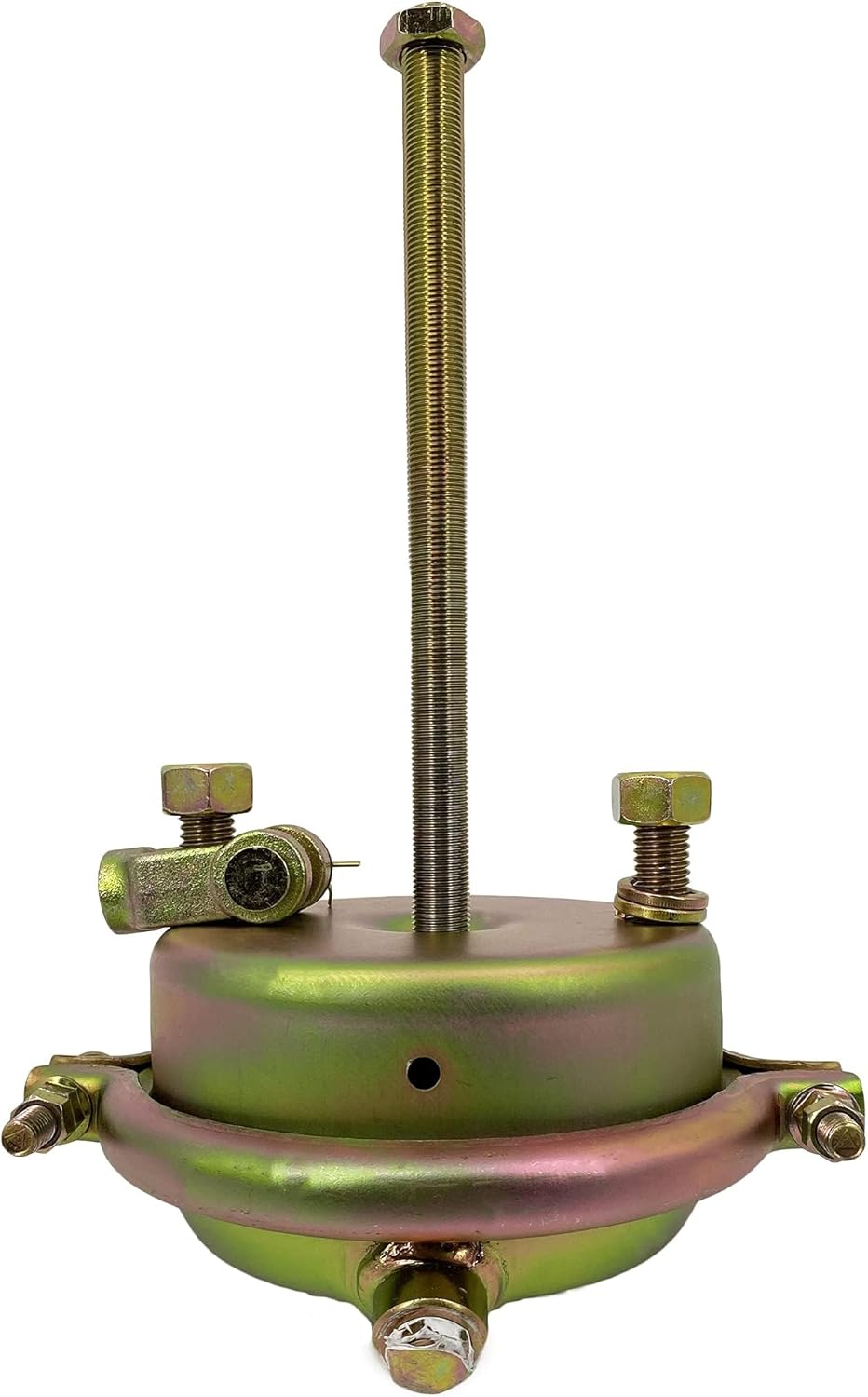

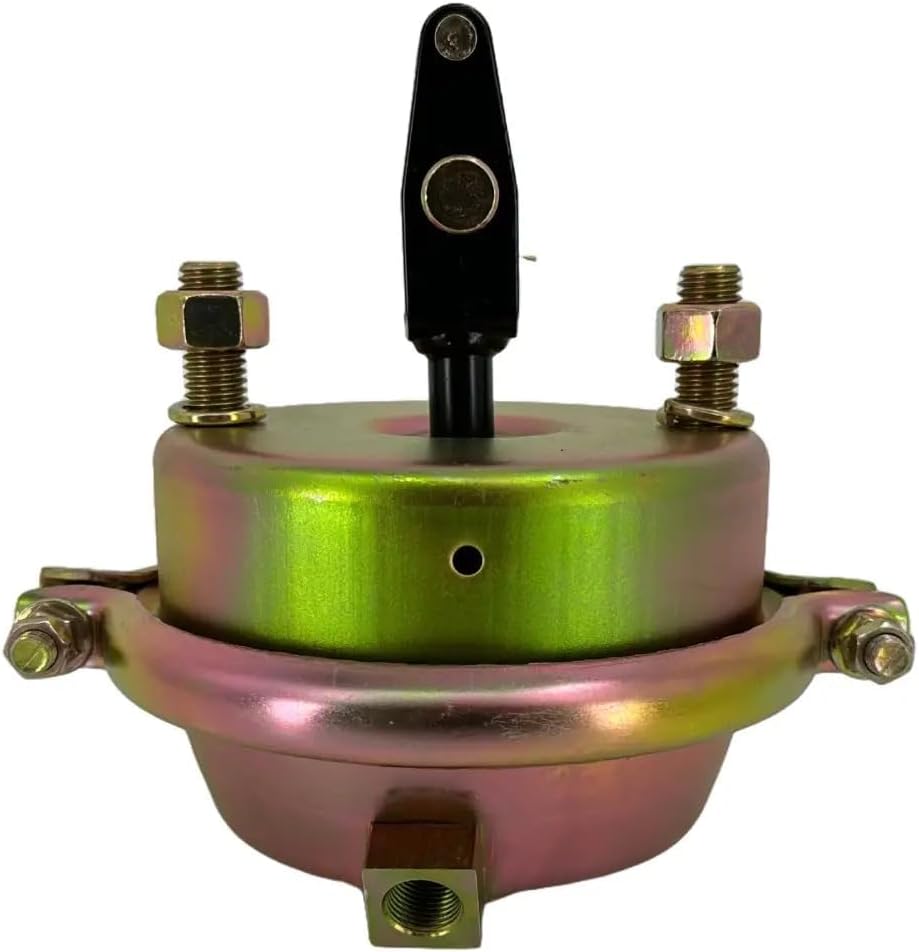

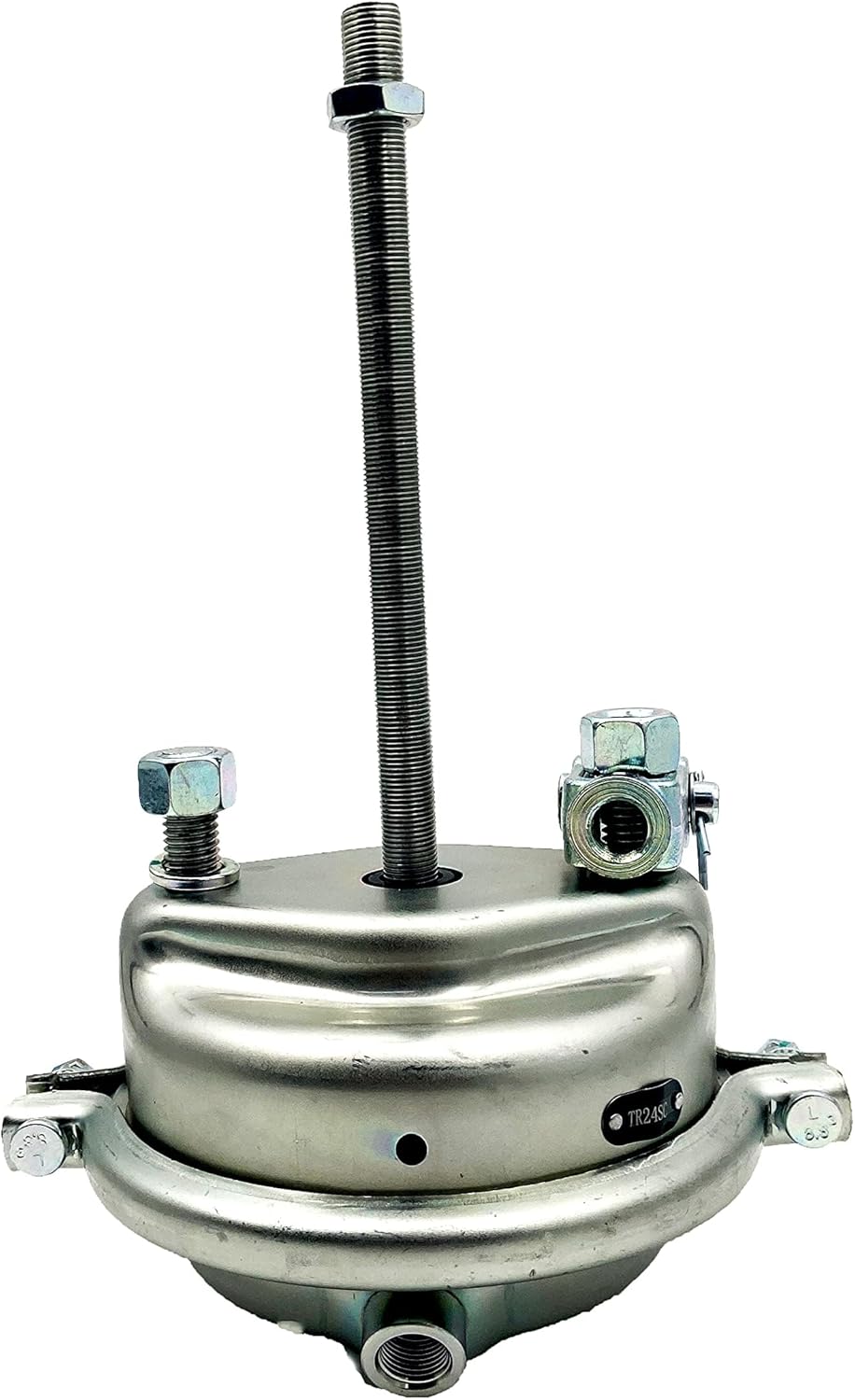

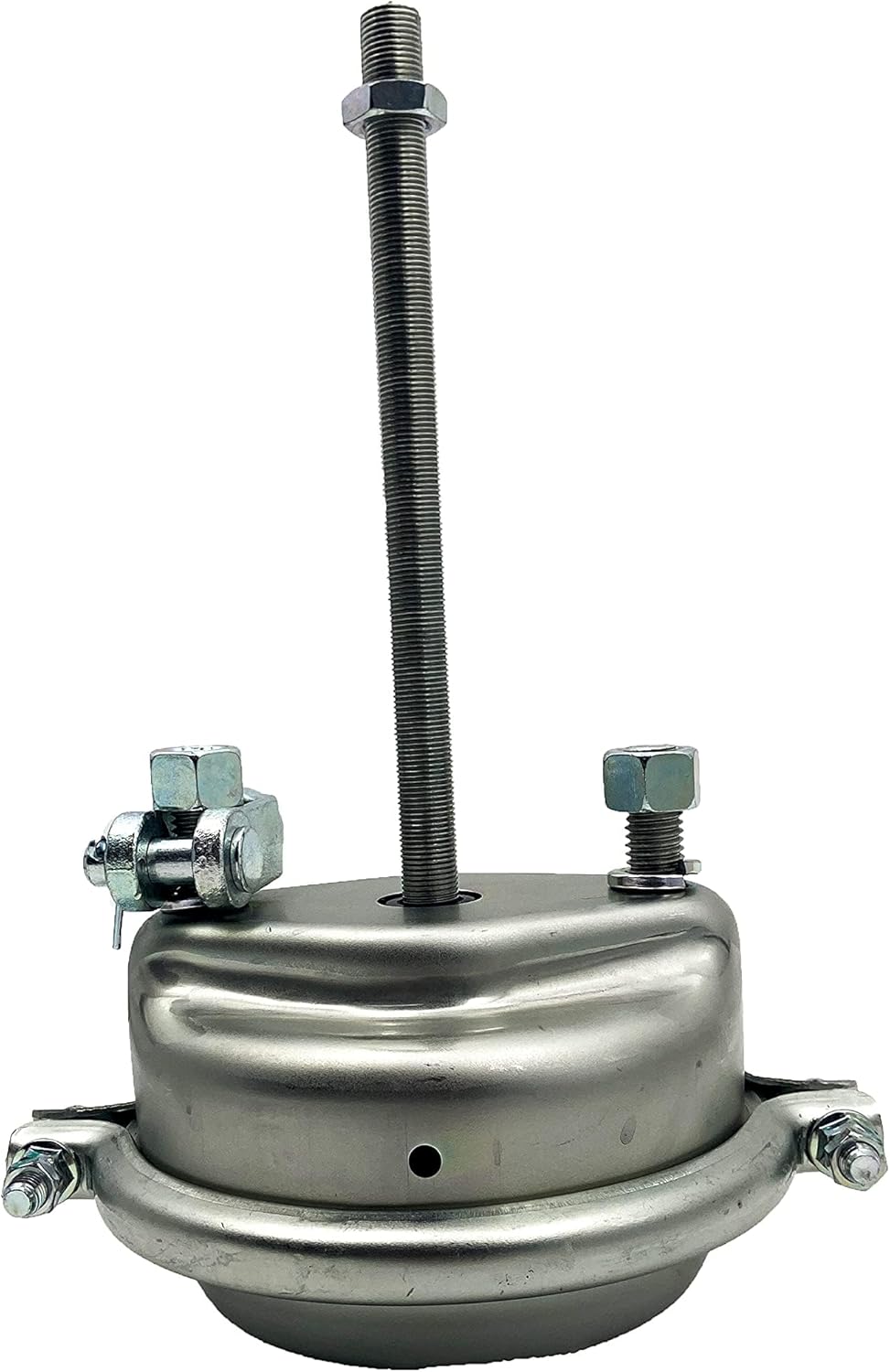

Type 24 Service Brake Chamber Service 2.25" Stroke for semi Truck Trailer Replaces Bendix 800825 802986 236667 288808 Tectran 150-240 150240 Mack 19QE486

Type 24 Service Brake Chamber Service 2.25" Stroke for semi Truck Trailer Replaces Bendix 800825 802986 236667 288808 Tectran 150-240 150240 Mack 19QE486

• TYPE - Air Brake Chamber Service Type 24 T24
• REPLACEMENT - BENDIX 2800825 802986 236667 288808 // BWP M458 // EUCLID E-BC24S // MIDLAND-GRAU KN36240 // NEW STAR S-9815 // PAI HSC-0224-100 // TECTRAN 150-240 // WAGNER AC22380 AC22381
• SPECS - Actuator Type Size: 24 Stroke Type: Standard // Available Stroke: 2-1/4", 57mm // Length from mounting bracket to end of Spring Housing: 3-3/4", 97mm // Dimension at Service Clampband: 9-3/8", 239mm // Stud Spacing with 5/8-11 UNC studs: 4-3/4", 120.7mm // Pushrod Length from face of Service Housing: 10-1/4" // Pushrod threads: 5/8"-18 UNF // Service Clampband position: 0 degree Air Port position: 90 degree Weight: 8.6 lbs. , 3.9 kg.
• FEATURES - Steel Pressure Housing; Powder coated with resistance welded air ports // World Class Diaphragm; High quality rubber compound, resistant to heat and cold // Sturdy Service Housing; Powder coated for corrosion resistance; Flat bottom with 10 gauge steel // Self-piloting Dust Shield
• WARRANTY - 1-Year Unlimited Mile Warranty - includes assurances about the quality of the item, as well as a promise to provide replacement if something goes wrong within a set amount of time.
