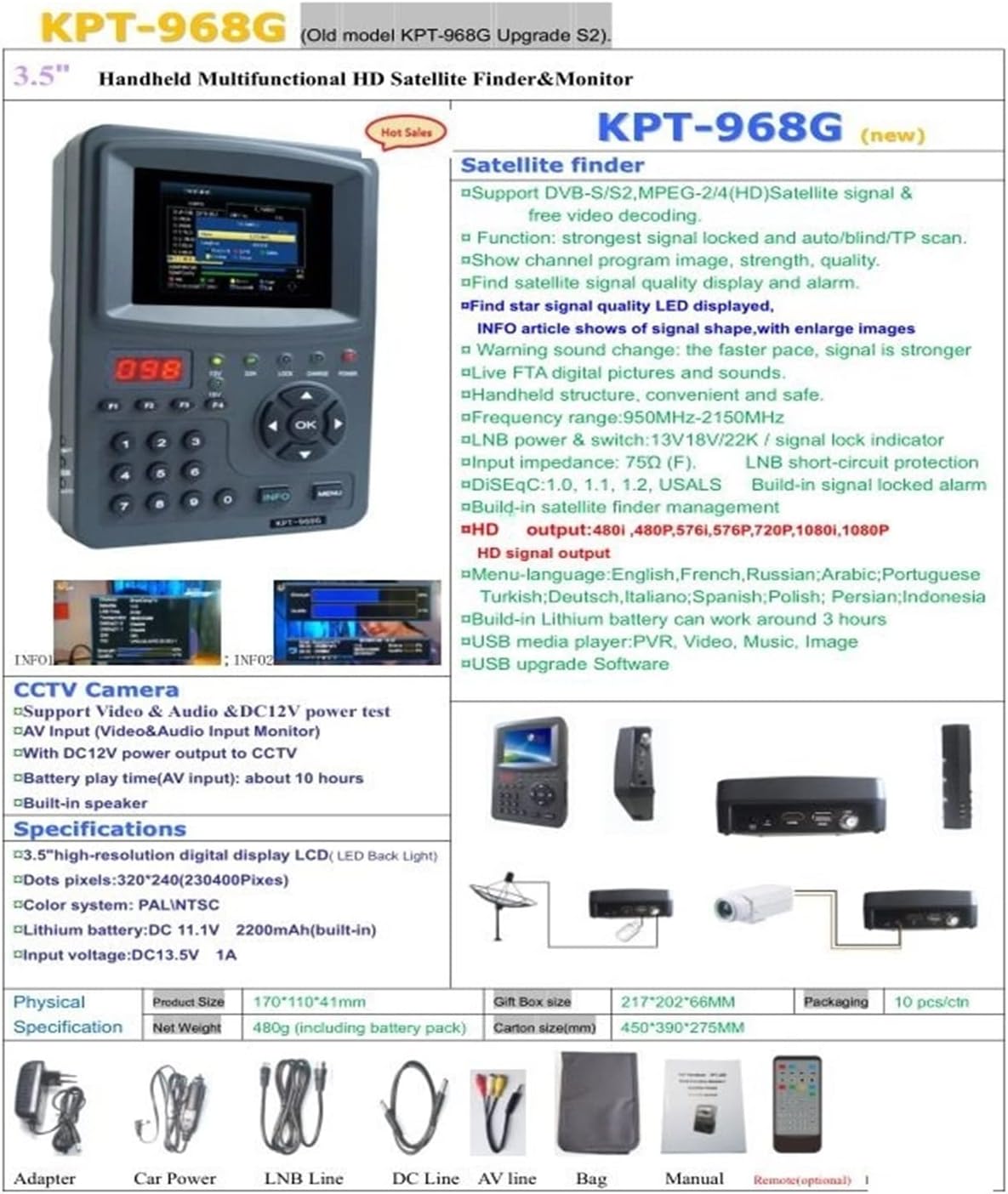

TV Signal Finder Meter, Digital Satllite Finder 3.5Inch TFT LED Handheld Multifunctional Satellite Finder&Monitor KPT-968G,for Adjusting Sat TV Dish

Accessories1. 13.5V DC adapter 1piece; 2. Bag 1piece;3. LNB(F Quick ) 1piece;4.LNB fast connection(F fast line) 1piece;5. Car Power 1piece(optional); 6.DC to DC 1piece(optional);7.BNC to RCA 1piece(optional).SpecificationTFT LED 3.5"(89mm)Display size:73*51mm.Dots pixels:320*240(230400Pixes).Menu language:Chinese/English /French /Arabic/Turkey/Russian.LNBinput : F type male head. Input impedance: 75 (F).Satellite signal video decoding: DVB-S.Satellite signal display test:ABS-S,CBS-2,DVB-S2 signal alarm and signal display.Frequency range:950MHz-2150MHz Signal level:-65dBm~-25dBm.LNB Power supply:13/18V,max400mA LNB Switch control:22KHz.DiSEqC:1.2 edition and1.0 edition Threshold:4.1dB.Demodulation chip:QPSK(SCPC and MCPC compatible).Symbol rate:2Mbps~45Mbps . System processor:32bit processor(200MHz)SDRAM:16Mbyte . FLASH:4Mbyte Video:MPEG-2 Main Level .Rate:up to 15M bits/s Image analysis:720*576,720*480 . Voice patterns:single sound channel Sampling rate:32,44.1 and 48KHz .Color System: PAL\NTSC Lithium battery:DC 11.1V 2200mAh(built-in). Input voltage:DC13.5V 1.5A Output voltage:DC12V.Dimensions:110*170*41mm Weight:440g (including battery pack).Product DescriptionSatellite finder meter 35inch KPT968G TFT DVB-S2 Handheld ABS-S CBS-S Signal sat finderA. Support AV voice/video input and output , with DC12V power output,(use of camera).B.Signal quality displayed LED digital data, the sun more clear view.C.New INFO function, grace a INFO for parameter information, again is article shows of singnal shape,with enlarge imagesD. Signal lock lamp,13 V / 18 V output indicator and the 22 V switch state indicatorE.Built-in LNB feeder short circuit protectionF.New hum warning, beep ring with signal strength changes, also can be the sound j

• 35inch handheld multifunctional monitorsatellite finder is a product for the installation of satellite TV test tools.
• Set the satellite TV signal and image shows test radio television, monitoring function.Using TFT LCD display image,LED backlighting with low power consumption.Built-in large capacity and high-performance lithium batteries for the integration of high-tech electronic products.
• Low power consumption LED / high-resolution digital display TFT LCD.
• Built-in 2200mAh Li-lon battery, do not need an external power supply,
• working time is about 3-4 hours,AV output and input function.
