| Management number | 218084503 | Release Date | 2026/05/03 | List Price | $9.20 | Model Number | 218084503 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

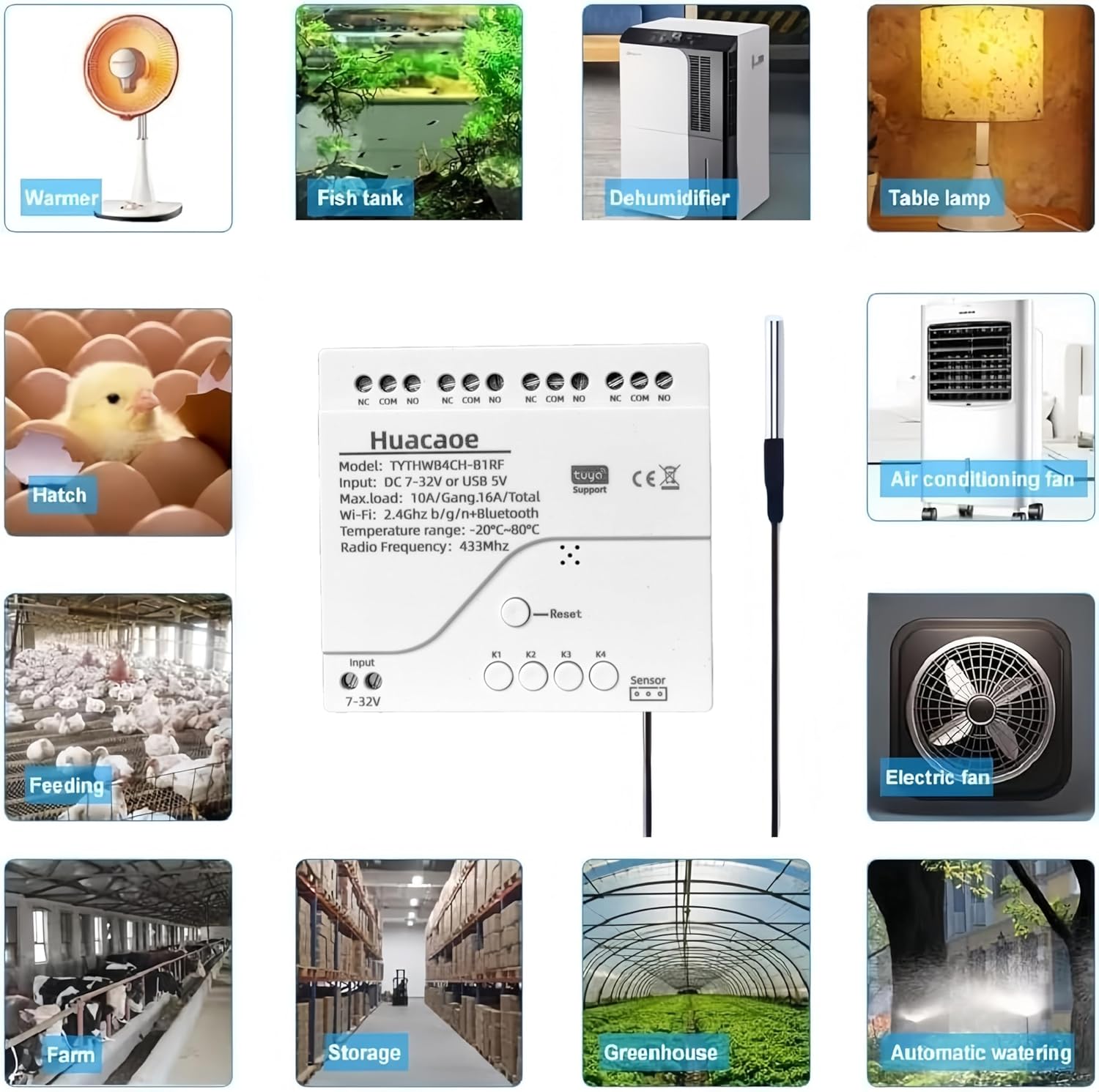

Product description Power supply input voltage:USB 5V or DC 7-32V,it's clean contact passive output,input voltage just power the board,without current go through the board,so without voltage at output Power <1W, and quiescent current:80mA Cutover current<10A/Channel.total 4 channel <16A 10A Relay Model Working Temperature: -20 to 80 degree Working Humidity: 5% to 90% RH Wireless Standard: Wi-Fi 2.4GHz b/g/n Security Mechanism: WEP/WPA-PSK/WPA2-PSK Material: RF-ABS Connector: Universal Include 1m AM2302 High Sensitive temperature and humidity sensor ,measuring range:-40~80 °C,opeating voltage:3.0-5.5V,length 1m Functions: Remote ON/OFF: Turn electrical devices on/off from anywhere,when the temperature of enviroment fall within the rang,it will automatically turn on/off appliance ans support presetting range of temperature,you can also monitor daily power consumption in real time by tuya smart life app Network Support: Control electrical devices over Wi-Fi or 2/3/4G mobile network Voice Control: Works perfectly with Amazon Alexa Extra bluetooth and RF function,default wifi remote,once configured with tuya app,if the device is offline,you can control it with phone bluetooth by tuya app in available distance,support fixed code 433Mhz RF Tips: Huacaoe Smart wifi switch only support 2.4G WIFI router and 2/3/4G mobile network, 5G router is not available.When pairing,please put the switch close to your router. Please do not exceed the maximum load current of 10A,please use contactor when output appliance with high power or generator Package Included 1pcs tuya wifi temperature sensor controller*1pcs 1m temperature humidty sesnor cable 1*Instruction
| Size | 4CH 12V Temperature |
|---|---|
| Color | White |
| Item Weight | 5 ounces |
| Part Number | TYTHWB4CH-B1RF |
| Manufacturer | Huacaoe Technologies Ltd |
| Item model number | TYTHWB4CH-B1RF |
| Batteries Included | No |
| Batteries Required | No |
| Product Dimensions | 2.95 x 2.87 x 0.79 inches |
| Included Components | 1 channel wifi dry contact relay and 1m DS18B20 Temperature probe |
