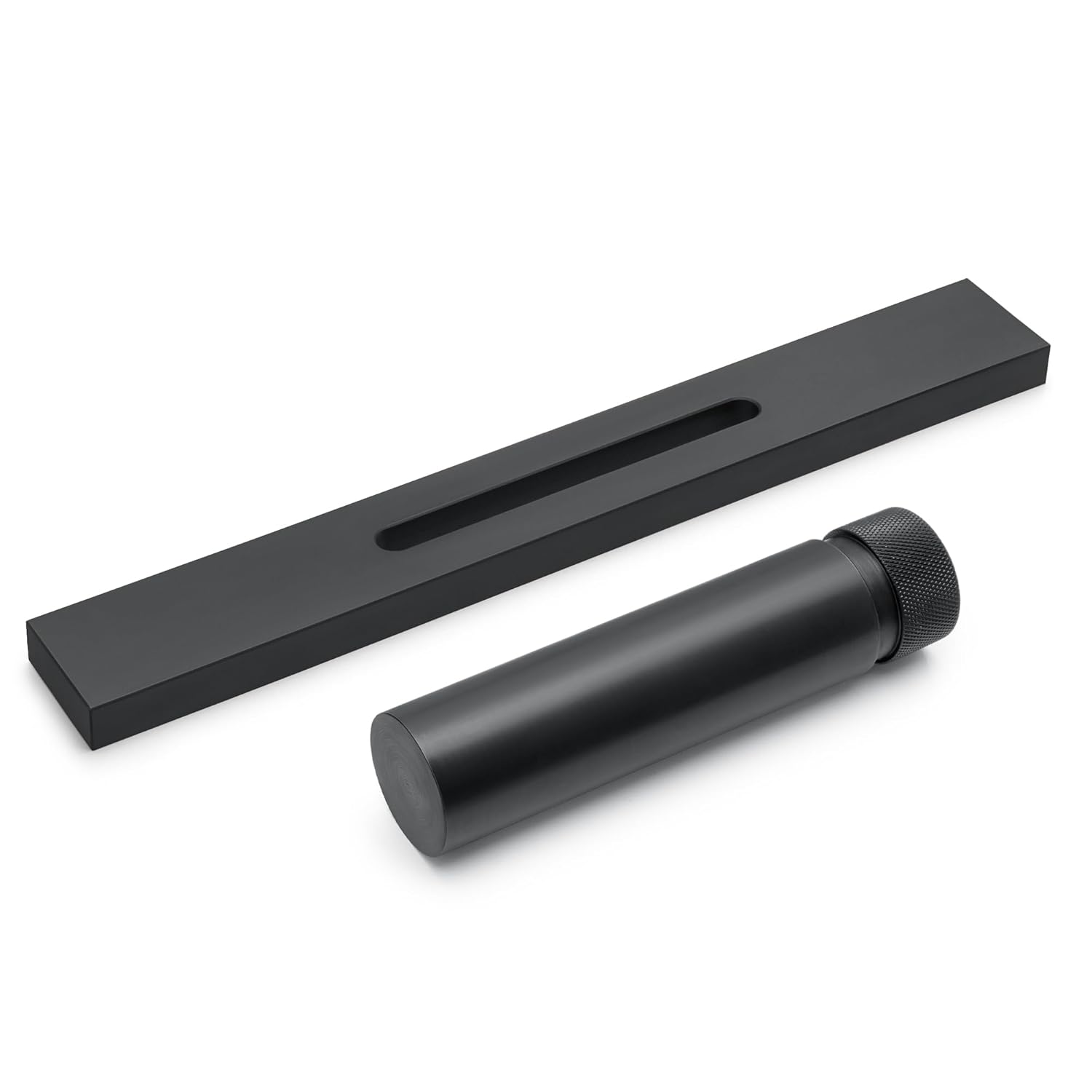

Transimission Straight Edge Gauge Bar Tool Set Compatible with Miller 6311 6312 for Ram Wrangler JK Trucks Intermediate Shaft End Play Selective Spacer Measurement

Item Specifics Part Type: Intermediate Shaft End Play Gauge Tool Set Fitment Type: Direct Replacement Cross Number: 6311, 6312 Applications: NAG1, NV5600, 42RE, 46RE, and 48RE Transmissions, 1998-Up Set Up the Intermediate Shaft End Play(Selective Spacer): 1. Balance the overdrive housing on your holding fixture so there is no weight on the output shaft. 2. Insert the gauge bar tool 6312 through the direct clutch sun gear tube and rest it on top of the overdrive planetary. 3. Tap it lightly, ensuring it is fully seated against the overdrive planetary. 4. Position the straight edge tool 6311 across the surface of the overdrive housing. 5. Zero dial caliper and extend sliding scale of dial caliper downward through gauge bar until scale contacts end of gauge 6312. 6. Lock scale in place, remove dial caliper and note distance measured. 7. Select proper thickness end-play spacer from the spacer chart, based on the distance measured. 8. Remove the gauge tools. 9. Install the selected intermediate shaft spacer onto intermediate shaft. Set Up the Overdrive Thrust Plate(Selective Spacer): 1. Position gauge bar 6311 across face of the overdrive housing. 2. Measure with caliper, the distance to clutch hub thrust bearing surface at four places 90° apart(12-3-6-9 o' clock positions). 3. Average the measurements by adding them and dividing by four. 4. Select the proper thrust bearing plate based on the measurement from the specifics chart. 5. Install the selected thrust plate onto the overdrive piston.Fitment: For Ram For 2011-2021 Ram 1500(LD) For 2009 Ram 2500HD/3500HD Reg & Quad Cab(DH) For Dodge For 2006-2008 Dodge Ram 4500/5500 Reg & Crew Cab(DR) For 2008-2014Dodge Challenger(LC) For 2011-2013 Dodge Durango(WD) For 2009 Dodge Durango HEMI Hybrid(HB) For 2006-2014 Dodge Charger(LX) For 2006-2014 Dodge Magnum(LX) For 2006 Dodge Sprinter(VA) For 2007-2009 Dodge Sprinter 2500(VB) For 2007-2011 Dodge Nitro(KA) For 2007-2012 Dodge Caliber(PM) For Chrysler For 2009 Chrysler Aspen(HG) For 2006-2014 Chrysler 300(LX) For 2006-2008 Chrysler Crossfire(ZH) For Jeep For 2011-2014, 2017-2018 Jeep Wrangler Unlimited(JK) For 2006-2013 Jeep Grand Cherokee(WK) For 2006-2010 Jeep Commander(XK) For 2008-2012 Jeep Liberty(KK) For 2011-2014, 2017 Jeep Wrangler(J8) For 2007-2014, 2017 Jeep Compass(MK) For 2007-2014, 2017 Jeep Patriot(MK)

• Assisting tools are used on measuring the transmission case and gear train in order to select the correct gear train end-play shims when rebuild transmission
• Cross references 6311, 6312,Applications in the NAG1, NV5600, 42RE, 46RE, and 48RE transmissions, 1998-up
• Compatible with Ram trucks LD, DH 2009-2021
• Compatible with Dodge Challenger, Durango, Charger, Magnum 2006-2014
• Compatible with Jeep Wrangler JK 2011-2018, Grand Cherokee, Liberty, Patriot 2006-2014
