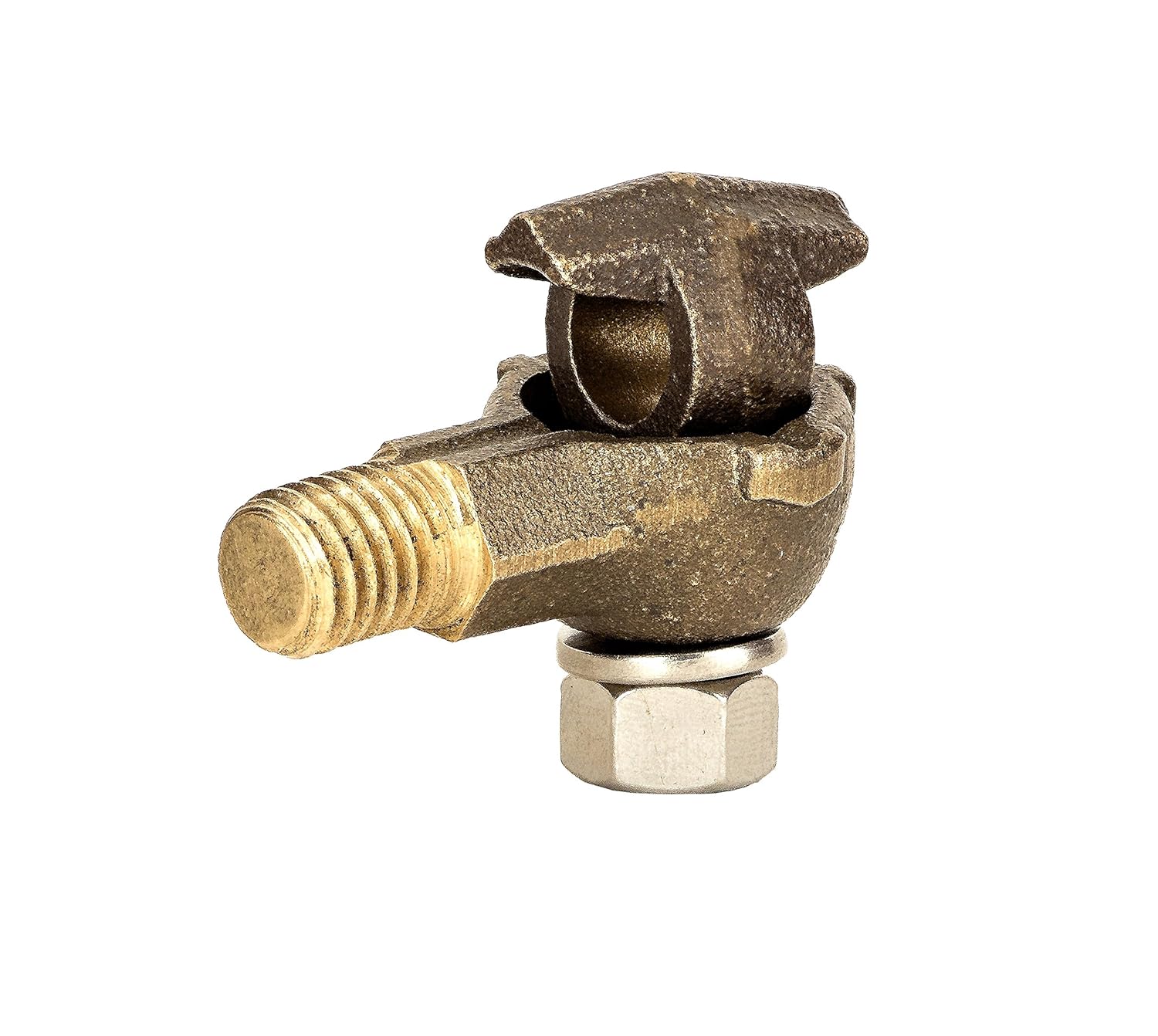

Transformer Ground Clamps, Eye Bolt Style with Plain Finish, 8 sol - 2/0 str Copper Conductor Range, 0. 128/0. 419" Wire Diameter, 7/8" Width, 1-7/16" Height, 1-31/32" Length
Product details
| Management number | 216539072 | Release Date | 2026/04/19 | List Price | $23.02 | Model Number | 216539072 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
NSI Transformer ground clamps eye bolt style, clamps bodies are cast from high conductivity, high strength copper alloy with cast high strength bronze eyebolts. Stainless steel nuts and lockwashers are standard on all clamps. For silicon bronze hardware, suffix catalog number with SB. The HTGE provides a hex or square shoulder for wrench tightening. The flat surface also acts as a seal to the tank. The TGE may be tightened by using a wrench on the body. 1/2"-13 Stud size. 3/8" -16 Eye bolt size. Measures 1-31/32-inches length by 7/8-inches width by 1-7/16 -inches height.
- Transformer ground clamp bodies are cast from high conductivity
- High strength copper alloy with cast high strength bronze eyebolts
- Stainless steel nuts and lockwashers are standard on all clamps
- The flat surface also acts as a seal to the tank
- The TGE may be tightened by using a wrench on the body
| UPC | 662381024923 |
|---|---|
| Color | Bronze |
| Brand Name | NSI |
| Style Name | 0.128/0.419 inches |
| Unit Count | 1.0 Count |
| Item Weight | 1.6 ounces |
| Manufacturer | NSi Industries |
| Model Number | TGE-2/0 |
| Material Type | Copper, Stainless Steel |
| Item Dimensions | 5.8 x 4.6 x 2.4 inches |
| Global Trade Identification Number | 00662381024923 |
