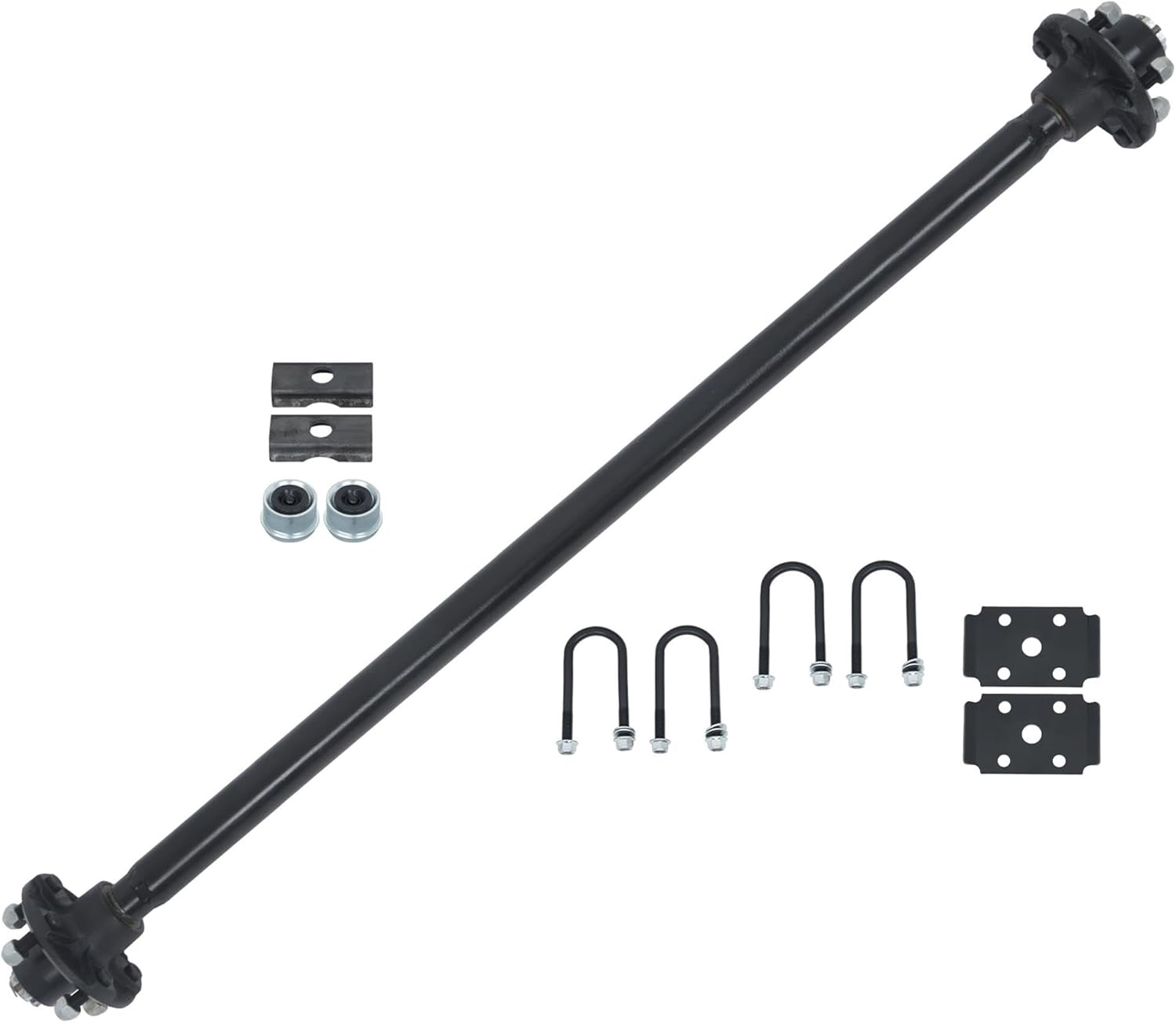

Trailer Axle 2000 lbs Axle Beam 5 Lug Trailer Axle 47.5 inch Hub Face

Specifications:Capacity: 2000 lbInner bearing: L44649Outer bearing: L44649Bolt Pattern: 5 Lug hubs 4.5 inchTube diameter: 1.75 inch/45mmTube thickness: 3/16 inch/5mmPackage includes:1 x Trailer Axle with hub kit2 x Gasket2 x Main shaft nut2 x Cotter pins2 x Dust caps1 x U-shaped bolt kit (4 x U-shaped bolts and 2 x shaft plates)2 x Leaf spring support (unwelded, needs to be welded as required by the customer)Features: 1. Pre-installed shaft seat, bearing, has been filled with butter.2. Without brake.Function: An axle is the part that holds the wheel in place and turns with the wheel to send or receive mechanical power or to allow the wheel to rotate freely on it. The axle will carry and share the weight of the trailer, and become the carrier for installing the shock absorption system, braking system, tires, and steel rings.NOTE: Please check compatibility and specifications before ordering to avoid buying unsuitable.

• 47.5 inch Hub Face: The length of the shaft measured from the bottom of one wheel stud to the bottom of the other wheel stud
• Installation Instructions: The packaging includes leaf spring brackets but they are not welded. They need to be welded according to your own requirements
• Widely Used: Suitable for all light trailers, including trailer axle, boat trailer axle, car trailer axle, ATV trailer axle, lawn and landscape trailer axle, motorcycle trailer axle, cargo trailer axle, enclosed trailer axle, RV trailer axle, etc
• Material: Made of sturdy iron and steel, it features high strength and a long service life
• Note: Your measurement spacing is allowed to be off by about an inch from the size we show
