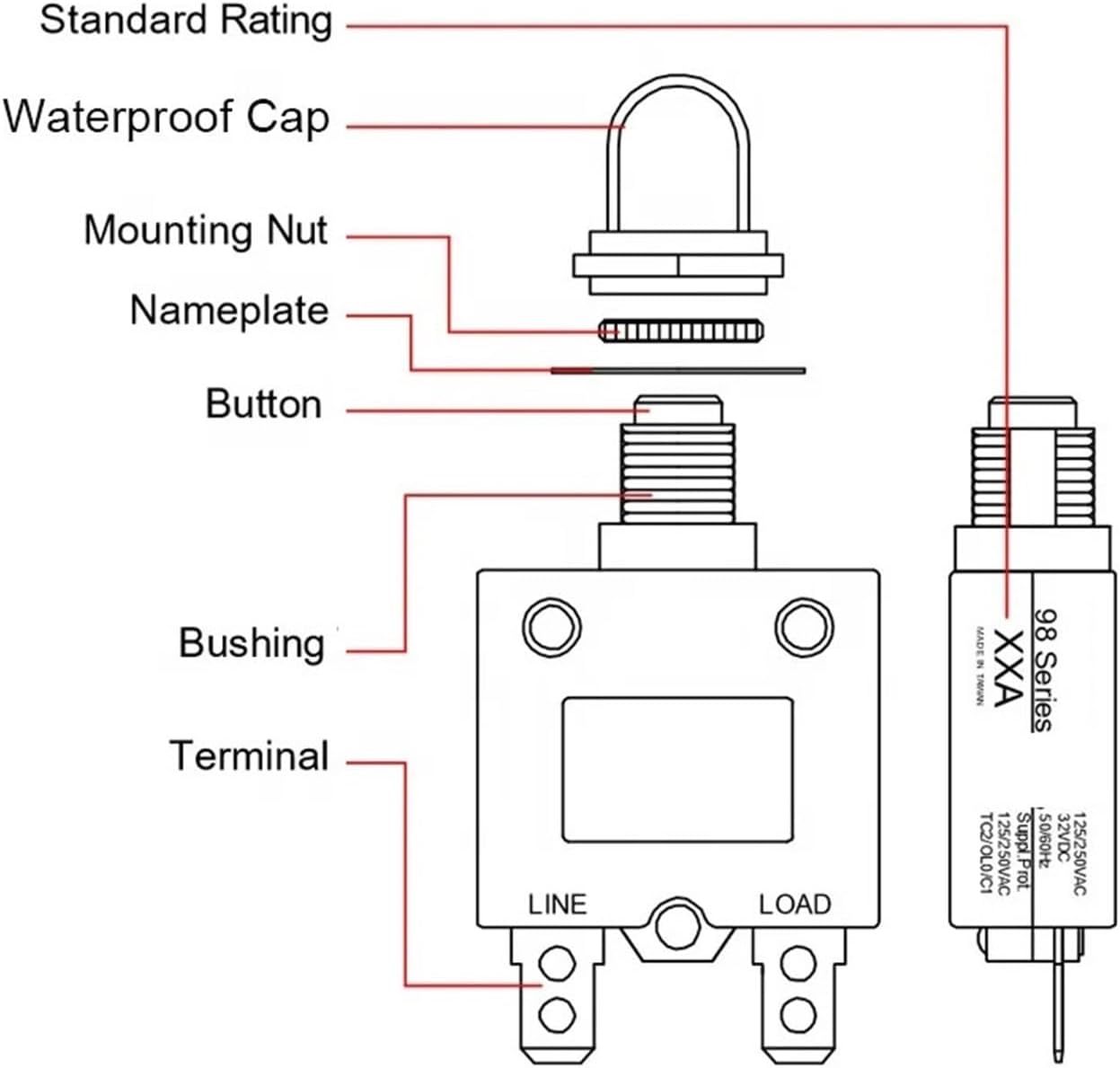

Thermal Circuit Breakers, Manual Reset Overload Protector 98-12A 3A-50A Breaker Straight/Screw Mini(5a)

Product DescriptionCurrent Rating Range3~50AInput Voltage rating125/250VAC,32VDCWithstand voltage strength<;;;0.5mAInsulation resistance500VDC 1Min >100MRated short-circuit capacity125VAC/1000A;250VAC/1000ARated breaking capacity6 times rated currentResetManual ResetMechanical/Environmental DataOperating Ambient Temperature: -10 to +60Mounting: Various options. See Ordering Information and drawingsTermination: 250''(6.35mm)quick connects or solder terminalsCalibration(at25)99% of Rated Current: Hold , No Trip 300% of Rated Current: 1.5-5.0 sec Trip 200% of Rated Current: 5-30 sec Trip 150% ofRated Current: Trip Within 1 Hour==========Type : Earth LeakageModel Number : 98-12AIs Smarts Device : NoOrigin : Mainland ChinaCurrent rating range : 5~30AInput voltage rating : 125/250VAC; 32/50VDCInterrupting Capacity : 125/250VAC x 1,000A(UL 1077)Typical life : 1,000 operations at 200% overloadInsulation co-oration : Rated impulse withstand voltage 2.5kVDielectric Strength : > 1,500VAC/minInsulation Resistance : >100MOHM (DC 500V)

• APPLICATION:Circuit overload protectors switch can play the role of over current protection and short circuit protection, protecting the power circuit from overheating due to overload.
• FEATURE:and wear-resistant, ensuring long service life, reliable use.
• Good insulation, heat resistance, melting resistance and good conductivity, which can maintain stable current connection and excellent thermal sensor.
• CIRCUIT PROTECTION: Compact design enables high density circuit protection configuration. Made of durable plastic, and long service life.
• Widely used for overload and short circuit protection.
