Thermal Circuit Breakers, 98 Series Manual Reset Overload Protection Switch 3A-30A for Portable Generator(30a)

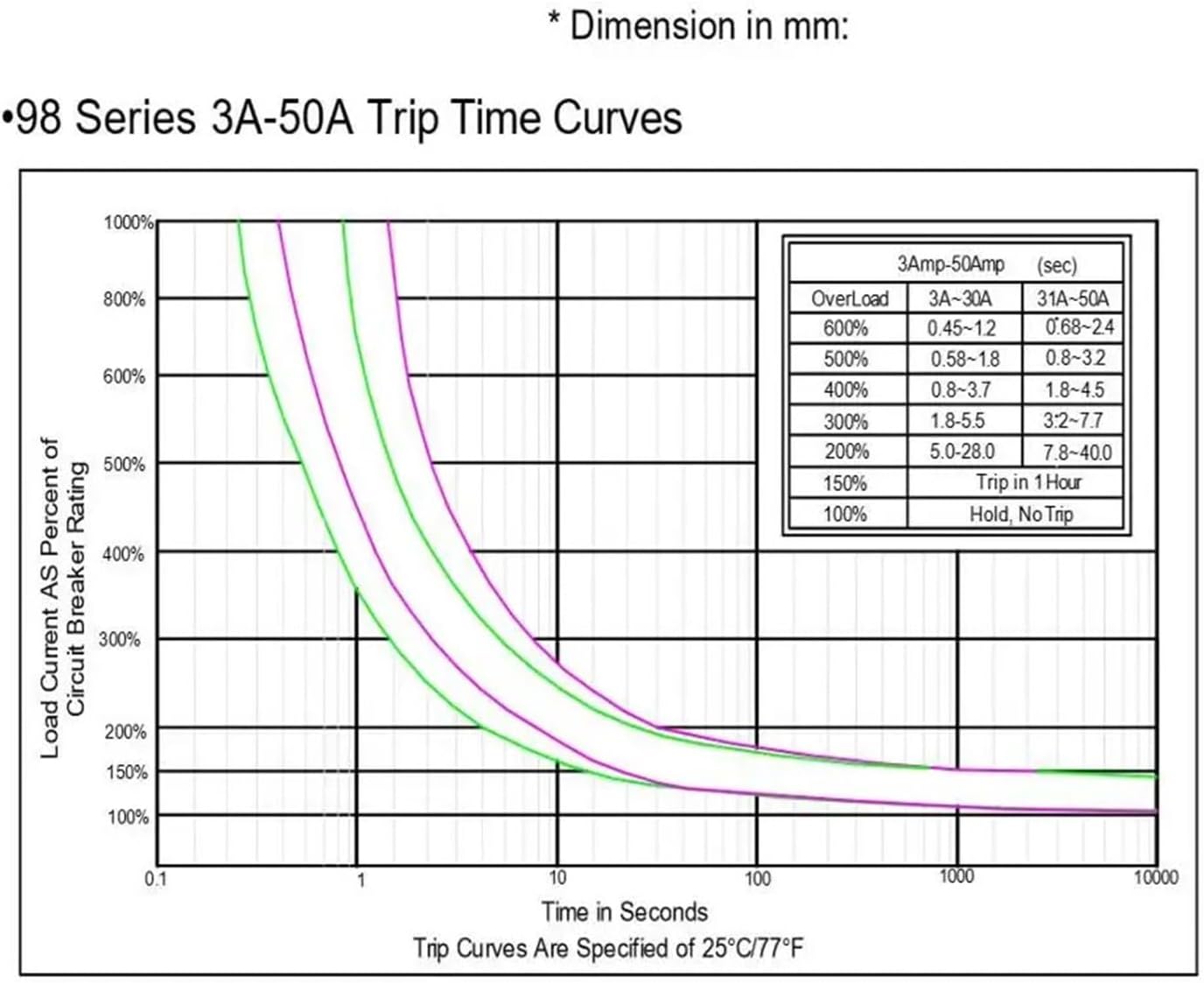

Product DescriptionTechnical dataCurrent rating range:5~30AInput voltage rating:125/250VAC; 32/50VDCInterrupting Capacity : 125/250VAC x 1,000A(UL 1077)Typical life :1,000 operations at 200% overload1,000 operations at 200% overloadInsulation co-oration:Rated impulse withstand voltage 2.5kV Rated impulse withstand voltage 2.5kV Dielectric Strength:>1.500VAC/min.Insulation Resistance:>100MOHM (DC 500V)Degree of protection:Terminal area IP00, operating area IP40Technical dataMechanical/Environmental DateOperating Ambient Temperature: -10 to +60 Mounting: Various options. See Ordering Information and drawingsTermination: 250''(6.35mm)quick connects or solder terminalsCalibration(at25)100 % of Rated Current: Hold , No Trip 300% of Rated Current: 1.5-5.0 sec Trip 200% of Rated Current: 5-30 sec Trip 150% ofRated Current: Trip Within 1 Hour==========Type : Moulded CaseModel Number : 98-10AIs Smarts Device : NoOrigin : Mainland China>100MOHM (DC 500V) : >100MOHM (DC 500V)Input voltage rating : 125/250VAC; 32/50VDCInterrupting Capacity : 125/250VAC x 1,000A(UL 1077)Typical life : 1,000 operations at 200% overload.Insulation co-oration : Rated impulse withstand voltage 2.5kVDielectric Strength : > 1,500VAC/min.Insulation Resistance : >100MOHM (DC 500V)Degree of protection : Terminal area IP00, operating area IP40

• APPLICATION:Circuit overload protectors switch can play the role of over current protection and short circuit protection, protecting the power circuit from overheating due to overload.
• FEATURE:and wear-resistant, ensuring long service life, reliable use.
• Good insulation, heat resistance, melting resistance and good conductivity, which can maintain stable current connection and excellent thermal sensor.
• CIRCUIT PROTECTION: Compact design enables high density circuit protection configuration. Made of durable plastic, and long service life.
• Widely used for overload and short circuit protection.
