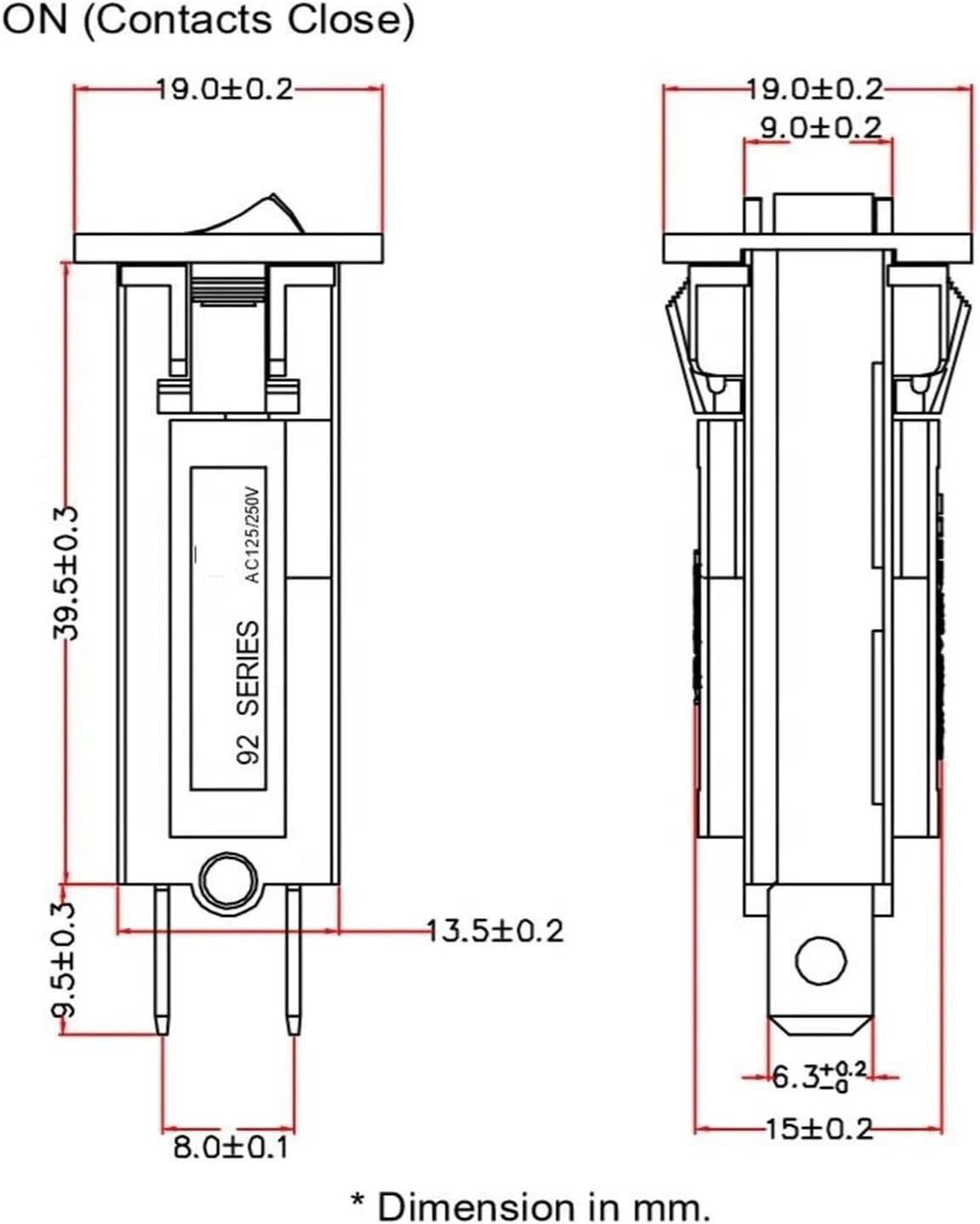

Thermal Circuit Breakers, 92 Series Reset Overload Protection Switch 0.5-20A Breaker Over Current Protector(15a)

Product DescriptionCurrent Rating Range0.5~10AInput Voltage rating125/250VAC,50VDCInterrupting Capacity125/250VACx1000ATypical Life1000 operations at 200% overloadInsulation co-orationRated impulse withstand voltage 2.5kvDielectric Strength>1500VAC/MinInsulation Resistance>100MOHM(DC500V)Degree of protectionTerminal area IP00, operating area IP40Test environment temperature25±3ResetManual RestMOQ100 PieceSpecificationsRating: 0.5A~10.0A 125/250Vac 50VdcInterrupting Capacity: 1,000A 125/250Vac 200A 50VdcDielectric Strength: 1,500VAC X 1 MinuteInsulation resistance: >500M ohmsReset Time: To Reset (Within 20 sec)Max.Internal Resistance1.0A~10.0A 125/250Vac 50Vdc1.0A~10.0A 125/250Vac 50Vdc==========Type : Earth LeakageModel Number : 92-1.5AIs Smarts Device : NoOrigin : Mainland ChinaCurrent rating range : 2~20AInput voltage rating : 125/250VAC; 50VDCInterrupting Capacity : 125/250VAC x 1,000A(UL 1077)Typical life : 1,000 operations at 200% overload.Insulation co-oration : Rated impulse withstand voltage 2.5kVDielectric Strength : > 1,500VAC/min.Insulation Resistance : >100MOHM (DC 500V)

• APPLICATION:Circuit overload protectors switch can play the role of over current protection and short circuit protection, protecting the power circuit from overheating due to overload.
• FEATURE:and wear-resistant, ensuring long service life, reliable use.
• Good insulation, heat resistance, melting resistance and good conductivity, which can maintain stable current connection and excellent thermal sensor.
• CIRCUIT PROTECTION: Compact design enables high density circuit protection configuration. Made of durable plastic, and long service life.
• Widely used for overload and short circuit protection.
