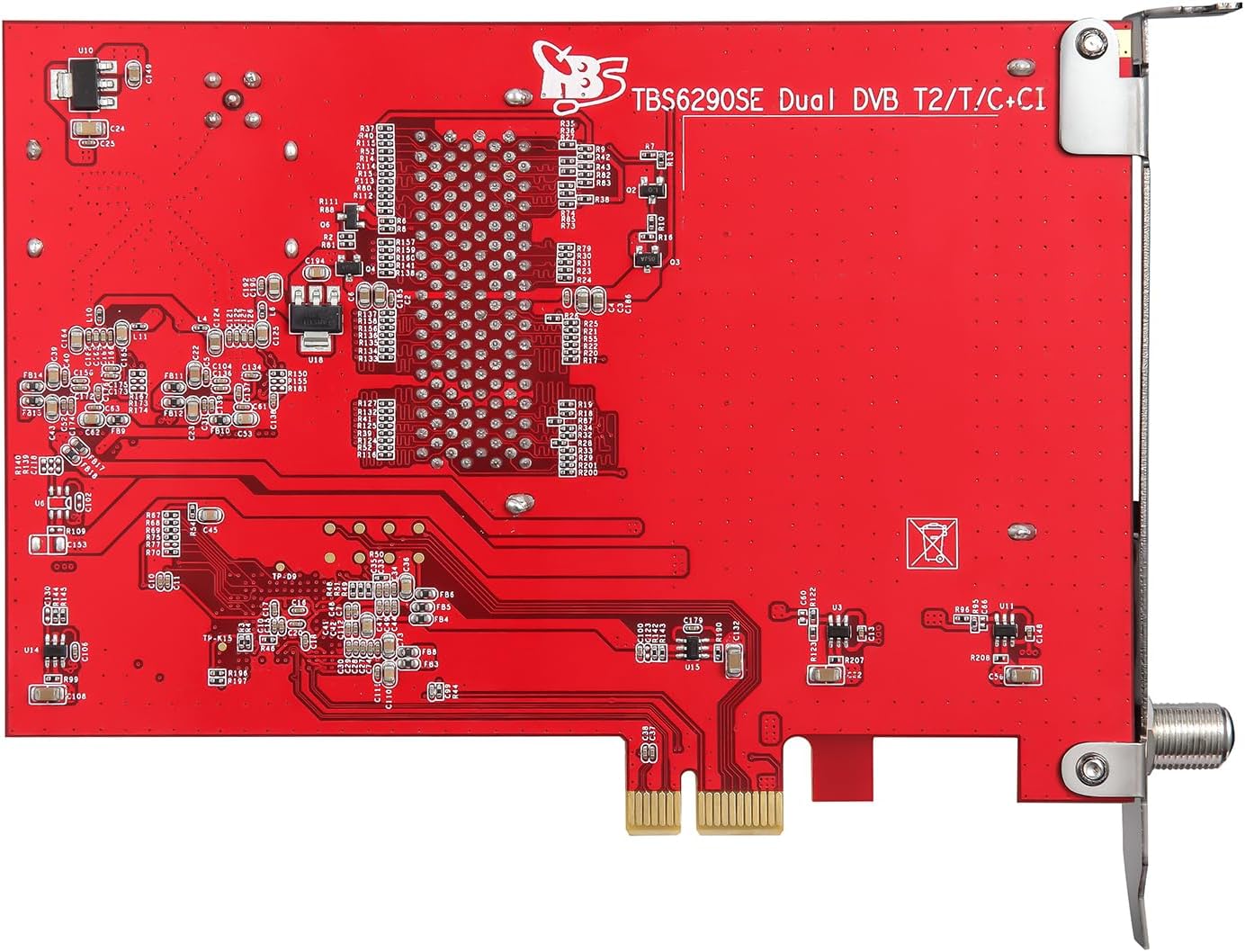

TBS6290se DVB-T2/T/C Dual PCI Express Terrestrial Cable TV Tuner Card with Dual CI Slot for FTA and Encrypted TV Channels

DVB-T2/T2 Lite/T: Receiving channel: VHF band and UHF band Channel bandwidth: 6, 7, 8 MHz DVB-T2/ T modulation type: QPSK, 16QAM, 64QAM, 256QAM FFT mode: 1K, 2K, 4K, 8K, 16K, 32K Code rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 7/8 Guard internal: 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 19/128, 19/256 Intermediate frequency IF mode: low IF Center IF Frequency: 3 ~ 5 MHz Note: default 4MHz RF-Input impedance 75Ω (IEC-DIN female) RF-Output impedance 75Ω (IEC-DIN male) DVB-C: Fully compliant with DVB-C and ITU J83 A/B/C specifications Receiving Frequency: 47~862 MHz Tuning Range Input level: -65~-10dBm 16QAM, 32QAM, 64QAM, 128QAM and 256QAM Support Symbol Rate: 0.87 to 9Mbaud System Requirements: Windows XP / Vista/7/8/10, Linux Available PCI Express x1, x4, x8 or x16 slot CD/DVD drive for software installation Package Contents: 1 x TBS Dual Tuner Dual CI PCIe Card 1 x F connector

• NETWORK PCI-E CARD: Use with any PC or server (based on linux）which has PCI-e slots, receive signals from IP (udp/rtp/http), then decryption and remux , will output FTA channels to IP (udp/rtp/http)

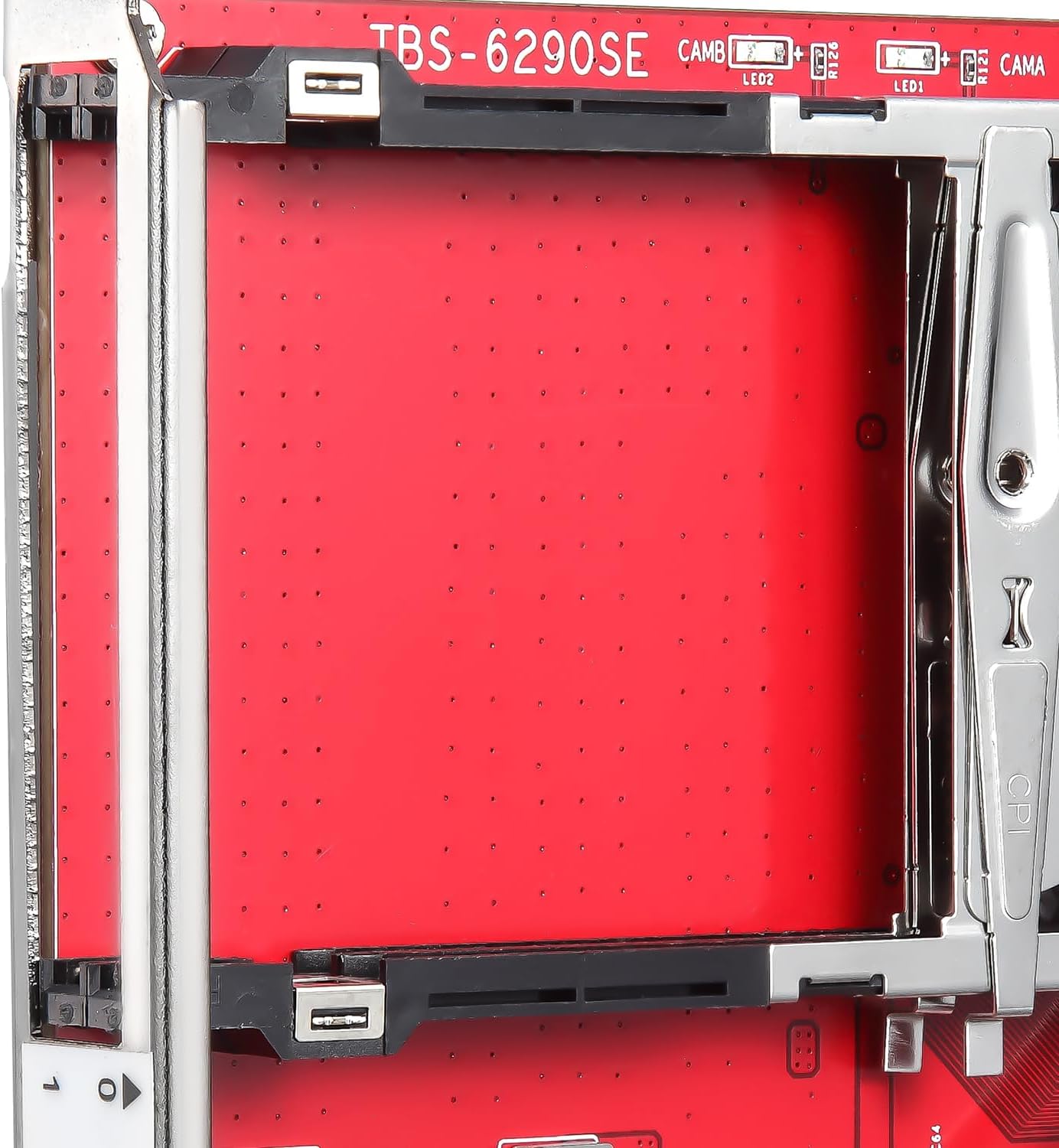

• DUAL CI SLOTS: Can insert 2 CAM inside to decrypt the pay channels
• TBS REMUX SOFTWARE: Receive MPEG TS from multicast (udp/rtp) or http and combine them into one multiple program streams that is suitable for outputing as /dev/dvb/adapterx/secy (x=0-16, y=0,1), then use DVB tools like DVBLAST, TVHEADEND, ASTRA to scan the transponder, then output to network via udp/rtp/http protocol
• DVB-IP GATEWAY: Compatible with TBS tuner cards and servers, this means you can use it with our tuner cards with all DVB standard or server together
