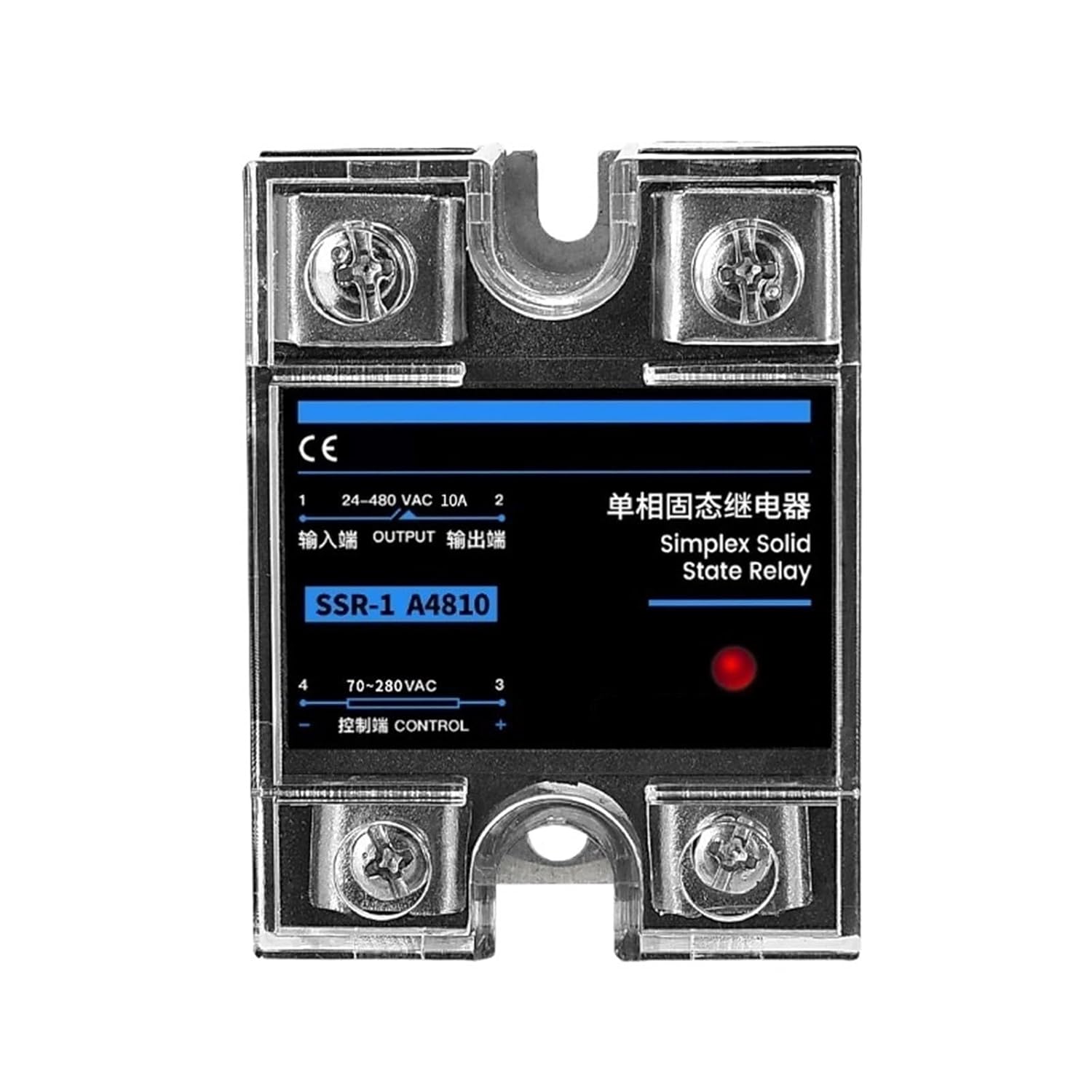

SSR-25DA SSR-40DA SSR-40AA Single Phase Solid State Relay 10A 25A 40A 60A 80A 100A 120A DD DA AA for Temperature Control Relay 1pcs(DC Controlled AC,BASE10-120A)

Relays / Current Monitoring RelaysProduct SpecificationProduct Name: single phase solid state relayModel: SSR-1 Operating Temperature:-30~70Output Current:10A~120A AvailableControl Mode: DD/DA/AAHOW TO CHOOSESTEP1:ChooseacorrectcontrolModeAA-ACControlACDA-DCControlACDD-DCControlDCVA-ControlandAdjustSTEP2:ChooseacorrecttypeCurrentofEquipment/Ratio=CurrentofSSRPS:TheRatiodependonthekindofyourloadingequipment.Resistiveload:60%,Inductiveload:30%STEP3:Chooseasuitableheatsink.DuringtheuseageofSSR,itwillgiveoutalotofheat,soinordertoextendthelifeofyourSSR,pleaseinstallaheatsink,alsoifthecurrentisover60A,thecoolingfanalsorequired.PS:OurHeatSinkinclude2screws(forinstallheatsink)andapackofthermalcompound(isappliedtothebottomoftheSSR)Attention:Solar equipment is a mixed load, we do not recommend using solid state relay. If you want to try, you need to buy a solid state relay with 10 times the current. At the same time, if the solid state relay does not work normally on the solar equipment, we do not provide return service.Power Source : DCTheory : Solid State Relayis_customized : NoContact Load : High PowerModel Number : SSR-1Voltage : 5VFeature : Epoxy
