SparkFun Ardumoto - Motor Driver Shield

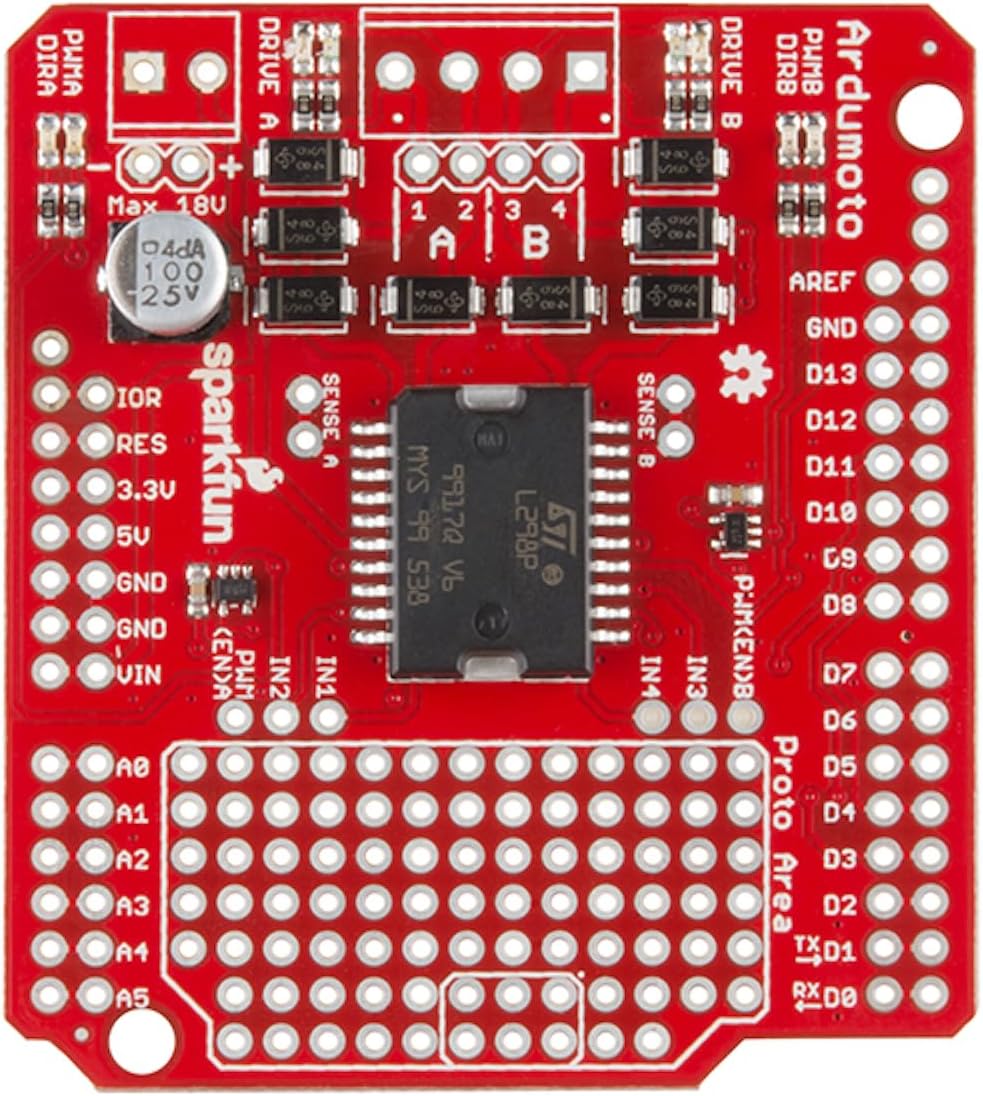

This is a motor shield for Arduino that will control two DC motors. Based on the L298 H-bridge, the SparkFun Ardumoto can drive up to 2 amps per channel. The board takes its power from the same Vin line as the Arduino board, includes blue and yellow LEDs to indicate active direction, and all driver lines are diode protected from back EMF. The new version of this shield allows for either 3.3 or 5v logic, a separate and more robust VIN connection, and the PWM input has moved to pin 3. Control for motor attached to OUT1/2 is connected to digital line 12 (direction A) and digital line 3 (PWM A). Control for motor attached to OUT3/4 is connected to digital line 13 (direction B) and digital line 11 (PWM B). Compatible screw terminals and connectors are sold separately. They are not included in this SKU. Note: The VIN connection is tied directly to the VIN on the Arduino, so make sure to not apply power to both.

• L298 H-bridge Arduino motor shield
• 2 amps per channel
• Shares same Vin line with Arduino or compatible board
• Driver lines are diode protected from back EMF
