Spare Parts Holland - Hydraulic Top Link Cat 3 with Locking Block and Hook - Min. 23" Max. 31-5/16"

Transform your tractor's capabilities with the Spare Parts Holland Hydraulic Top Link Cat 3. This professional-grade hydraulic top link is engineered for precision control and reliable performance in demanding agricultural applications. Featuring an integrated locking block system, this top link maintains consistent positioning even under heavy loads.Superior Construction and PerformanceBuilt with high-grade steel and finished in protective black coating, this tractor hydraulic cylinder delivers exceptional durability. The hydraulic control valve system is designed for compatibility with standard tractor hydraulic setups, making it a versatile addition to your agricultural equipment.Technical Specifications:- Model Number: SPH320057- Maximum Hydraulic Pressure: 3625 PSI- Operating hydraulic pressure: 2610 PSI- Push force 20305 and 15234 Lbs pull force at 2610 PSI pressure- Working Length Range: 23" to 31-5/16"- Stroke Length: 8-1/4"- Hydraulic Hoses: 3/8" Blue Flex SAE 100 R2AT- Hose Length: 29.5 inches- Quick Coupler Type: Connection 12-L bulkhead size 3

• Intelligent and Strong: Premium hydraulic top link with integrated locking block technology, maintains adjusted position consistently. Features sturdy steel construction with black protective finish. Hydraulic operating pressure of 2610 PSI with 20305 Lbs push force and 15234 Lbs thrust force.

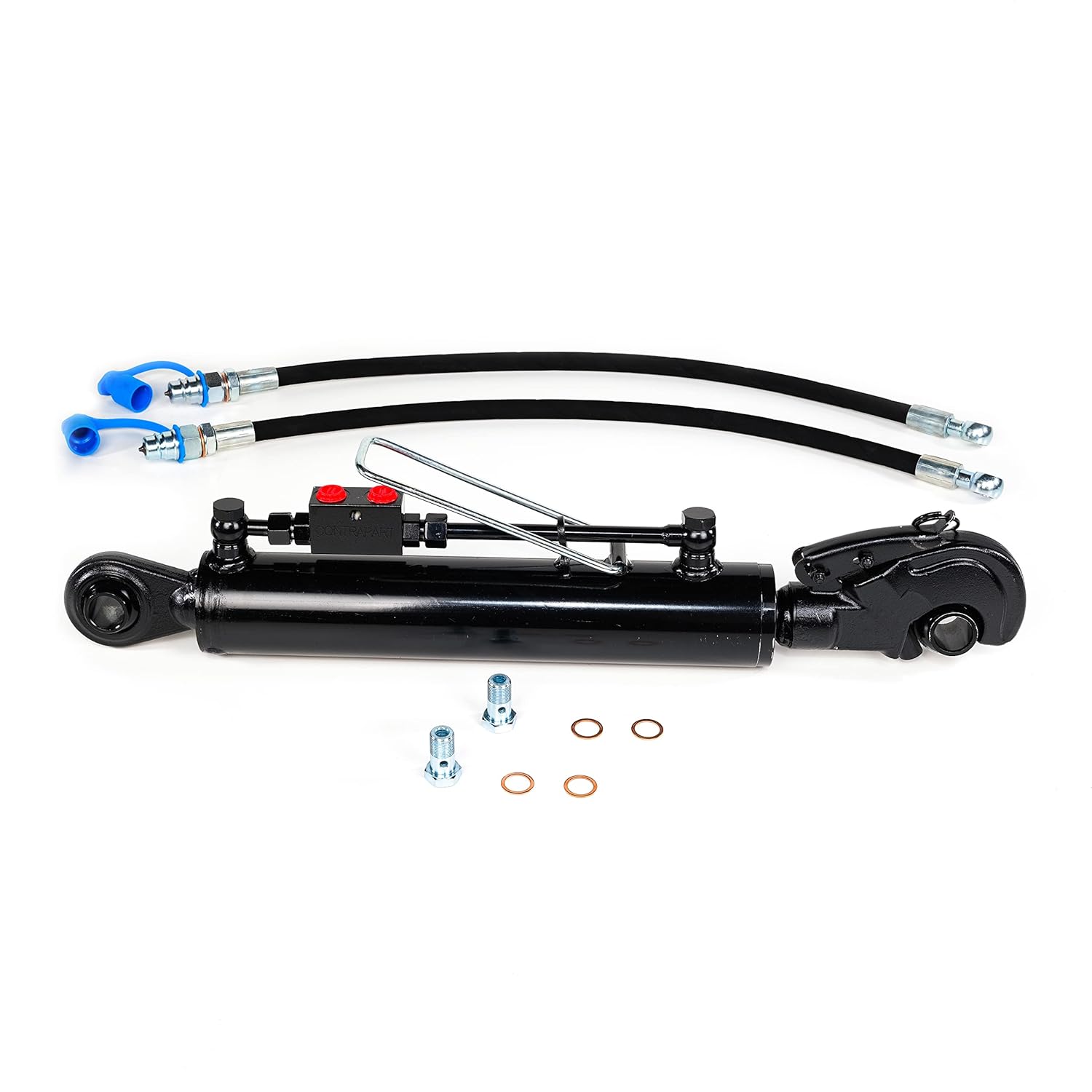

• Complete Installation Kit: Includes 2x hydraulic hoses with 1/2" BSP Poppet Style male quick couplers, protective dust covers, 2 fittings, and 2 washers. Comprehensive fitting set ensures easy setup and maintenance.
• Adjustable Design: Cat 3 top link system with rotatable piston rod for precise implement positioning. Working length ranges from 23 inches minimum to 31-5/16 inches maximum. Features 8-1/4 inch stroke for optimal adjustment range.
• Advanced Locking Mechanism: Integrated check valve system securely locks cylinder position, requires active hydraulic pressure for adjustments. Ensures stable implementation positioning during operation and transport.
• Versatile Compatibility: Designed for tractor hydraulic systems with double-acting control valves. Built-in holder to hold the unit when it is unused. Fully painted black finish for superior corrosion resistance.
