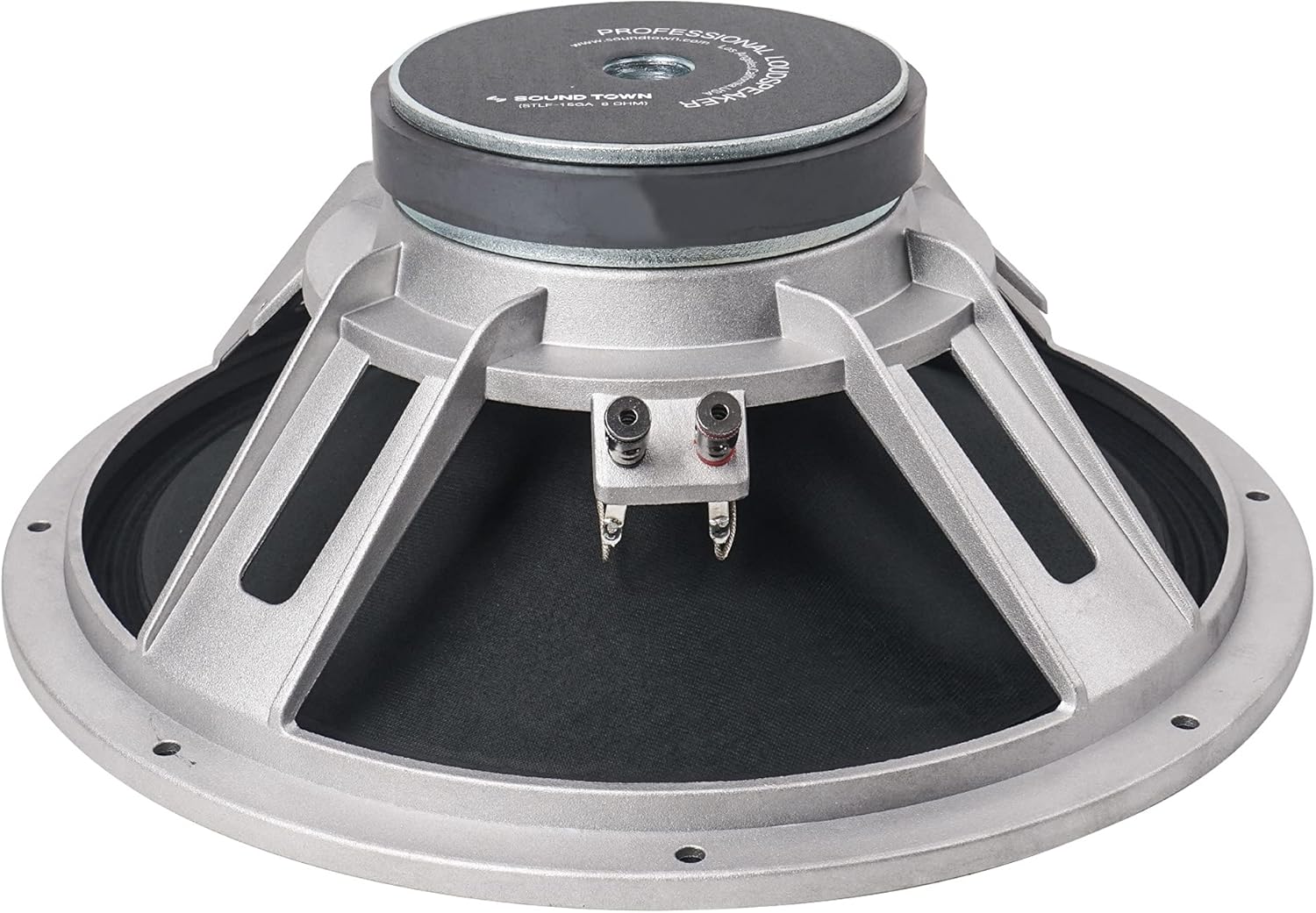

Sound Town 10" 250W Cast Aluminum Frame Woofer w/ 3" Voice Coil, Replacement Woofer for PA/DJ Speaker, Bass Guitar Cabinets (STLF-10GA)
Product details
| Management number | 215979894 | Release Date | 2026/04/19 | List Price | $25.20 | Model Number | 215979894 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The Sound Town STLF-10GA is a 10" universal replacement woofer for PA/DJ speakers and bass guitar cabinets; it is compatible with the Sound Town PA speakers and speakers of other brands which need a 10" low-frequency driver. The woofer comes with 8-ohm impedance and has a frequency range of 65 Hz - 5 kHz. It is built in a cast aluminum chassis and has a paper cone with cloth edge. With 250W RMS, 500W peak power handling capability, the STLF-10GA delivers massive and deep bass and makes a great replacement woofer for your 10-inch PA speakers or bass guitar cabinets. FEATURES 10" cast aluminum frame 250W RMS, 500W peak power handling at 8-ohm 65 Hz - 5 kHz frequency response 3â voice coil and one 50 oz magnet produce super sound Available in single (STLF-10GA) pair (STLF-10GA-PAIR) or SPECIFICATIONS Details Model STLF-10GA Resonance 65Hz Nominal Basket Diameter 10" Frequency Response 65Hz - 5kHz Nominal Impedance 8Ω Sensitivity 92±3dB Power Rating 250W RMS Magnet Weight 50oz Peak Power 500W Peak Voice Coil Diameter 3" VC Thiele & Small Parameters Resonant Frequency (fs) 60Hz Compliance Equivalent Volume (Vas) 27.14 liters DC Resistance (Re) 6.3Ω Mechanical Compliance of Suspension (Cms) 0.145 mm/N Mechanical Q (Qms) 2.996 BL Product (BL) 13.4 Tm Electromagnetic Q (Qes) 0.628 Diaphragm Mass Inc. Airload (MMs) 51.22 g Total Q (Qts) 0.519 Surface Area of Cone (Sd) 363 cm2 Mounting Information Efficiency Bandwidth 93 Baffle Hole Diameter 9.21", 234mm Sealed 39.6 liters / 1.398 cu.ft. Installation Position Diameter 9.72", 247mm Vented 70.9 liters / 2.50 cu.ft. Mounting Holes Diameter 8-0.216", 5.5mm Overall Diameter 10.23", 260mm Net Weight 9.24lbs, 4.2kg Depth 4.65", 118mm Materials of Construction Coil Construction Round copper Cone Composition Paper cone Coil Former Aluminum Cone Edge Composition Cloth edge Magnet Composition Ferrite Dust Cap Composition Paper cap Basket Materials Die Cast Aluminum   Shipping Weight & Dimensions (Single) Shipping Weight 11.0 lbs  Shipping Dimensions 12.6" x 11.4" x 6.7â (inches)  Warranty/Certifications Manufacturer Warranty 1 year  Â
- 10" cast aluminum frame
- 250W RMS, 500W peak power handling at 8-ohm
- 65 Hz - 5 kHz frequency response
- 3“ voice coil and one 50 oz magnet produce super sound
| UPC | 810062037001 |
|---|---|
| Brand | Sound Town |
| Color | black |
| Impedance | 8 Ohms |
| MP3 player | No |
| Model Name | Woofer |
| Item Weight | 4.2 Kilograms |
| Manufacturer | Sound Town |
| Model Number | STLF-10GA |
| Power Source | Corded Electric |
| Speaker Size | 3 Inches |
| Speaker Type | Woofer |
| BuiltIn Media | 1 x Speaker |
| Is Waterproof | FALSE |
| Mounting Type | Flush Mount |
| Warranty Type | Limited |
| Control Method | Voice |
| Controller Type | Voice control |
| Number of Items | 1 |
| Woofer Diameter | 10 Inches |
| Antenna Location | For Live Performances, For PA System Events |
| Audio Driver Size | 10 Inches |
| Audio Driver Type | Dynamic Driver |
| Audio Output Mode | Stereo |
| Compatible Devices | Laptop, Desktop |
| Enclosure Material | Aluminum |
| Frequency Response | 5 KHz |
| Subwoofer Diameter | 10 Inches |
| Additional Features | Bass Boost |
| Wireless Technology | No Wireless Communication Technology |
| Warranty Description | 1 year |
| Connectivity Protocol | RCA |
| Customer Package Type | FFP |
| Water Resistance Level | Not Water Resistant |
| Connectivity Technology | RCA |
| Number of Audio Channels | 1.0 |
| Item Dimensions D x W x H | 10.1"D x 9.3"W x 5.9"H |
| Specific Uses For Product | PA system events, DJ performances, bass guitar performances, and monitoring during live performances |
| Compatible with Vehicle Type | Car |
| Speaker Maximum Output Power | 250 Watts |
| Subwoofer Connectivity Technology | Wired |
