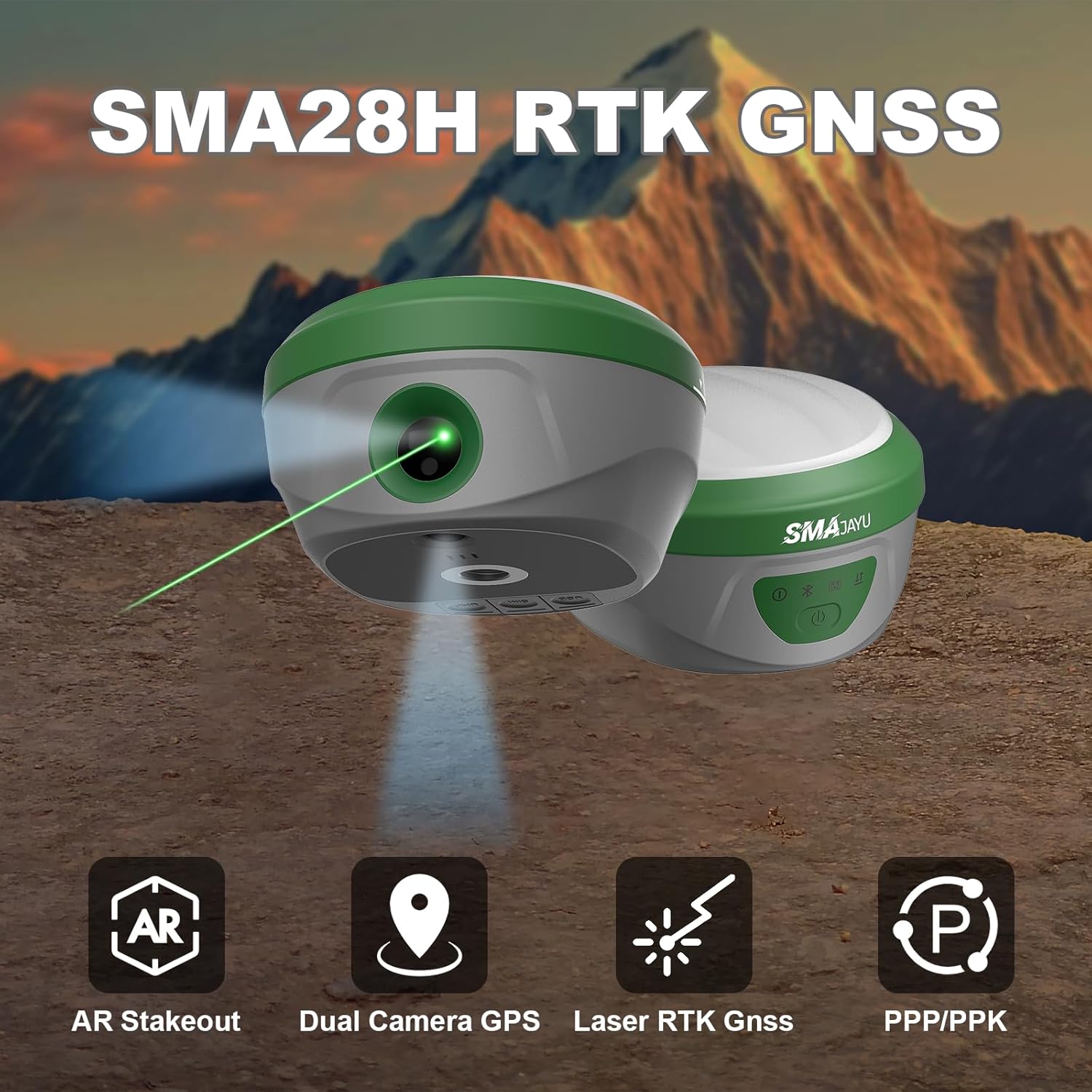

SMA28H Laser RTK GNSS Rover with Collector Permanent Software, Dual Cameras, AR Real Scene Stakeout, Work as Base Station for Drones/UAVs,120° IMU, Laser Range 30m,UHF 15km, 2cm Accuracy, 4G/NFC/NTRIP
$2,090.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by democodigos.pollafutbol.co
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$2,090.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by democodigos.pollafutbol.co
Free 30-day returns Details
Product details
| Management number | 212342691 | Release Date | 2026/04/06 | List Price | $836.00 | Model Number | 212342691 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【2cm Accuracy Laser Measurement (Up to 30m)】The SMA28H laser RTK is equipped with a visible green laser, allowing for non-contact point measurements within a 30m range. But the laser accuracy within 15m is 3-4cm.Simply aim and mark – ideal for measuring points that are difficult to reach but visible to the naked eye
- 【Dual Cameras AR Real Scene Stakeout】The SMA28H laser RTK receiver features dual high-definition cameras that support augmented reality (AR) stakeout, displaying stakeout points directly on the live video feed. This makes on-site stakeout faster and more intuitive, and provides real-time directional guidance
- 【120° Tilt Survey with High Accuracy】The SMA28H laser RTK surveying equipment features an integrated inertial measurement unit (IMU), providing accuracy of less than 2 cm within a 60° tilt range and supporting measurement angles up to 120°, ensuring efficient and precise operation even in uneven or obstructed environments
- 【Long-Distance Communication with 15km UHF】The integrated UHF radio communication system of the SMA28H laser RTK GNSS has a working range of up to 15 kilometers in open environments. It is ideal for large construction sites, surveying teams, and field operations
- 【Multi-Network GNSS Connectivity (PPP/PPK/RTK/CORS)】The SMA28H laser GNSS RTK surveying equipment supports PPP, PPK, RTK, and direct CORS network connections. The receiver has a built-in 4G module, which can be used to directly access the 4G network and log in to CORS by inserting a SIM card, enabling mobile stations/base stations to connect to the network without the need for external equipment
- 【Durable, Connected, and Powerful】IP67 waterproof, 1.8m drop-tested, integrated 4G LTE, UHF radio, Wi-Fi, Bluetooth, and WEBUI platform. 6600 mAh battery ensures up to 20 hours of rover use;The SMA28H laser RTK has a transmission power of 4mW and a laser class of Class3R
| Brand | SMAJAYU |
|---|---|
| Map Types | Topographical |
| Model Name | SMA28H Rover |
| Item Weight | 2.6 Kilograms |
| Display Type | touch screen |
| Manufacturer | SMAJAYU |
| BuiltIn Media | 1*Handheld,1*Handheld bracket, 1*Power Adapter,1*Charging cable, 1*Radio Antenna, 1*SMA28H Receiver, 1*User Manual |
| Mounting Type | Handheld |
| Control Method | Push Button, Touch |
| Touch Screen Type | Capacitive |
| Additional Features | Non-Contact Laser Measurement, AR Real-Scene Stakeout, High-Accuracy Tilt Survey, Long-Distance UHF Communication, Multi-Network GNSS Connectivity |
| Battery Average Life | 20 Hours |
| HumanInterface Input | Buttons, Touchscreen |
| Connectivity Protocol | Bluetooth |
| Are Batteries Included | Yes |
| Connectivity Technology | WiFi, 4G, UHF |
| Memory Storage Capacity | 32 GB |
| Item Dimensions L x W x H | 5.08"L x 5.08"W x 3.07"H |
| Compatible with Vehicle Type | Truck |
| Supported Satellite Navigation System | BeiDou, GLONASS, GPS, Galileo |
