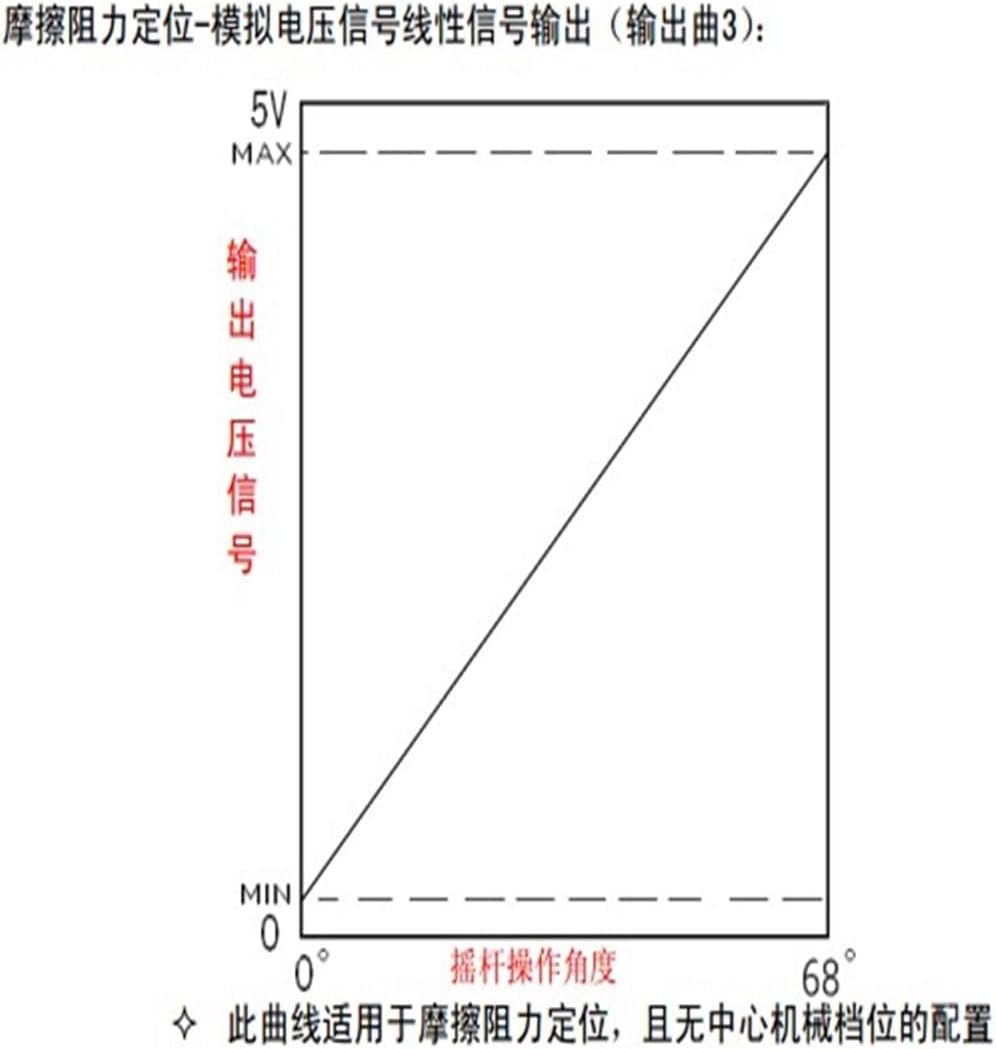

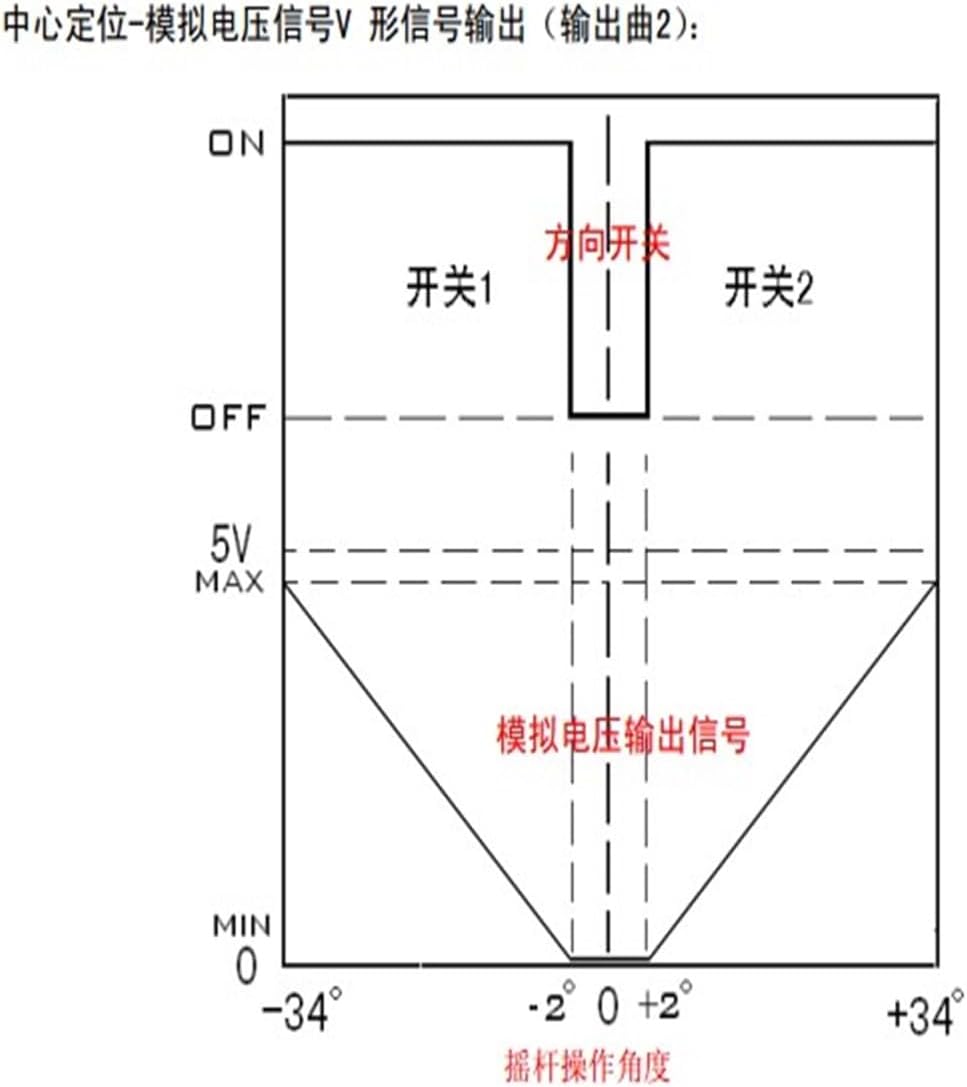

Single-axis 61A2 Push Rod Spring Automatically Returns to the Center Position, Hall Rocker Handle, Industrial Joystick smart Boat Cruise Yacht Push Rod(12v,Analog Voltage 0-2.5-5V)

The single-axis joystick is mainly used for the control of engineering vehicles and electric vehicles. The instrument panel is installed in stainless steel and aluminum alloy materials, with a spring automatic return structure, imported high-precision Hall sensors, relatively positive linearity over the entire temperature range, IP66 protection level, smoother operating feel, and ergonomic mechanical design.1. Proportional valve control:Supports PWM power signal output, with an internal MCU circuit, can directly control the proportional solenoid valve, with starting current, maximum current, slope , acceleration, and deceleration . Wide voltage range, low operating temperature2. Motor controlSupports MODBUS protocol, can be connected to the inverter via RS485, supports inverter, inverter start, stop, forward, reverse, speed; has a variety of parameter 3. Self-propelled hydraulic lifting platformHydraulic lifting vehicle control, with a full set of solutions, supports a maximum of 48V power supply, CAN bus communication, and provides a controller.Walking, front and back, speed, steering, lifting, hydraulic pump, limit, tilt detection, light, horn, alarmSMC61 series industrial joystickI. Product features:Material: aluminum alloy, stainless steelPositioning method: spring automatic reset / friction resistance positioningOperation angle: ±34° (total angle 68 degrees)Sensor: Hall sensorLinearity: less than 1%Signal output: analog voltage 0-5V, RS422, RS485, RX232, CAN, USB, PWM power driveDirection switch: front + backPower supply: DC5V/12-29V/48V/80V optionalOperation life: 10 million times; Repeat positioning accuracy: less than 0.8%.Temperature: -40 degrees ~ +70 degreesWorking temperature: -40℃┉+70℃Storage temperature: -50℃┉+80℃Protection level: Panel and part IP67Base size: 71.21(L)x71.21 (W)x58.45(H)mm;Electrical parameters:Minimum operating voltage: 4.2V (5V power supply), 10V (12-28V power supply)Maximum input voltage: 36V (12-28V power supply), 5.5V (5V power supply)Working current: less than 12ma (5V power supply, analog voltage signal output)Button switch capacity: 1A/24VLimit switch capacity: 1A/24VAnalog voltage signal output load: greater than 1KΩAnalog voltage signal output center voltage: 2.50V or 50VddAnalog voltage output signal: 0V～5V / 0.3V ～4.7V / 0.5V ～ 4.5V / 1V～ 4V

• 1. Industrial Joystick with High Precision and Durability: The industrial joystick is constructed with high-quality aluminum alloy and stainless steel materials, ensuring excellent durability and long-lasting performance. Equipped with a spring automatic return structure and imported high-precision Hall sensors, this joystick provides accurate and reliable control for engineering vehicles and electric vehicles.
• 2. Versatile Proportional Valve Control: Our industrial joystick supports PWM power signal output and features an internal MCU circuit that enables direct control of proportional solenoid valves. With adjustable for starting current, maximum current, slope, acceleration, and deceleration, this joystick offers precise control over valve operations. It also boasts a wide voltage range and low operating temperature for enhanced versatility.
• 3. Convenient Motor Control Options: This industrial joystick supports the MODBUS protocol and can be easily connected to inverters via RS485. Compatible with popular brands like and , it allows users to effortlessly start, stop, change direction, adjust speed, and configure various parameters. Enjoy seamless motor control and efficient operation with our versatile joystick.
• 4. Comprehensive Control Solutions for Self-propelled Hydraulic Lifting Platforms: Our industrial joystick is specially designed to meet the control needs of self-propelled hydraulic lifting platforms. With support for up to 48V power supply and CAN bus communication, it provides a complete set of control solutions. From walking, steering, lifting, and hydraulic pump operation to limit detection, tilt detection, light, horn, and alarm control, this joystick ensures comprehensive and efficient platform control.
• 5. Robust Construction and Wide Temperature Range: Designed for rugged environments, our industrial joystick boasts an IP67 protection level for both the panel and its components. The base size of 71.21(L)x71.21 (W)x58.45(H)mm provides stability and durability. It operates reliably within a temperature range of -40 degrees to +70 degrees , making it suitable for various industrial applications.
