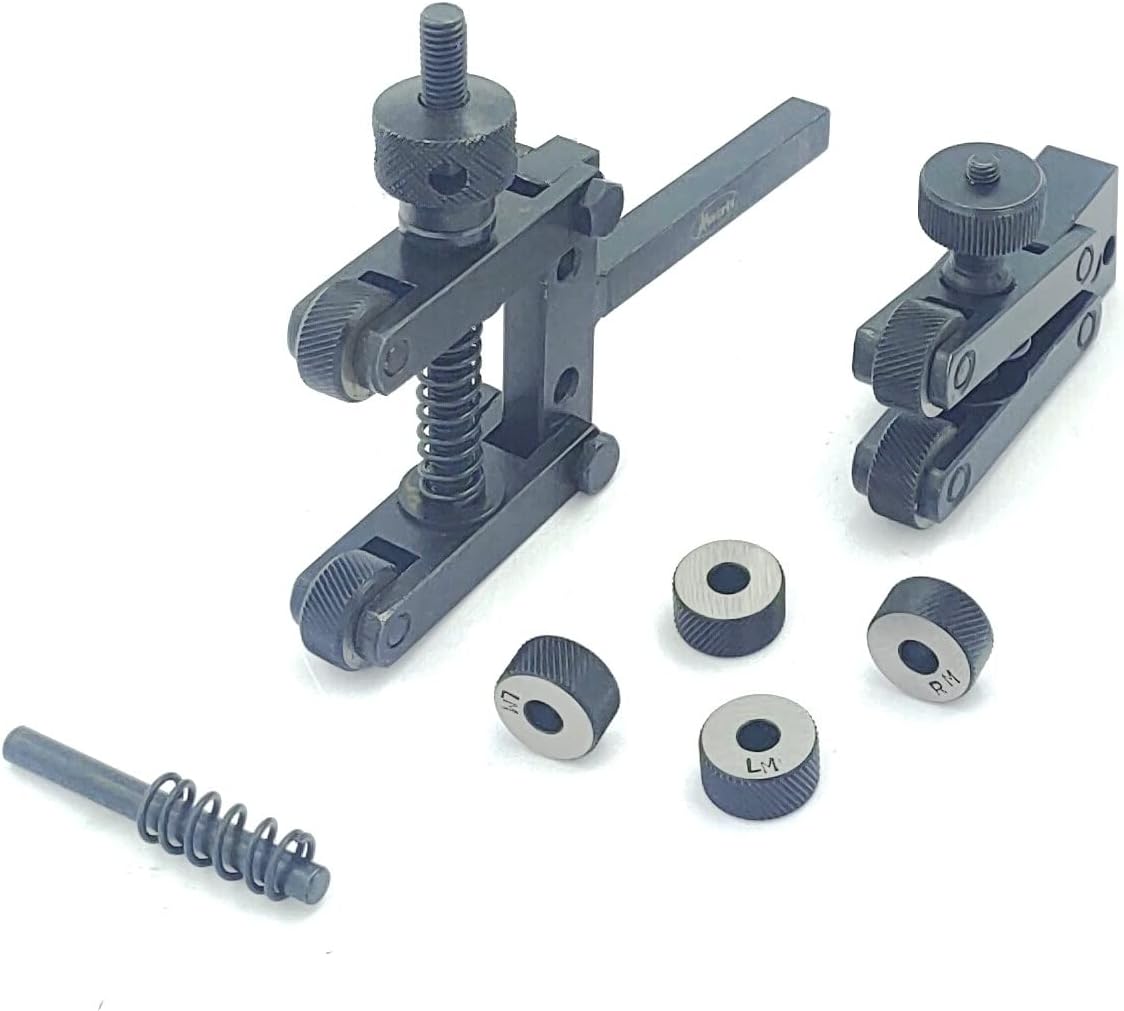

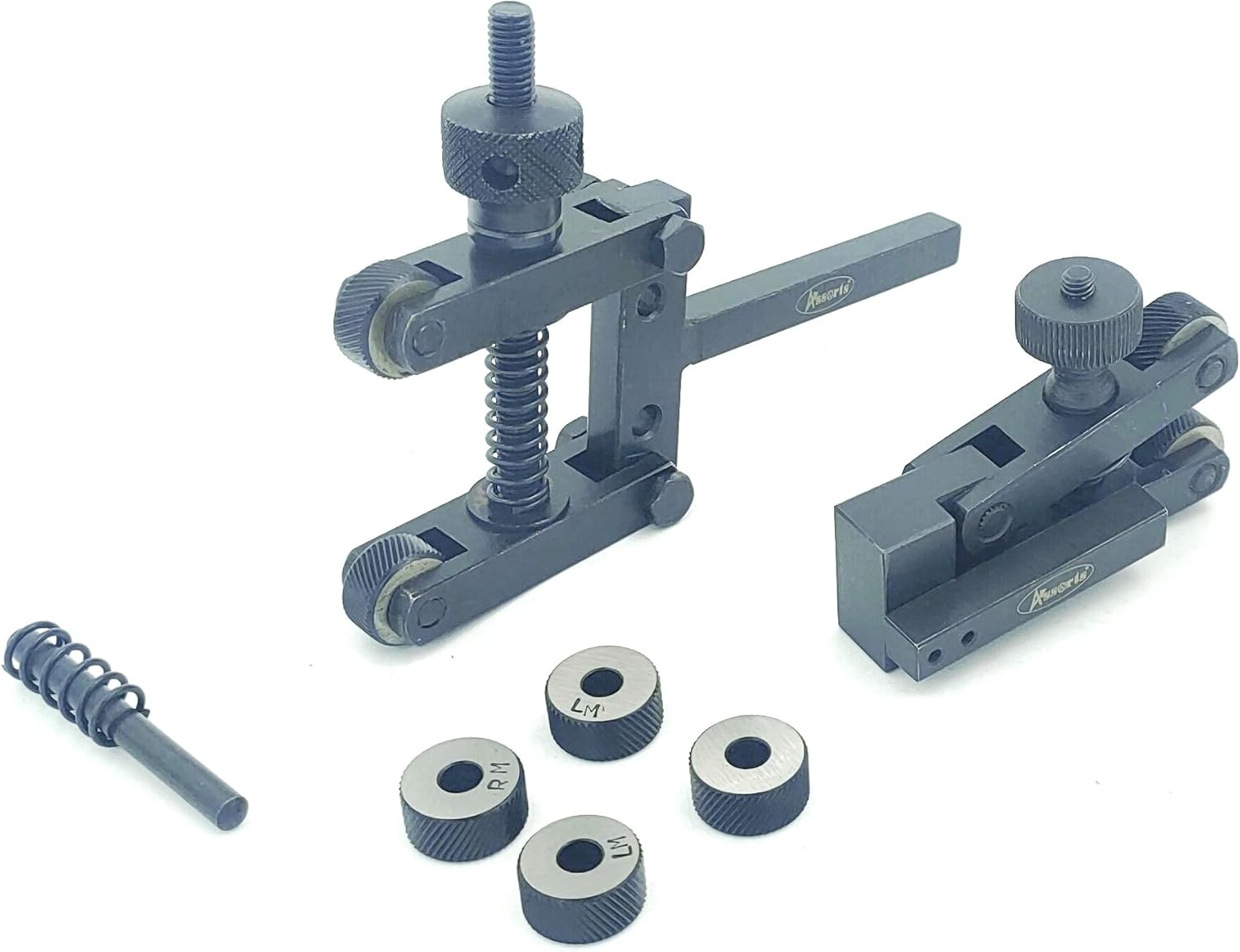

Set 2 Pc- Lathe Clamp Type Knurling Tools with 4 Spare Knurls
Product details
| Management number | 216568924 | Release Date | 2026/04/19 | List Price | $17.16 | Model Number | 216568924 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Knurling Tool # 1 Adjustable H Type Spring loaded clamp type knurling tool. Maximum Capacity- 2" ( 50 mm) Shank size 3/8" Square x 3-1/8" Inch Long II Knurl Dimensions- 3/4" (Diameter) x 3/8" (Wide) x 1/4" (Hole) Inches A spare smaller rod with an extra spring is to reduce the capacity of the knurling tool by re-bolting the knurling arms in the lower inner holes. Body is made of tool steel and fitted knurls are made of EN31 grade of tool steel -hardened to 52+/-3 HRC Knurling Tool # 2 Sturdy V clamp type knurling tool Can be clamped in Standard Holder of the Quick change tool post on the lathe. Also Compatible with Myford, Boxford, ML7 Series & or similar size lathes Knurling Capacity Ranges 5 -20 mm Holder size : 3/8" x 3/8" x 2 -1/4" Inches Paired with a left and right hand medium pitch diagonal line knurls to form a diamond texture. Knurl size - 3/4" x 3/8" x 1/4" Inches Bore. Body is made of tool steel and fitted knurls are made of EN31 grade of tool steel -hardened to 52+/-3 HRC Supplied with 2 Extra Pair of knurls as shown in the advertisement.
- Knurling Tool # 1: Adjustable H Type Spring loaded clamp type knurling tool. Maximum Capacity- 2" ( 50 mm) Shank size 3/8" Square x 3-1/8" Inch Long II Knurl Dimensions- 3/4" (Diameter) x 3/8" (Wide) x 1/4" (Hole) Inches
- Knurling Tool # 1: A spare smaller rod with an extra spring is to reduce the capacity of the knurling tool by re-bolting the knurling arms in the lower inner holes.
- Knurling no. 2 # Sturdy V clamp type knurling tool Can be clamped in Standard Holder of the Quick change tool post on the lathe. Also Compatible with Myford, Boxford, ML7 Series & or similar size lathes
- Knurling no. 2 # Knurling Capacity Ranges 5 -20 mm Holder size : 3/8" x 3/8" x 2 -1/4" Inches Paired with a left and right hand medium pitch diagonal line knurls to form a diamond texture. Knurl size - 3/4" x 3/8" x 1/4" Inches Bore.
- Both the Knurling Tools in the Set : Pls note, Body is made of tool steel and fitted knurls are made of EN31 grade of tool steel -hardened to 52+/-3 HRC. Supplied with 2 Extra Pair of knurls as shown in the advertisement.
| Size | Small |
|---|---|
| Color | Epoxy Black Finish |
| Style | knurling tool |
| Usage | knurling on lathe machine |
| Finish | Black epoxy finish for rust free life |
| Material | Tool Steel |
| Item Weight | 1.76 pounds |
| Part Number | ALKTVHS-2P |
| Manufacturer | Global Tools |
| Power Source | hand_powered |
| Handle Material | Metal |
| Number Of Pieces | 2 |
| Item model number | ALKTVHS-2P |
| Batteries Included | No |
| Batteries Required | No |
| Measurement System | English/Standard |
| Included Components | 1 Pc each of the knurling tool advertised with 4 spare knurls |
| Item Package Quantity | 56 |
| Is Discontinued By Manufacturer | No |
