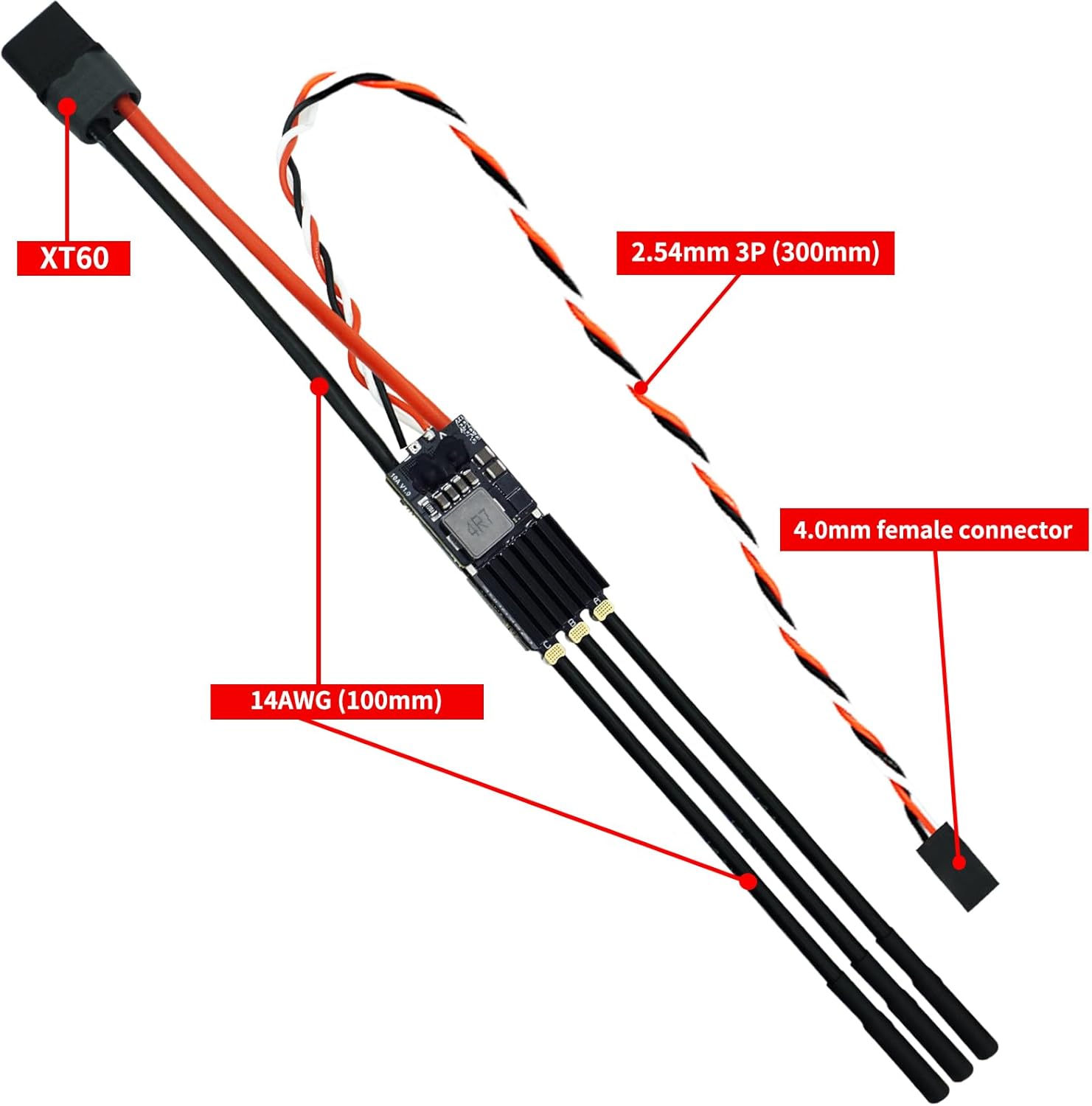

SEQURE 120A Brushless ESC 2-8S Electric Speed Controller 12V 10A BEC with XT60 & 4.0mm Bullet Plug for RC Crawler Car, Climbing Car, RC Model Ships - Escape32

SEQURE Brushless Motor Speed Controller 120A 2-8S ESC ESCape32 Firmware Specification Model: SQESC 28120 Processor: STM32G071 Firmware: ESCape32 Input voltage: DC 7V-33.6V(2-8S Lipo) Continuous Current: 120A Maximum Current: 150A BEC Output: 5V/10A, 6V/10A, 7.2V/10A, 8.2V/10A, and 12V/10A Signal Protocols: Dshot (All), PWM, Oneshot, Multishot, etc. Programmable parameter adjustments: Yes Steering Setting of the Motor: Yes Accelerator calibration: Yes Boost Timing Setting: Yes Current Detection: Yes Telemetry signal: Yes RGB LED Light: Yes Forward: Yes Reverse: Yes Brake: Yes Power Cable: 14AWG Weight: 0.76oz Dimension: 5*2*1.7cm/1.9*0.78*0.66 inches Features: **Adopting 32-bit high-performance processor STM32G071, with a working frequency of up to 64MHz and maximum support 128KHz PWM frequency. **Equipped with a high-power MOSFET and CNC metal radiator, this ESC dissipates heat effectively under high current load and works stably & continuously. **The electronic governor automatically detects the throttle signal when powered on, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot, and Multishot. **Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings. **Onboard RGB LED color light settings, multiple LED colors can be customized. **Widely used in model airplane plant protection machines, multi-rotor drones, RC model ships, and cars.

• Output Capacity: Continuous Current 120A, Peak Current 150A. Input Voltage: DC 7V-33.6V(2-8S Lipo)
• This speed controller has functions of forward, backward and brake, especially for 1/10 RC crawler cars, climbing cars, rc boats.
• BEC supports adjustable outputs of 5V/10A, 6V/10A, 7.2V/10A, 8.2V/10A, and 12V/10A, which can directly supply power to external devices such as receivers and servos.
• Support more signal protocols: Dshot (All), PWM, Oneshot, Multishot, etc.
• Safety Protection: low voltage protection, temperature protection, locked rotor protection, current protection, etc.
• Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.
