Self Centering Dowel Jig Kit, Wide Capacity Drill Guide Bushings Set Wood Doweling Jig Woodworking Joints Tools for Straight Holes

Wide Capacity Self Center Dowel Jig Kit,Doweling Jig, Drilling GuideFeatures：Easily make accurate butt joints,miterjoints and edge joints. Suitable for drilling and wood board joints, it is anideal tool for panel furniture.Drill size：1/4“（6mm）5/16“（8mm）3/8“（10mm）7/16“（11mm）1 / 2“（12mm）Six hardened steel bushings are provided:two each of 1/4-Inch, 5/16-Inch and 3/8-InchMaterial: Made of special aluminum,corrosion-resistant, black oxide film on the surface, longer service life.Clamping wide capacity: 3/8" to6". Self-centering Dowel Jig Useing : The finethread spacing of handle provides uniform and stable clamping pressure forclamping the workpiece.More suitable for creating different pinjoints，The patented automatic self-centering action of these jigs assuresaccurate center drilling every time, even on round objectsThere are 4 holes along the top of the jig,only 2 of the holes accept threaded bushings (Replaceable 1/4" 3/8"5/16").The other two holes accept 7/16" and1/2" drill bits.Package Included:1 x Dowelling Jig2 x 1/4"(6mm) Drill sleeves2 x 5/16"(8mm) Drill sleeves2 x 3/8"(10mm) Drill sleeves

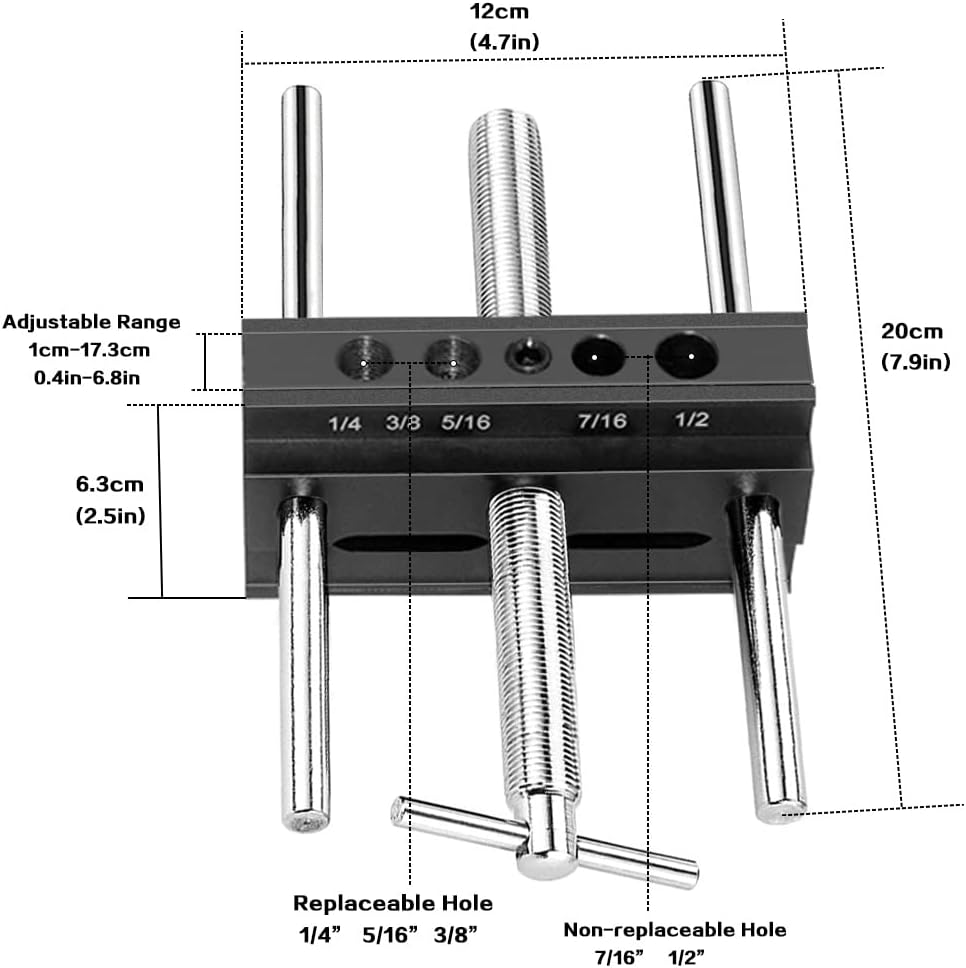

• 【Drill-hole sizes】1/4-Inch, 5/16-Inch, 3/8-Inch, 7/16-Inch and 1/2-Inch, suitable for creating different wood pin joints. There are 4 holes along the top of the jig, only 2 of the holes accept threaded bushings(Replaceable 1/4" 3/8" 5/16").the other two holes accept 7/16" and 1/2" drill bits.

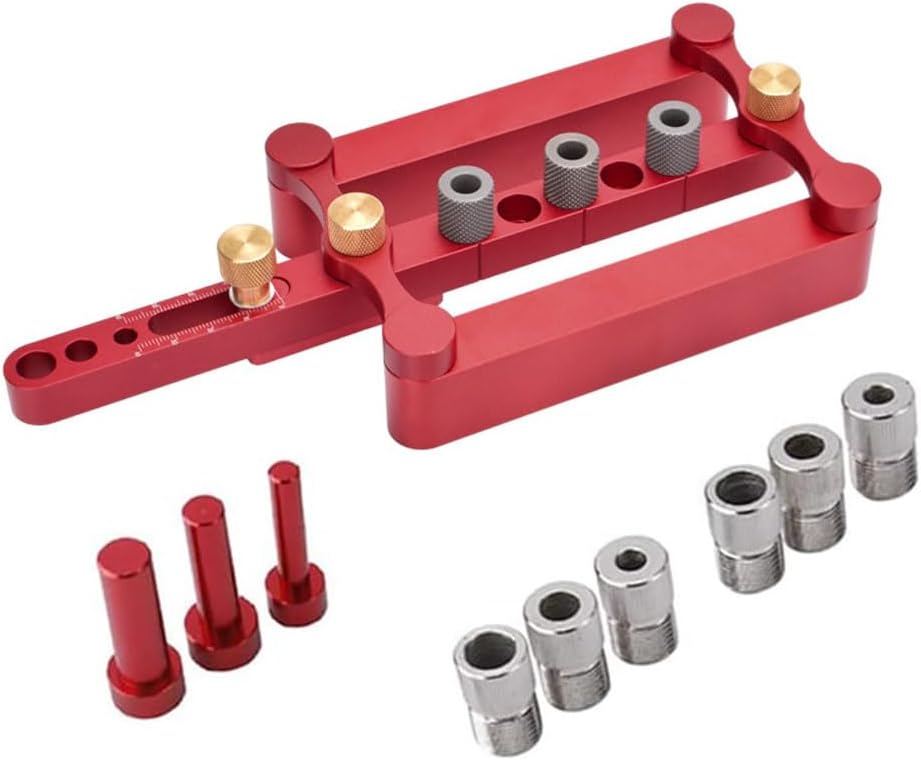

• 【Six hardened steel bushings】Two each of 1/4-Inch, 5/16-Inch and 3/8-Inch.
• 【Ability】Adjustable, it can clamp on different thickness of wood boards from 3/8 Inch to 6 Inch. Easy to install and use. Suitable for drilling and wood board joints, it is an ideal tool for panel furniture.
• 【Material】Made of special aluminum, corrosion-resistant, black oxide film on the surface, longer service life.
• 【Use】Fixture bolts provide very good threads, and provide bushes of different sizes to realize simple and convenient precise drilling, so that the positioning is more accurate, no offset or gaps are left.If there is a problem of asymmetry between the left and right distances in the use of the fixture, please refer to the description for adjustment.
