SDI Splitter 1 x 4, 1 in 4 Out SDI Distributor, Supports 3G-SDI/HD-SDI/SD-SDI Up to 1080P@60Hz

This SDI Splitter 1 x 4 is the ideal solution for expanding your SDI signal to multiple displays. The SDI Distributor 1 in 4 out is designed to split a single SDI input into four independent SDI outputs, enabling simultaneous display on four SDI monitors. Whether for broadcast studios, security setups, or commercial video systems, this SDI Splitter delivers stable, high-quality signal distribution every time. Whether you’re using legacy SD-SDI cameras or modern 3G-SDI broadcast gear, this SDI Splitter 1x4 ensures seamless signal distribution without quality loss. Note: 1. This SDI Splitter 1 x 4 only supports SDI signals; it does not work with RF, CVBS, AHD, TVI, or CVI signals. Always confirm your devices use SDI input/output to ensure compatibility with the SDI Splitter. 2. This SDI Distributor 1 x 4 does not support 4K SDI signals. 【Product Specifications】 1. Frequency Bandwidth: 3Gbps 2. Input Connector: 1 x SDI (Female BNC) 3. Output Connectors: 4 x SDI (Female BNC) 4. Supported SDI Types: 3G-SDI, HD-SDI, SD-SDI 5. Maximum Resolution: 1080P@60Hz 6. Power Supply: DC 5V/1A 7. Dimensions (WxDxH): 70mm x 145mm x 25mm 8. Weight: 352g 【Package Contents】 1 x SDI Splitter 1 x 4 1 x Power Supply 1 x User Manual

• 【1 In 4 Out Splitting Function for Simultaneous Display】This SDI Splitter 1 x 4 takes one SDI signal and splittes it into four identical outputs, all displaying content simultaneously. This eliminates the need for multiple signal sources or complex wiring – just connect your single SDI input to the SDI Splitter 1 x 4, and route the four outputs to your desired SDI monitors.
• 【Wide Compatibility with 3G-SDI/HD-SDI/SD-SDI】This SDI Distributor 1 in 4 out is highly versatile, supporting three key SDI signal types to fit most professional setups: SD-SDI: 270Mb/s bandwidth; HD-SDI: 1.485Gb/s bandwidth; 3G-SDI: 2.97Gb/s bandwidth. It handles resolutions up to Full HD 1080P@60Hz, making it suitable for both standard and high-definition SDI equipment.
• 【Long-Distance & Lossless Signal Transmission】The SDI Splitter 1 x 4 excels at long-distance signal delivery, maintaining lossless quality even over extended cables. The maximum transmission distance varies by SDI signal type, matching professional installation needs: SD-SDI: Up to 300 meters (input and output); HD-SDI: Up to 200 meters (input and output); 3G-SDI: Up to 100 meters (input and output)

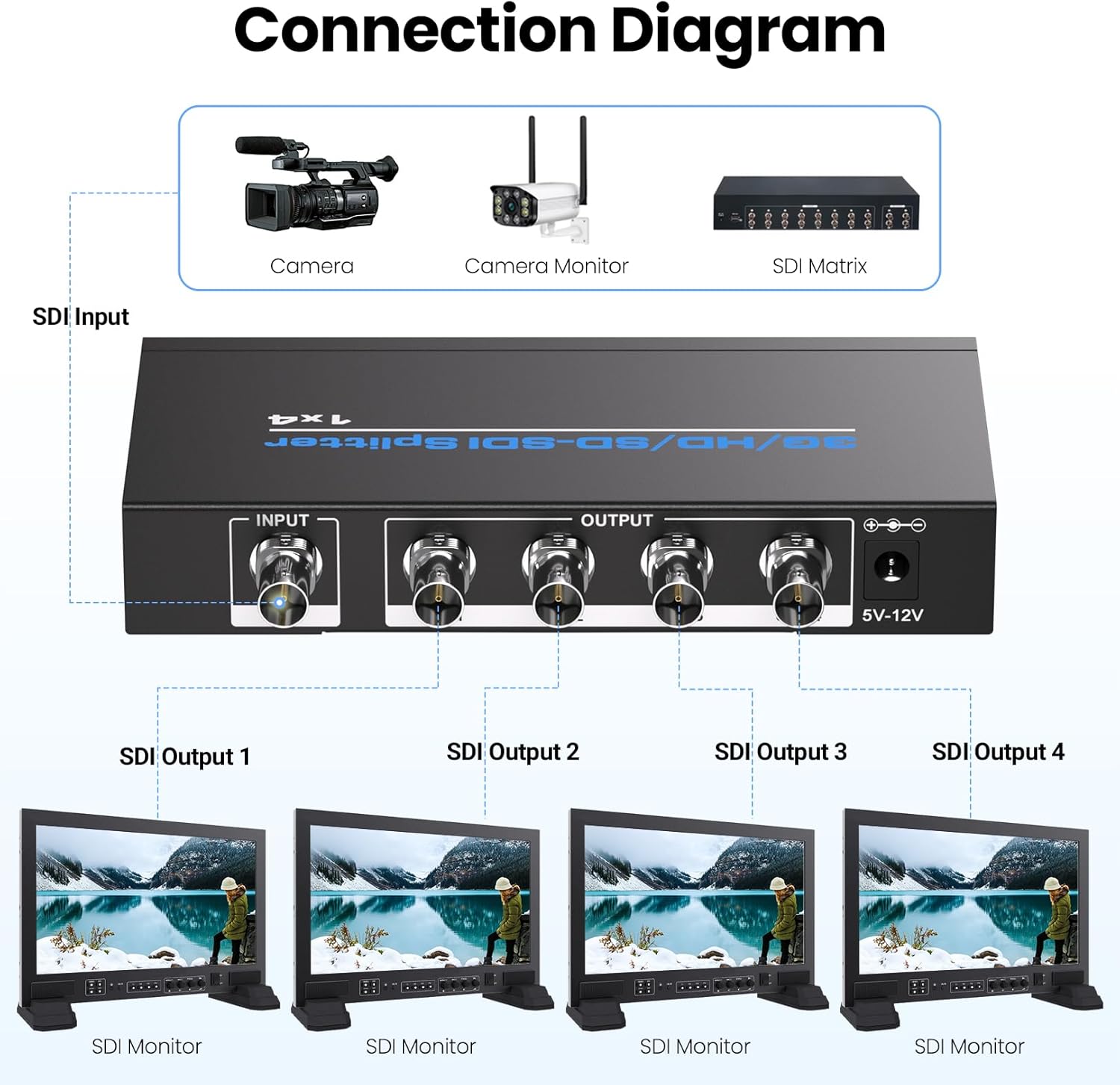

• 【Plug & Play – No Complex Setup】Using the SDI Distributor 1 x 4 is effortless, even for non-technical users. It requires no drivers, software, or manual configuration – simply plug in your SDI input, connect the four SDI outputs to monitors, and power on the SDI Splitter 1 x 4. This plug-and-play design saves time during installation and ensures the SDI Splitter 1 x 4 is ready to use immediately, minimizing downtime for your video system.
• 【Compact & Metal Shell】The SDI Splitter 1 x 4 features a sturdy metal shell, efficiently releases heat generated during operation, keeping the SDI Splitter stable even during 24/7 continuous use (critical for security monitoring or live broadcasts). Its compact size also makes the SDI Splitter easy to mount in equipment racks or fit into tight spaces.
