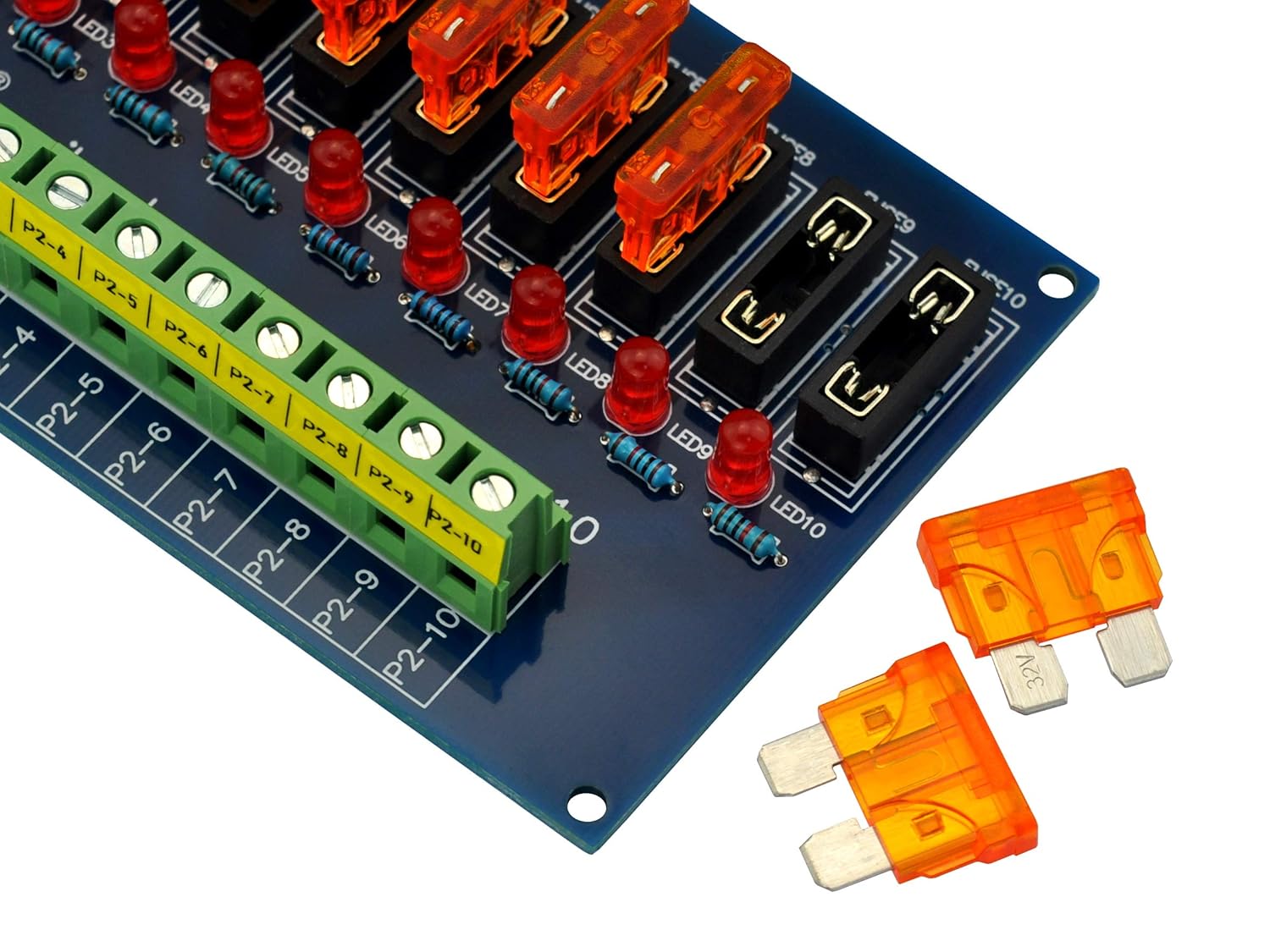

Screw Mount 10 Position Power Distribution Fuse Module Board, for 5 to 32V
$28.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by democodigos.pollafutbol.co
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$28.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by democodigos.pollafutbol.co
Free 30-day returns Details
Product details
| Management number | 218134471 | Release Date | 2026/05/03 | List Price | $11.20 | Model Number | 218134471 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Work voltage: AC or DC 5~32V, total current rating 40Amp. Dimensions: 150mm x 72.5mm x 29mm (W x L x H).
- Input terminals: pitch - 7.62mm/0.3", current 30A for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.
- P1 output terminals: pitch - 5.08mm/0.2", maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
- P2-1 to P2-10 output terminals: pitch - 7.5mm/0.295", maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw. Fuse holders for Medium Blade ATO/ATC Fuse, factory-installed fuses 5Amp. with fuse fail indication function
- FR-4 fiber glass PCB, dual copper layers.
| Gauge | 10.0 |
|---|---|
| Model | HD037 |
| Pitch | 7.62 Millimeters |
| Voltage | 32 Volts |
| Brand Name | HCDC |
| Part Number | HD037 |
| Manufacturer | Xiken Electronic Technology Co., Ltd. |
| Material Type | Copper |
| Mounting Type | Screw Mount |
| Connector Type | Screw |
| Current Rating | 40 Amps |
| Number Of Poles | 10 |
| Centerline Length | 176.93 Millimeters |
| Number Of Contacts | 11 |
| Number of Positions | 10 |
| Item Dimensions W x H | 5.91"W x 1.14"H |
