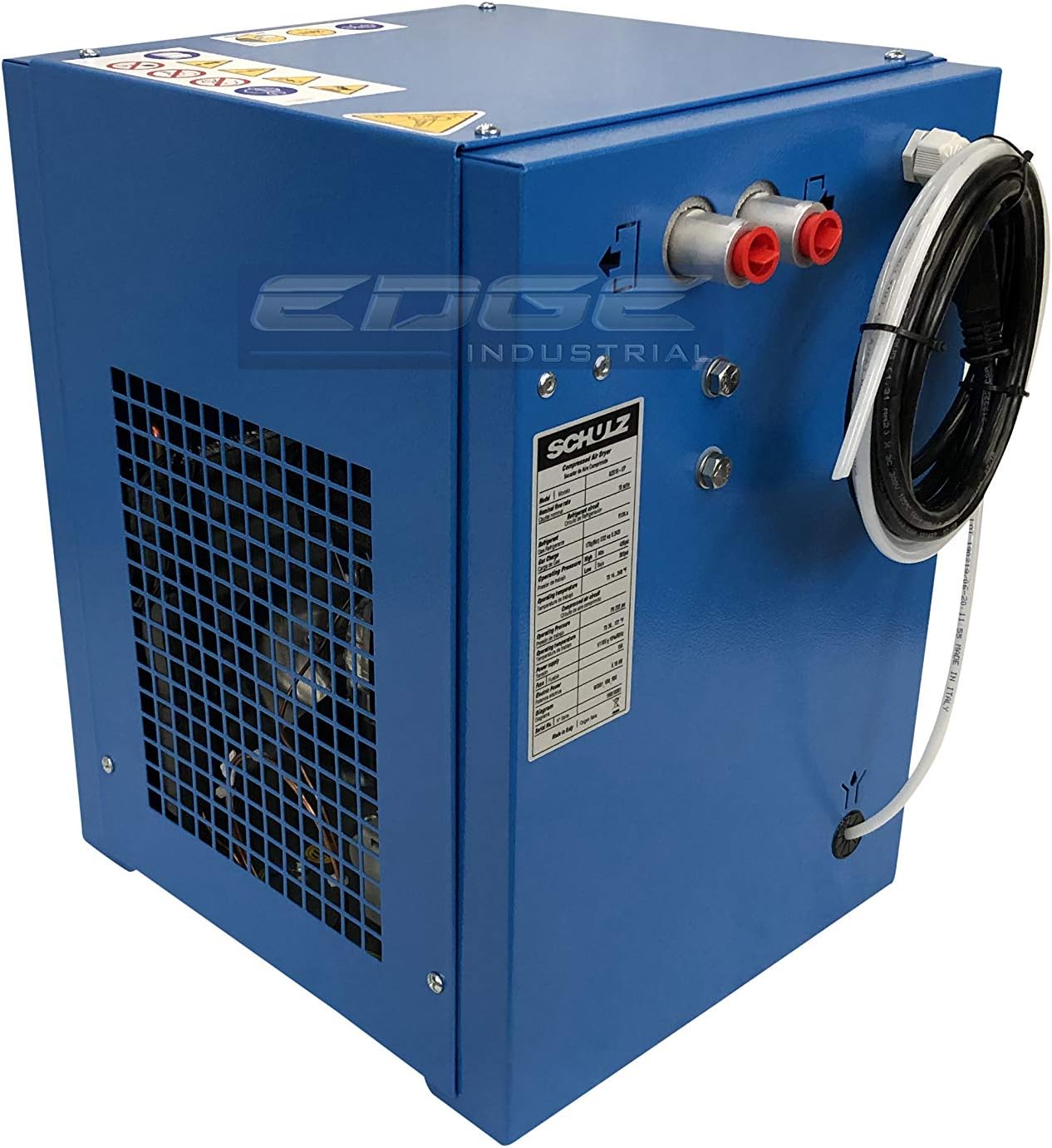

SCHULZ REFRIGERATED AIR DRYER FOR AIR COMPRESSOR, COMPRESSED AIR SYSTEMS, 10 CFM, FOR 2 & 3 HP COMPRESSORS (WITH PRE-FILTER)

COMPRESSED AIR CONTAINS NATURALLY OCCURRING MOISTURE, WHICH CAN NEGATIVELY AFFECT COMPRESSED AIR APPLICATIONS THAT REQUIRE MOISTURE FREE AIR. DRYERS ARE A COMMON SOLUTION FOR REMOVING SUCH MOISTURE. ONE OF THE MOST POPULAR OPTIONS ARE REFRIGERATED AIR DRYERS, DUE TO ITS ABILITY TO REACH AN ACCEPTABLE DEW POINT IN. NON-CYCLING REFRIGERATED DRYERS, THE REFRIGERANT ACTUALLY CIRCULATES CONTINUOUSLY THROUGHOUT THE SYSTEM. BECAUSE BOTH THE FLOW OF COMPRESSED AIR AND AMBIENT TEMPERATURES VARY, A HOT GAS BYPASS VALVE IS USED TO REGULATE THE TEMPERATURE OF THE REFRIGERANT WHILE PREVENTING FREEZING WITHIN THE SYSTEM. IT IS VITAL THAT LIQUID WATER AND OIL ARE REMOVED FROM YOUR COMPRESSED AIR LINES BEFORE ENTERING ANY REFRIGERATED AIR DRYER. LIQUID WATER AND/OR OIL FROM YOUR COMPRESSOR CAN DAMAGE THE INTERIOR COMPONENTS OF THE DRYER RESULTING IN DRYER NON-PERFORMANCE OR FAILURE. WHEN YOU SELECT THE " WITH PRE-FILTER OPTION" WE PROVIDE YOU WITH A STAGE 1 WATER FILTER WITH SEMI-AUTO DRAIN, IN ADDITION TO A STAGE 2 COALESCING FILTER / OIL REMOVING FILTER. PLEASE SEE OUR ATTACHED PICS. THE STAGE 1 WATER TRAP HAS A 5 MICRON ELEMENT THAT WILL REMOVE 95% OF THE MOISTURE WATER FROM YOUR COMPRESSED AIR LINES. THE UNIT COMES WITH A 5oz POLY BOWL WITH METAL BOWL GUARD. THE STAGE 1 WATER FILTER HAS A SEMI AUTO DRAIN, WHICH MEANS IT WILL AUTOMATICALLY RELEASE MOISTURE WHEN THERE IS LESS THAN 15PSI TO THE BOWL. SIMILAR TO AN OVERNIGHT DRAIN. THE STAGE 2 COALESCING FILTER, ALSO KNOWN AS AN OIL REMOVING FILTER, REMOVES THE REST OF THE MOISTURE VAPOR THAT MADE ITS WAY THROUGH THE STAGE 1 WATER FILTER, IN ADDITION TO ANY RESIDUAL OIL FROM YOUR COMPRESSED AIR LINES. THIS STAGE 2 UNIT ALSO COMES WITH 5oz POLY BOWL AND SEMI AUTO DRAIN, HOWEVER ITS VERY UNLIKELY THAT ANY MOISTURE BUILD UP WILL OCCUR IN THIS STAGE 2 BOWL. ADS DRYER INFO: 1-PHASE 115V, 14 AWG WIRE REQUIRED, DEW POINT: 41 DEGREES FAHRENHEIT AT 100 PSI, REFRIGERANT FLUID TYPE: R134a, DRYER IS 46 LBS

• NEW 10 CFM SCHULZ NON-CYCLING REFRIGERATED AIR DRYER WITH WATER FILTER + OIL REMOVING COALESCING FILTER
• THIS IS A COMPLETE KIT OF EVERYTHING YOU NEED FOR MOISTURE AND OIL FREE ULTRA DRY AIR (COMPRESSED AIR PIPING NOT INCLUDED)

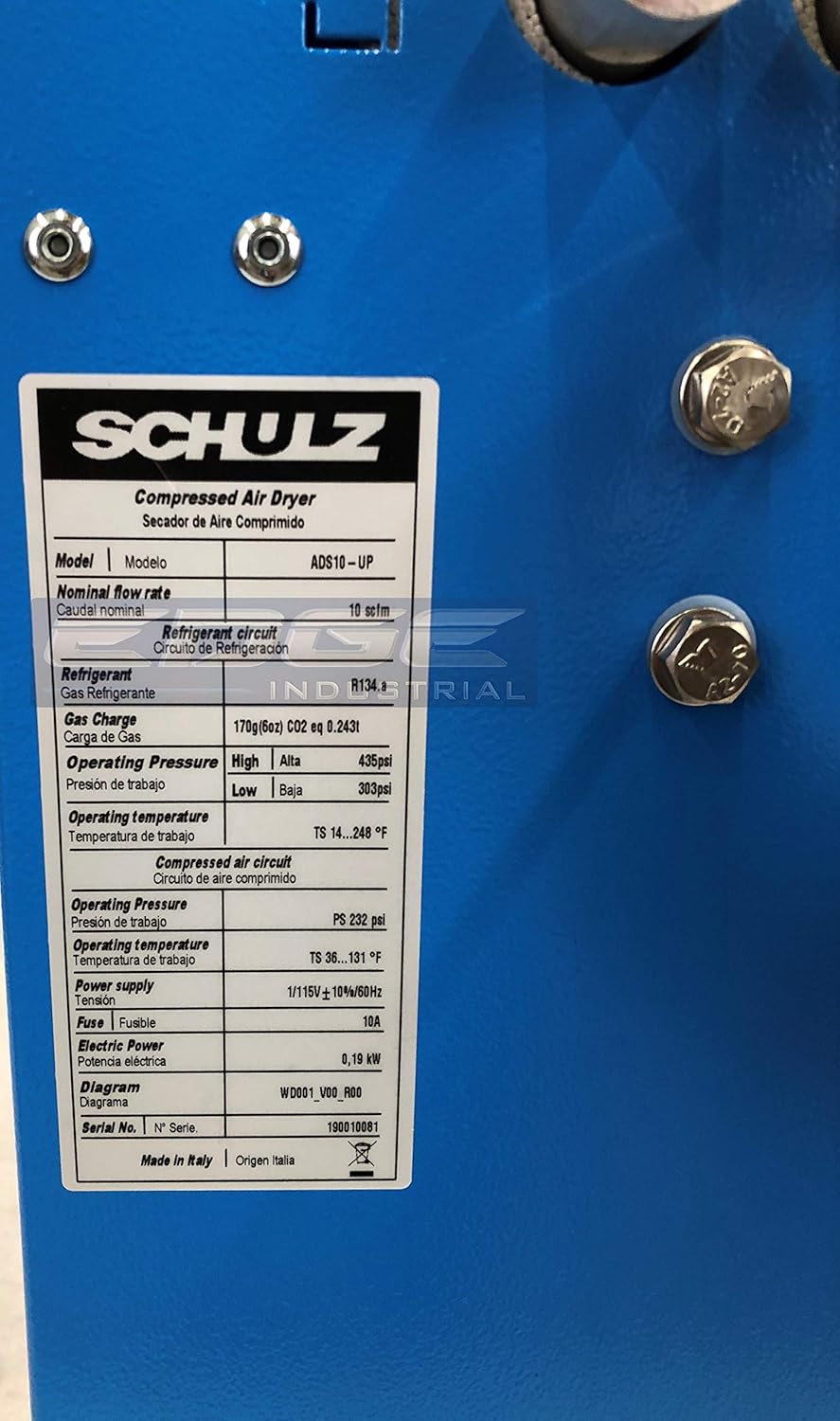

• DRYER: 10 CFM @ 100 PSI / 3/8" FEMALE NPT INLET & OUTLET / DEW POINT: 41 DEGREES / 175 PSI MAX INLET & 150 PSI MAX OUTPUT PRESSURE / MAKE SURE YOUR COMPRESSOR OUTPUT IS A MAX OF 150 PSI SO TO NOT DAMAGE THE STAGE 1 & 2 FILTERS
• STAGE 1: WATER FILTER/TRAP / 175 PSI MAX INPUT & 150 PSI MAX OUTPUT PRESSURE / 5 MICRON ELEMENT REMOVES 95% OF MOISTURE + SEMI AUTO DRAIN / OVERNIGHT DRAIN
• STAGE 2: COALESCING FILTER RATED / 175 PSI MAX INPUT & 150 PSI MAX OUTPUT / 0.01 MICRON ELEMENT REMOVES ALL REMAINING MOISTURE + OIL FROM COMPRESSED AIR LINES ALSO EQUIPPED WITH POLY BOWL AND SEMI AUTO DRAIN
