RP2350 2.8inch Touch Display Dev Board, RP2350 MCU Board with 2.8inch LCD, 240×320 Pixels, 5-Point Capacitive Touch IPS SPI Display, Dual-core&Dual-Architecture, Multiple Interfaces

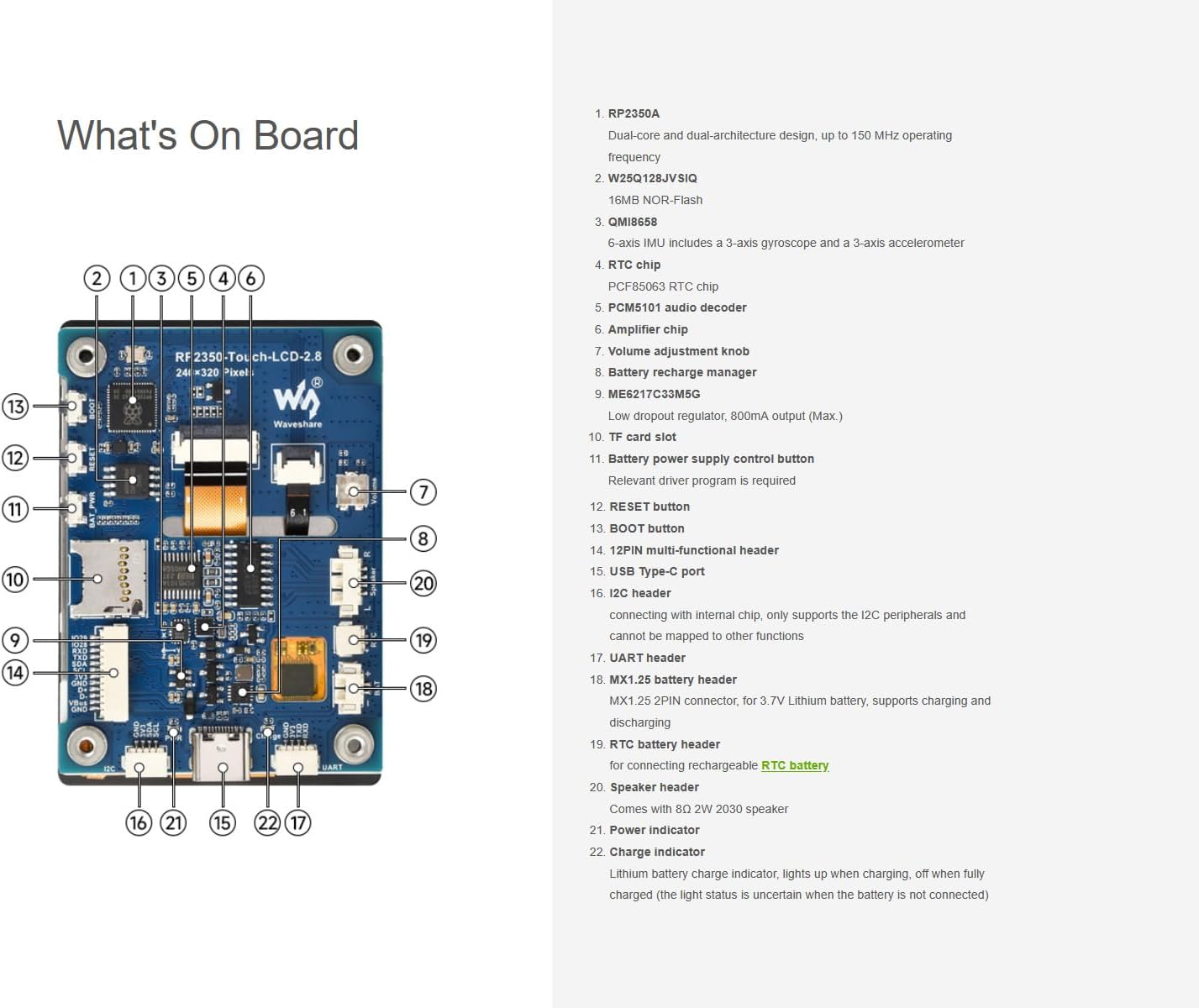

Overview RP2350-Touch-LCD-2.8 is a low-cost, high-performance MCU board designed by Waveshare. Onboard 2.8inch capacitive touch display, capable of smoothly running GUI programs such as LVGL. Integrates Lithium battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC chip, and so on, making it easy to develop and integrate into products quickly. Features --RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom --Adopts unique dual-core and dual-architecture design: dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz --520KB of Static Random-Access Memory, and 16MB onboard Flash memory --Onboard 2.8inch LCD display, 240×320 resolution, 262K color --Supports capacitive touch function controlled via I2C interface, 5-point touch, with interrupt support --Adapting UART, I2C and some IO interfaces, integrates full-speed USB port --Onboard speaker, QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc. --Drag-and-drop programming using mass storage over USB --Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios Package Content RP2350-Touch-LCD-2.8 x1 8Ω 2W speaker ×1 SH1.0 4PIN cable ×2 SH1.0 12PIN cable ×1 NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!

• RP2350 2.8inch capacitive touch display development board based on Raspberry Pi RP2350 microcontroller chip, adopts unique dual-core and dual-architecture design, 520KB of Static Random-Access Memory, 16MB onboard Flash memory
• RP2350 MCU board with onboard 2.8inch LCD display, 240×320 resolution, 262K color, IPS display panel, capable of smoothly running GUI programs such as LVGL. Supports capacitive touch function controlled via I2C interface, 5-point touch, with interrupt support

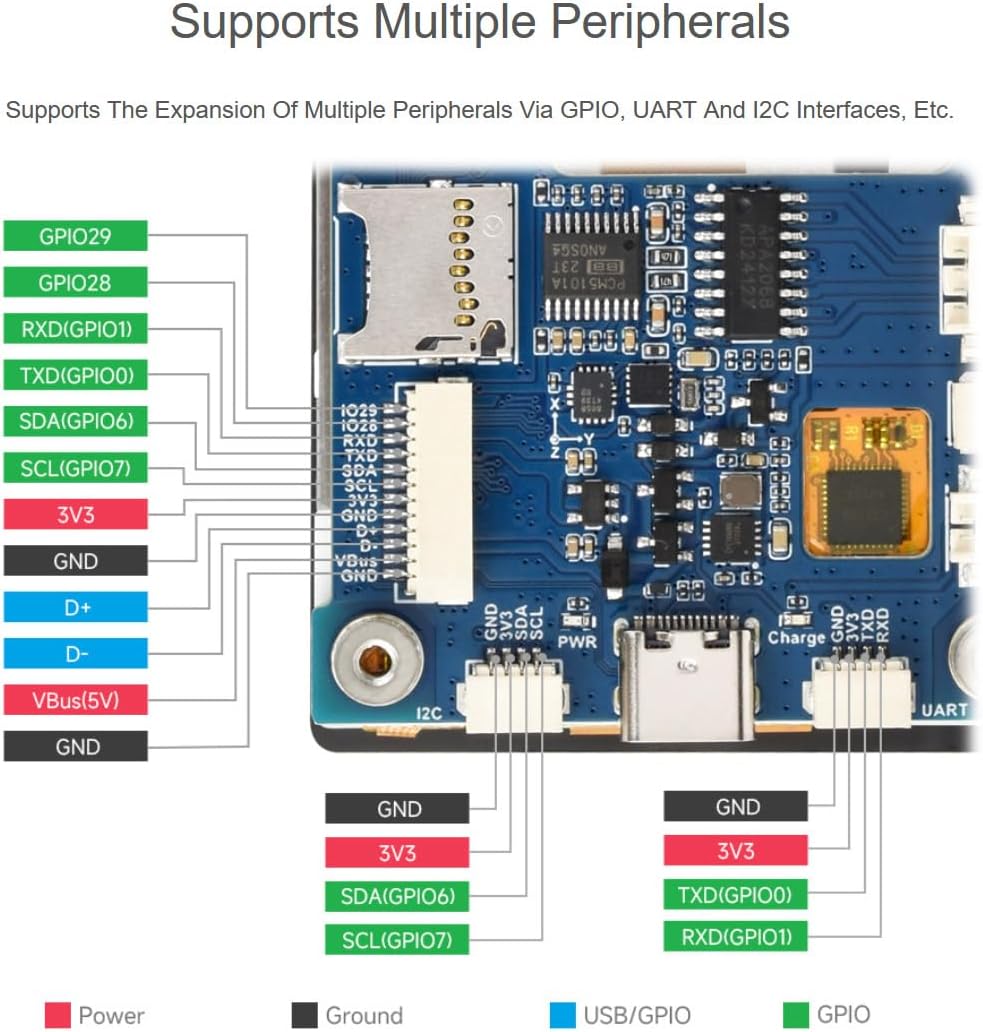

• Supports the expansion of multiple peripherals via GPIO, UART and I2C interfaces, etc. Integrates full-speed USB port. Drag-and-drop programming using mass storage over USB
• Onboard speaker, QMI8658 6-axis sensor, RTC sensor, TF card slot, etc. Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
• Supports C/C++, MicroPython, Arduino IDE
