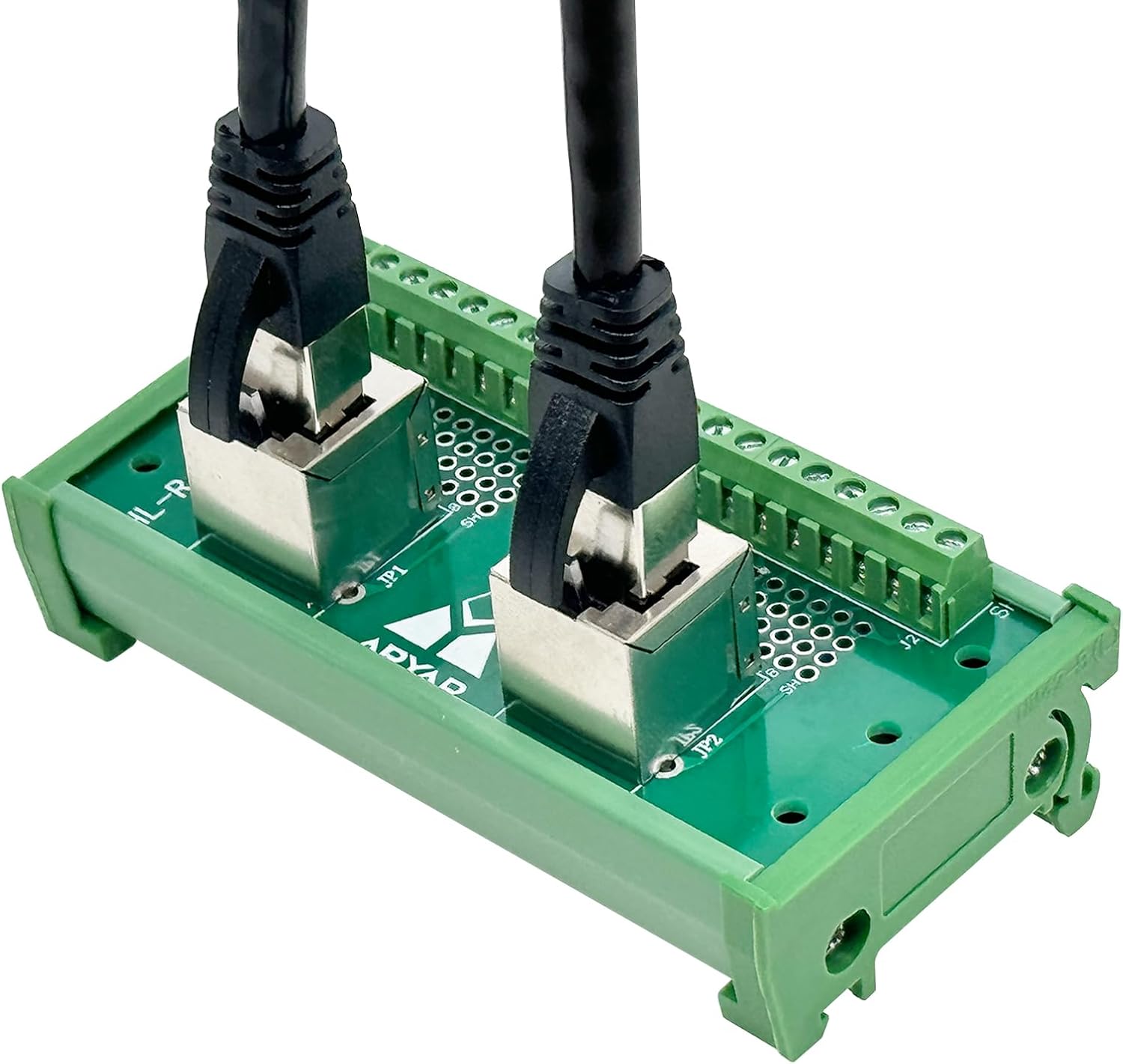

RJ45 8P8C DIN Rail Mount Ethernet Connector Distribution Breakout Board, Two Way RJ45 Vertical Jack Terminal Block Connector (Pack of 2)

Specifications: This board features a prototyping area to enable in-circuit modifications as well as easy probing/diagnostics. The prototyping grid has a standard 0.1" pattern to enable compatibility with a variety of components. The din rail case on this model allow it to be easily used with a 35mm DIN rail system, making this board perfect for industrial applications. Name: RJ45 2-Way Screw Terminal Breakout Board. Pitch: 3.81mm/0.15" screw terminal block. FR-4 fiber glass PCB, dual copper layers. PCB dimensions: 90 x 43mm. Rated voltage: 150V AC RMS. Rated current: 1.5A. Contact Resistance: 40mΩ Max. Insulation Resistance: 500MΩ MIN. Operating Temperature: -40ºC to 80ºC Terminal block specifications: Wire range: 26 ~ 16AWG. Screws: M2, steel, Cr3+ Zn plated. Pin header and Cage: Brass. Package Content: 1PCS RJ45 Ethernet Connector Breakout Board

• The information below is per-pack only
• 【Easy to Use】This RJ45 breakout board provides a convenient method of accessing all the contacts of an 8P8C connector. Each of the 9 connections are brought out to a screw terminal for fast and secure termination to wires.
• 【Compact Design】This compact board will fit in tight spaces and has mounting holes to allow it to be securely fastened ensuring a solid connection.
• C45 DIN rail mounting (width 35mm), 15mm din rail compatible. The plastic enclosure on this model protects the board, and increases the overall durability.
• FR-4 fiber glass PCB, dual copper layers. PCB dimensions: 90 x 43mm (W x L). Easy access for probing and debugging.
• Pitch 3.81mm/0.15" screw terminal block.
