Removable Spindle for 3,500lb Torsion Axles EZ lube Torsion Axles Trailer #84 Tie Down Engineering

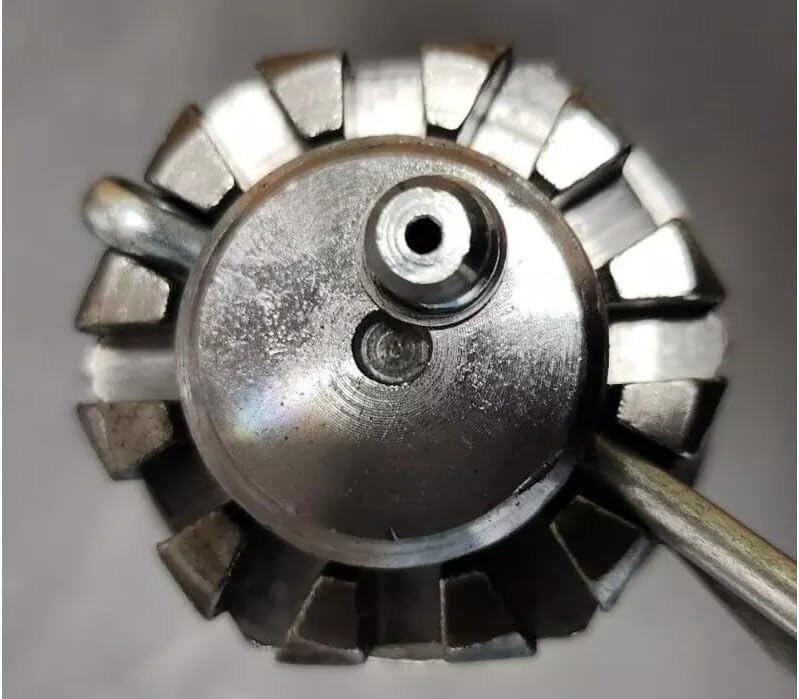

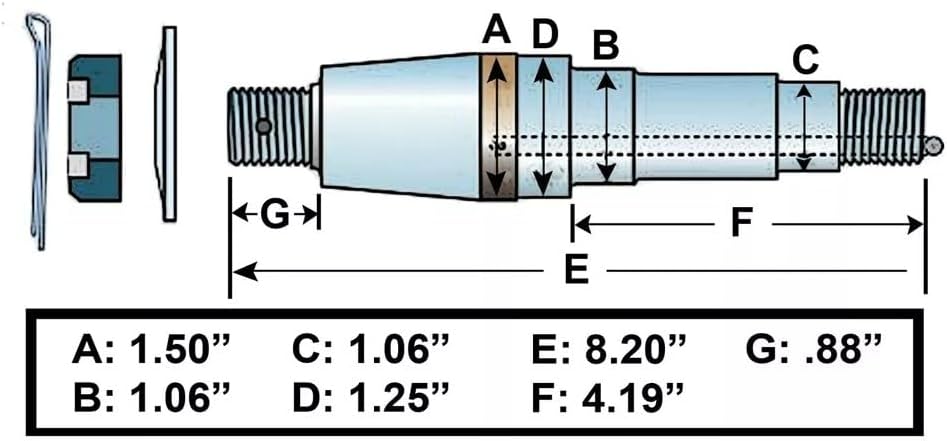

This is a replacement removable Spindle for Tie Down Engineering Brand 3,500lb Torsion Axles. The Tie Down Brand torsion axles will have removable spindles, allowing for easy replacement when they become damaged or corroded. You will notice the presence of a Castle Nut on the rear of the spindle with a cotter pin. To remove your existing spindle, first loosen your trailers lug nuts, support the weight of the trailer, remove your tire and wheel assembly. Knock off your trailers Dust Cap, then remove your outer castle nut. This will allow you to slide off your trailers hub. On the Back of your Removable Spindle you will need to remove the Cotter Pin and take the Castle Nut off. Due to rust, this may require a larger wrench and pry bar. To re-install your replacement, simply do the opposite. This 3,500lb Spindle is most commonly seen on trailers with 175/80 13 tires, 205/75 14 tires, and 205/75 15 tires on single and tandem axle trailers. Your wheel will typically have a 5 Lug Bolt Pattern. The Spindle uses a 1 3/8" Inner Bearing and a 1 1/16" Outer Bearing with the Standard 1.72" ID Grease Seal. These are Accu-Lube Spindles, meaning you grease through the outer Zirc Fitting,

• Tie Down Brand torsion axles will have removable spindles,
