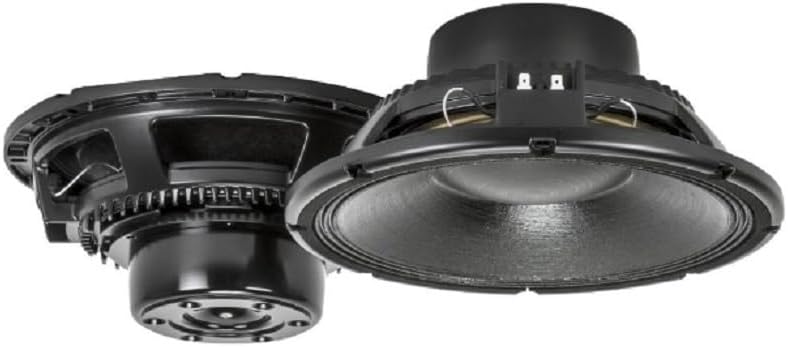

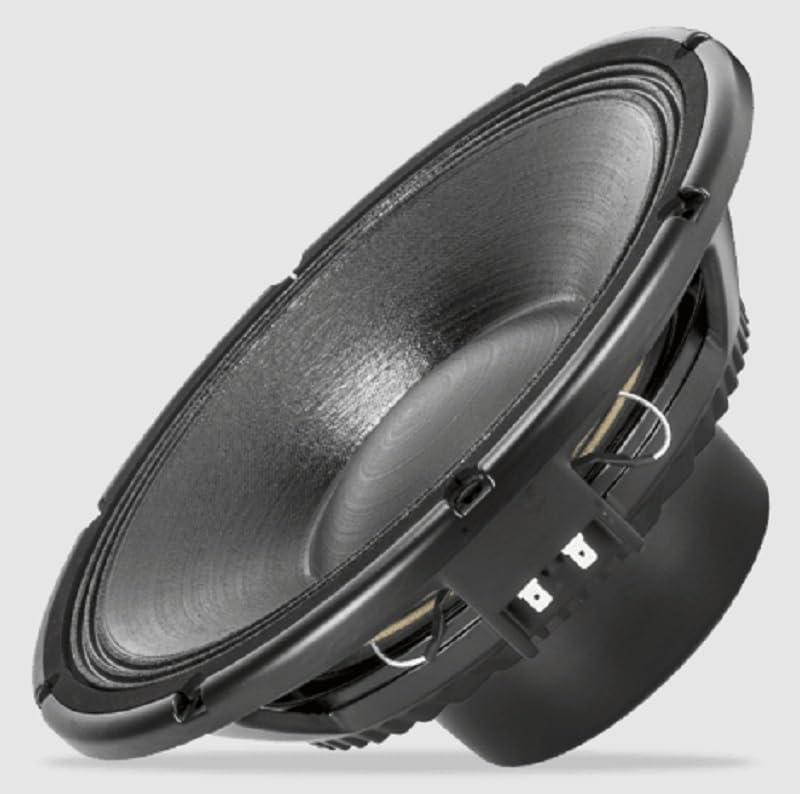

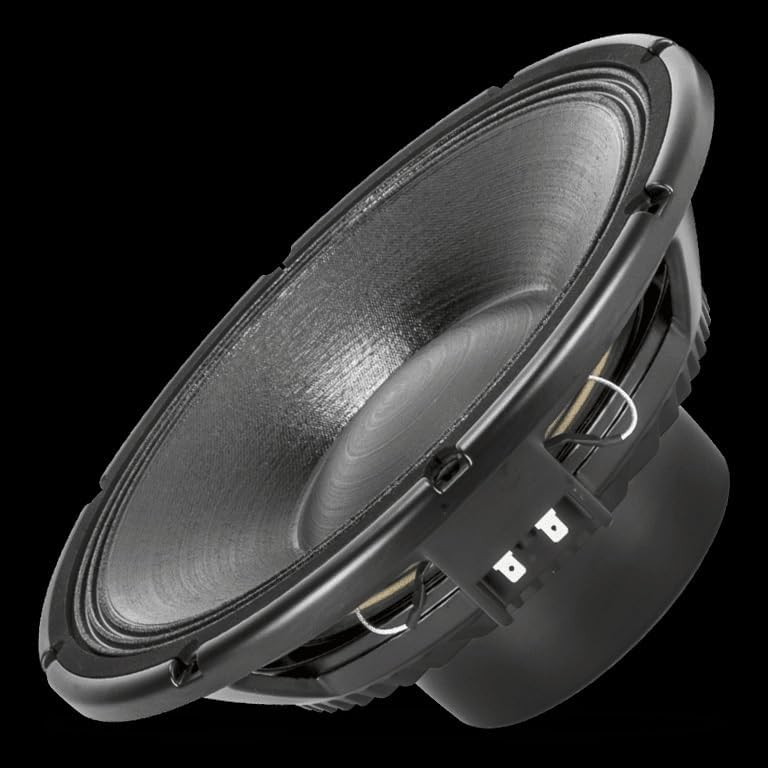

RCF MB12N405 12-inch Neo Mid Bass Woofer with Hypervented 1000-Watt Rms 2000-Watt Peak 4" Fiberglass Aluminum Voice Coil Dual Forced Air Vent 8-Ohm

"The MB12N405 is a hypervented neo mid-bass design with a linear frequency response and very high efficiency. To get this performance the magnetic structure use a high flux neo disc and the cone assembly a fibre loaded exponential shape along with a high excursion triple roll, constant geometry surround. The fibreglass former and aluminium voice coil provide a very high power handling maintaining a light mass and a proper Q factor for bass alignment. || ""FEATURES || 4-inch, fiberglass inside/outside aluminum voice coil || 2000W continuous program power handling || 98.5 dB Sensitivity || 50 Hz – 2 kHz Frequency range || Dual-forced air ventilation for minimum power compression || Triple roll surround & exponential cone geometry || SPECIFICATIONS || Nominal Diameter : 12 inch || Rated Impedance : 8 ohm || Program Power (watt) : 2000 W || Power handling capacity : 1000 W || Sensitivity : 98.5 dB || Frequency range : 50 - 2000 Hz || "" ""Effective piston diameter : 10.24 inch || Max. Excursion Before Damage : 2.09 inch || Minimum Impedance (ohm) : 6.6 ohm || Voice Coil Diameter : 4.0 inch || Voice Coil Winding Material : Aluminum || Voice Coil Length : 0.79 inch || Number of layers : 2 || Kind of layers : inside/outside || Top Plate Thickness : 0.47 inch || Cone Design : Curved || Surround Material : Polycotton || Surround Design : Triple roll || Magnets : Neodymium || Hypervented magnetic structure : Yes || Spider : 1 || "" ""THIELE - SMALL PARAMETERS || Frequency(Fs) : 52Hz || DC resistance (Re) (ohm) : 5.00 ohm || Mechanical factor : 6.00 Qms || Electrical factor : 0.21 Qes || Total factor : 0.20 Qts || Bl factor (Bl) (T x m) : 23.50 T x m || Effective moving mass (Mms) : 73.0 g || Equivalent Cas air loaded (Vas) : 53.0 liters || Effective piston area (Sd) : 0.050 m2 || Max. linear excursion (Xmax) : 7 mm || Voice coil inductance @ 1kHz (Le1k) : 1.20 mH || Half-space efficiency (Eff) : 0.0331 || "" ""MOUNTING INFORMATION || Overall diameter : 12.6 inches || Bolt circle diameter : 11.54-11.97 inch || Bolt hole diameter : 0.28 inch || Front mount baffle cut-out : 11.1 inch || Rear mount baffle cut-out : 11.18 inch || Volume occupied by the driver : 0.11 ft || SIZE || Height : 5.24 inches || Diameter : 12.6 inches || Weight : 16.98 lbs || SHIPPING INFORMATION || Height : 7.64 inches || Width : 13.94 inches || Depth : 14.33 inches || Weight : 19.18 lbs ||

• FEATURES || 4-inch, fiberglass inside/outside aluminum voice coil || 2000W continuous program power handling || 98.5 dB Sensitivity || 50 Hz – 2 kHz Frequency range || Dual-forced air ventilation for minimum power compression || Triple roll surround & exponential cone geometry || SPECIFICATIONS || Nominal Diameter : 12 inch || Rated Impedance : 8 ohm || Program Power (watt) : 2000 W || Power handling capacity : 1000 W || Sensitivity : 98.5 dB || Frequency range : 50 - 2000 Hz ||
• Effective piston diameter : 10.24 inch || Max. Excursion Before Damage : 2.09 inch || Minimum Impedance (ohm) : 6.6 ohm || Voice Coil Diameter : 4.0 inch || Voice Coil Winding Material : Aluminum || Voice Coil Length : 0.79 inch || Number of layers : 2 || Kind of layers : inside/outside || Top Plate Thickness : 0.47 inch || Cone Design : Curved || Surround Material : Polycotton || Surround Design : Triple roll || Magnets : Neodymium || Hypervented magnetic structure : Yes || Spider : 1 ||
• THIELE - SMALL PARAMETERS || Frequency(Fs) : 52Hz || DC resistance (Re) (ohm) : 5.00 ohm || Mechanical factor : 6.00 Qms || Electrical factor : 0.21 Qes || Total factor : 0.20 Qts || Bl factor (Bl) (T x m) : 23.50 T x m || Effective moving mass (Mms) : 73.0 g || Equivalent Cas air loaded (Vas) : 53.0 liters || Effective piston area (Sd) : 0.050 m2 || Max. linear excursion (Xmax) : 7 mm || Voice coil inductance @ 1kHz (Le1k) : 1.20 mH || Half-space efficiency (Eff) : 0.0331 ||
• MOUNTING INFORMATION || Overall diameter : 12.6 inches || Bolt circle diameter : 11.54-11.97 inch || Bolt hole diameter : 0.28 inch || Front mount baffle cut-out : 11.1 inch || Rear mount baffle cut-out : 11.18 inch || Volume occupied by the driver : 0.11 ft || SIZE || Height : 5.24 inches || Diameter : 12.6 inches || Weight : 16.98 lbs || SHIPPING INFORMATION || Height : 7.64 inches || Width : 13.94 inches || Depth : 14.33 inches || Weight : 19.18 lbs ||
• The MB12N405 is a hypervented neo mid-bass design with a linear frequency response and very high efficiency. To get this performance the magnetic structure use a high flux neo disc and the cone assembly a fibre loaded exponential shape along with a high excursion triple roll, constant geometry surround. The fibreglass former and aluminium voice coil provide a very high power handling maintaining a light mass and a proper Q factor for bass alignment.
