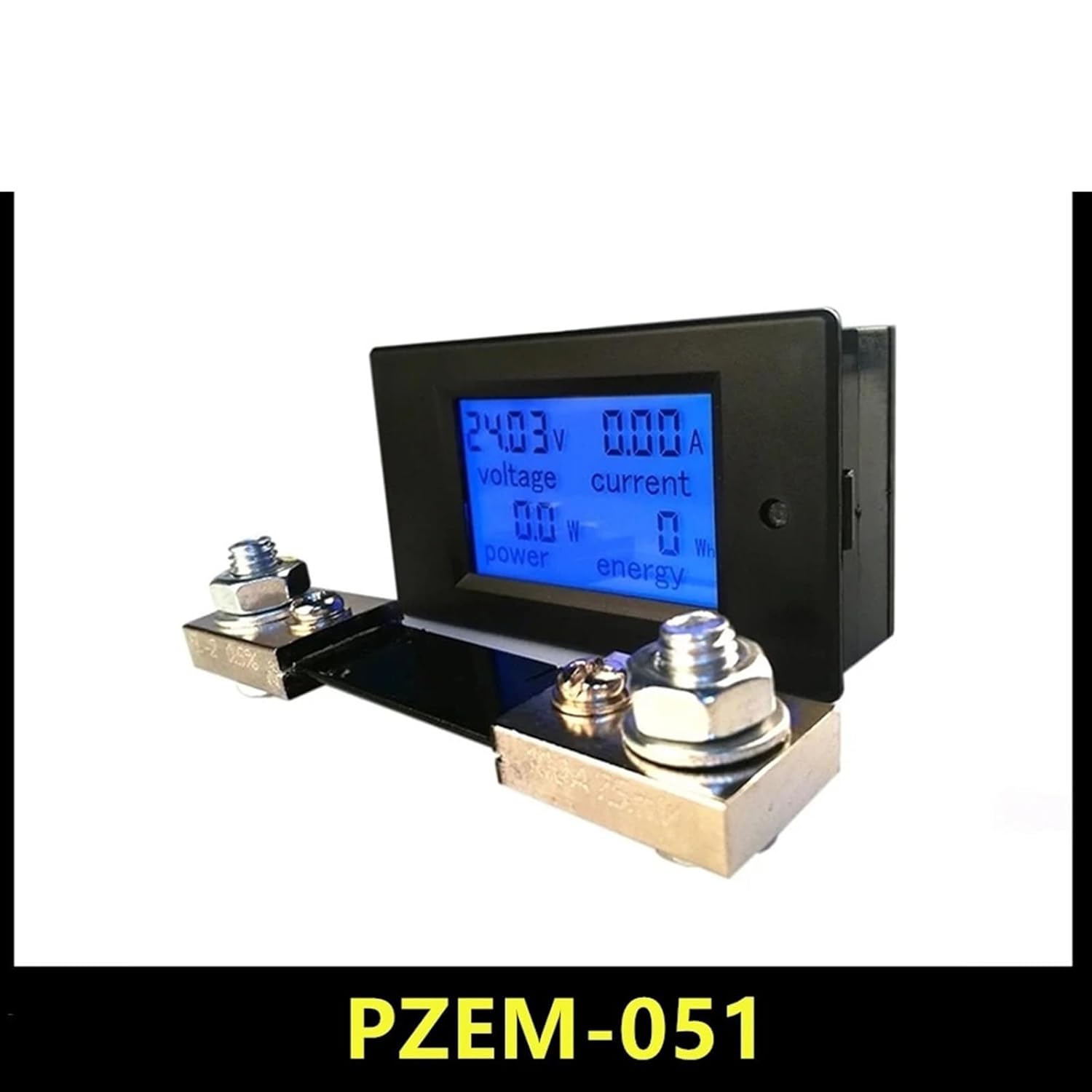

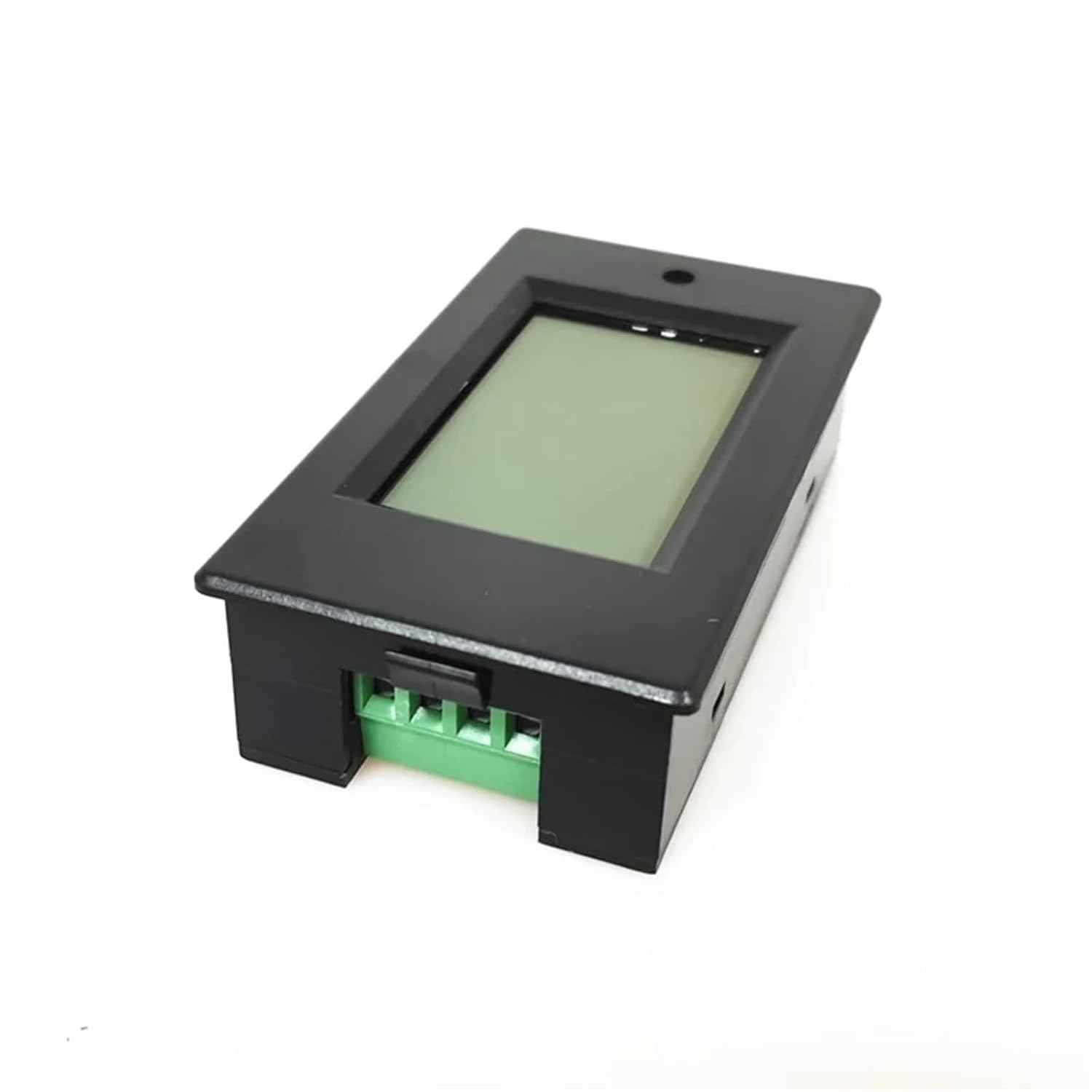

PZEM-051 DC Digital Ammeter Voltmeter 6.5-100V 4 IN1 LCD Motorcycle Voltage Current Power Energy Monitor(PZEM-051 50A shunt)

AmmetersProduct description1. Working voltage: 6.5 ~100VDC2. Test voltage: 6.5 ~100VDC3. Rated power: 100A/10000W4. Measurement accuracy: 1.0 gradeDisplay format1. Power: test range: 0~10kWWithin 1KW, the display format is 0.0~999.9W;1KW and above, the display format is 1000~9999W.2. Energy: test range: 0~9999kWhWithin 10KWh, the display format is 0~9999Wh;10kWh and above, the display format is 10~9999kWh.3. Voltage: test range: 6.5~100VDisplay format: 6.50~99.99V4. Current: test range: 0~100ADisplay format: 0.00~99.99Key1. Backlight controlShort press the key to turn on or off the backlight, the backlight has memory function, it can store the on or off state when power off.2. Reset energyStep1: Long press the key until the power display area display "CLr", then release the key.Step2: At this moment, the energy is flashing to prompt this is the energy reset state, if short press the key again, then the energy value is cleared and exit the reset flashing state.Step 3: If there is no operation within 5 seconds, it means the energy value is not cleared and will exit the reset state.3. Set voltage alarm thresholdStep1: Long press the key until the power display area display "SET", then release the key.Step2: After enter this state, the voltage area display the current high voltage alarm value, the current area display the current low voltage alarm value and the last digit begin to flash, then you can short press to plus 1, when there is no operation over 3 seconds, it will switch the digit position automatically, from the high voltage alarm value to the low voltage alarm value, there are total six digits, the range of the voltage alarm threshold is 6.5 ~99.9V;Step3: After finish the setting, long press the key until the screen display "PASS" ,that means you set successfully and will exit the setting sta
