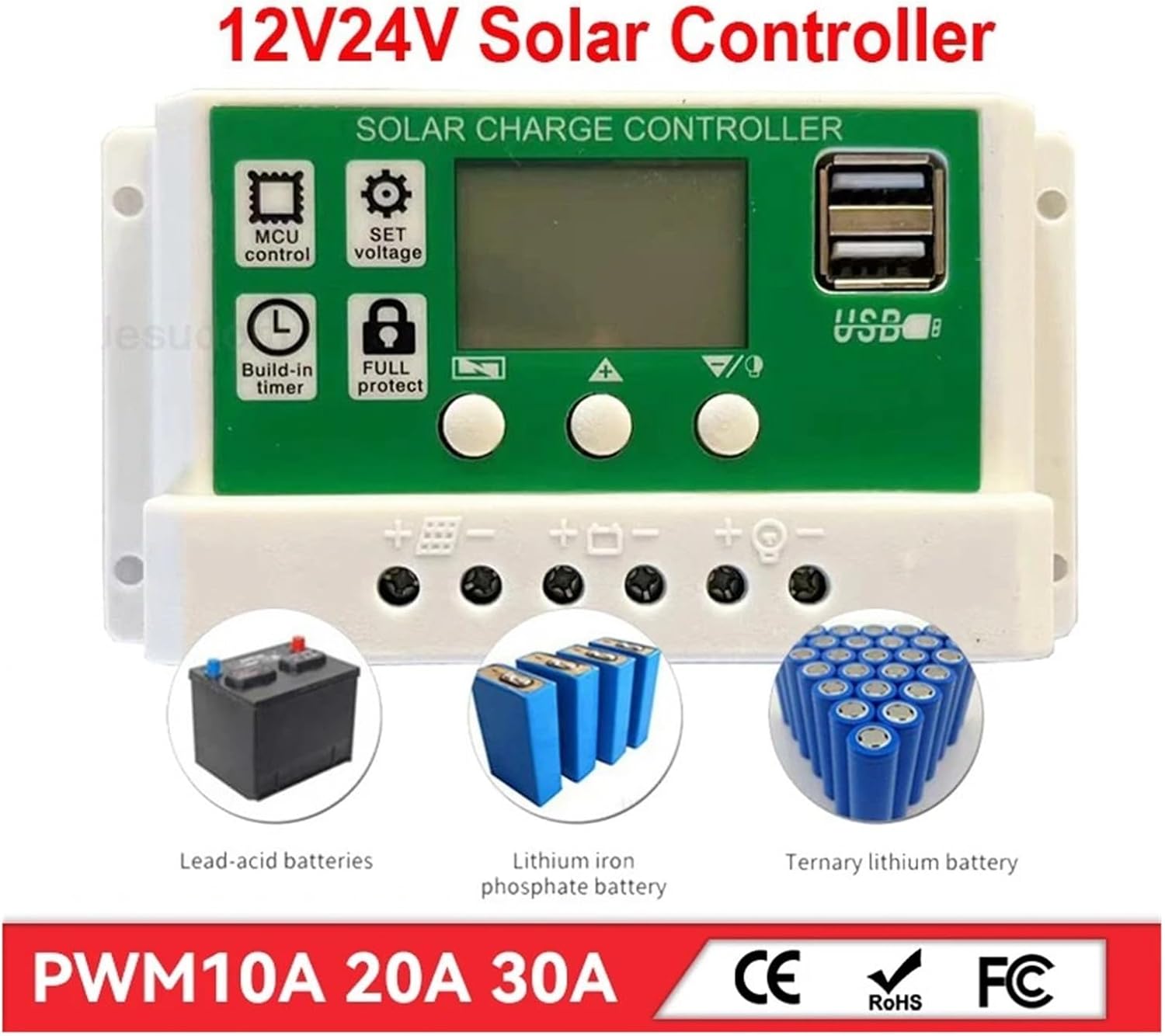

PWM Solar Charge Controller 10A 20A 30A 12V 24V Auto Batteries Charger Solar Regulator with LCD Diaplay Max PV 50VDC(20A)

PWM Solar Charge Controller 10A 20A 30A 12V 24V Auto Batteries Charger Solar Regulator With LCD Diaplay Max PV 50VDCIntrodution:This controller is a intelligent, multi-purpose solar charge and discharge controller. Fixed LCD display with a very friendly interface is used in this product; various control parameters can be flexibly set, fully meet your various application requirements.This is NEW Solar Controller ,It can fully meet your home Photovoltaic system(including home lighting system)requirements.It can recongize 12V and 24V Lead acid ,Gel battery automatically.There are optional 10A 20A 30A model :10A:if your battery is 12V ,the max solar panel input is 25V 120Wif your battery is 24V ,the max solar panel input is 50V 240W20A:if your battery is 12V, the max solar panel input is 25V 240Wif your battery is 24V, the max solar panel input is 50V 480W30Aif your battery is 12V ,the max solar panel input is 25V 360Wif your battery is 24V ,the max solar panel input is 50V 720WFeatures:Build-in industrial micro controller.Big LCD display,all adjustable parameter.Fully 4-stage PWM charge management.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.Dual mosfet Reverse current protection ,low heat production.Package Including:1PC PWM Solar Charge Controller1PC User Manual (English)==========Application : Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working StationMaximum Current : 10A 20A 30AOrigin : Mainland ChinaMaterial : plasticRated voltage : 12V 24VSize : 133.5mm*70mm*25mmUSB output : 2 ways, Maximum: 5V/2.5ADischarge up to voltage : 10.7V(adjustable)Floating charge voltage : 13.7V(adjustable)Discharge recovery voltage : 12.6V(adjustable)Working temperature : -35~+60'C

• 1.Equipped with against overheating, automatically stops charging, against output short circuit, against ovaer discharging, against reverse polarity connection and Limit the MAX charging current protection, protect circuit safety;
• 2.Complete silence and 24hours intelligent temperature monitoring to prevent dangerous conditions, ensure the safety of users.
• 3.Built-in backlight LCD Screen, real-time monitor and control charging: charging current, generated energy, temperature, battery voltage, and error codes, fast and easy set and debugging parameter;
• 4.It has multiple protection functions, including anti reverse connection, short circuit, high temperature, load overcurrent, etc., to protect the safety of the entire system
• 5.Widely Used，suitable for home, industry, business, etc.
