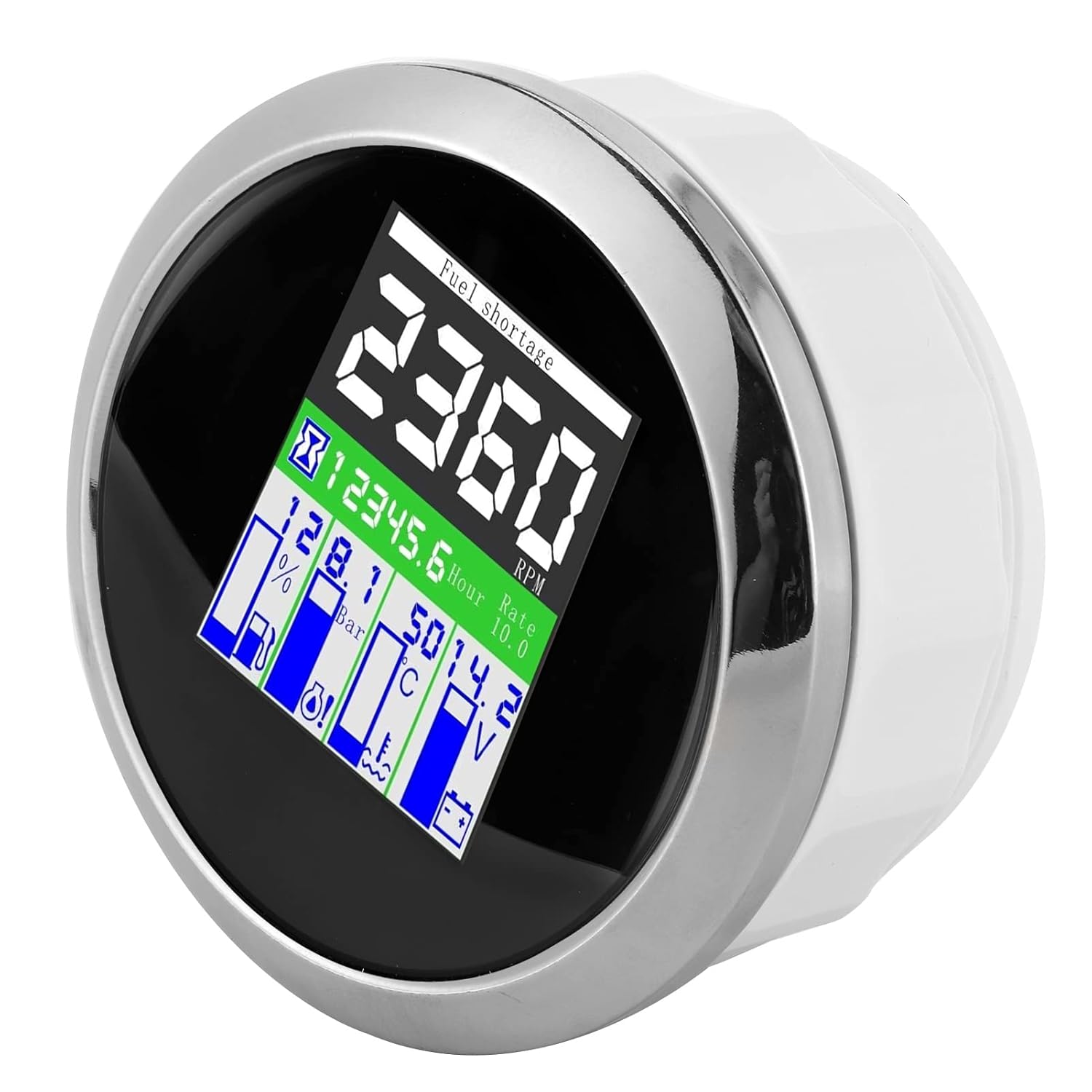

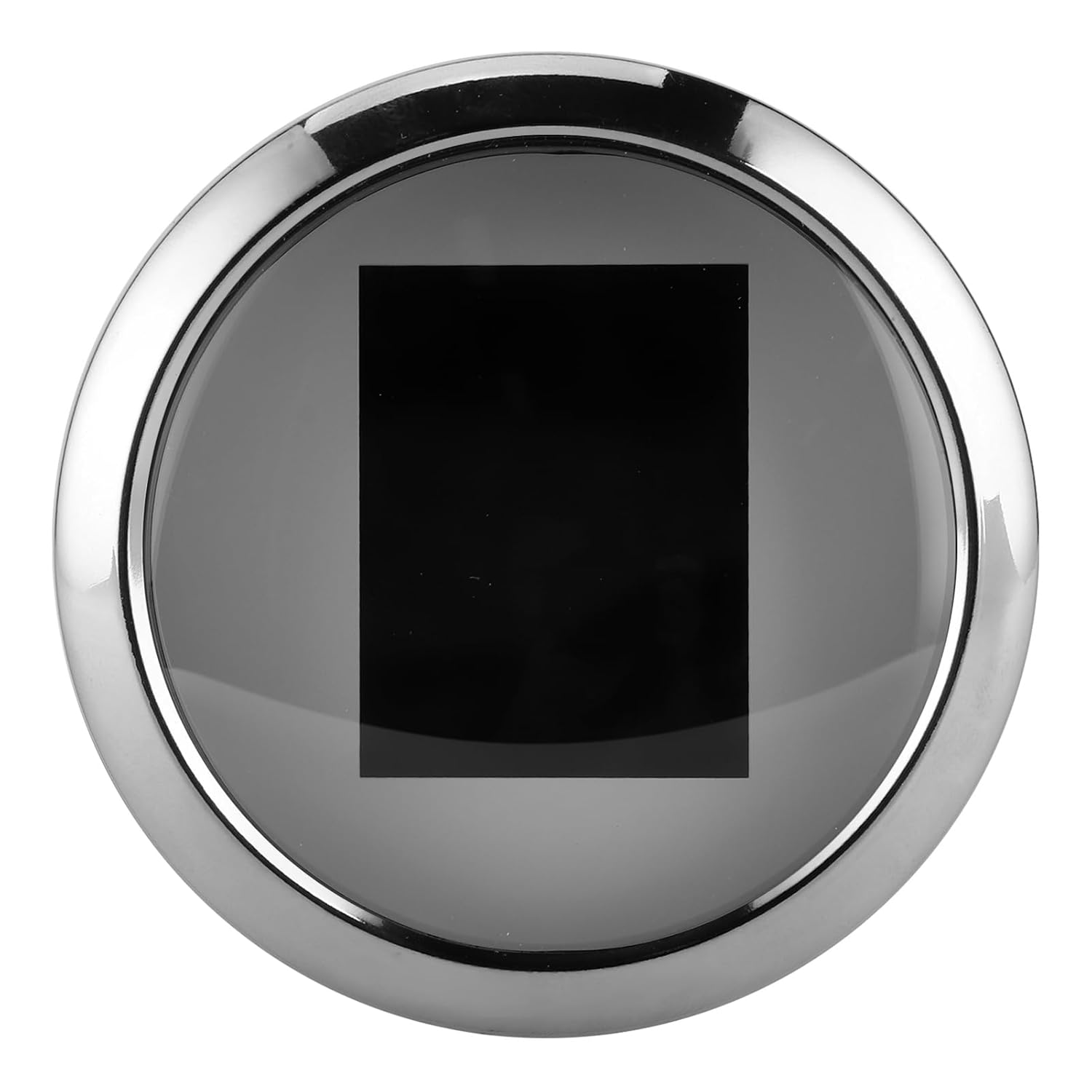

Pongnas Multifunction 85mm RPM Temperature Oil Pressure Fuel Gauge for Car Motorcycle Dial (White Dial)

1. Multifunction gauge features tachometer, temperature meter, oil pressure gauge, fuel level meter, etc. 2. Sensor fault alarm function, 85mm/3.35in installation dia, easy to mount and use. 3. High level of accuracy and sensitivity, providing you with a lot of convenience. 4. IP67 protection level, ‑30‑+70℃ working temperature, suitable for car, outboard, engineering machinery, motorcycle, etc. 5. Low oil level input parameters (customizable) speed ratio adjustable range is 1.0-360.0. Spec: Item Type: Multifunction Gauge Material: Stainless Steel+ABS Installation Diameter: Approx. 85mm/3.35in Function: Engine Speed: 0-9999 RPM Engine Oil Pressure: 0-10 Bar Engine Temperature: 40-120℃ Working Voltage: 9-32V (DC) Fuel Level: 0-100% Total Engine Hours: 0.0-9999.9H Oil Pressure Sensor: 10-184 Ohm Temperature Sensor: 301-22 Ohm Fuel Level Sensor: 0-190 ohm / 240-30 ohm environment Power Consumption: Working Temperature: -30-+70℃ Storage Temperature: -30-+80℃ Protection Level: IP67 Sensor Failure Alarm Function: 1. The Oil Pressure Sensor Is Closed, Low Pressure 2. The Temperature Sensor Is Closed, High Temperature 3. Low Voltage 4. Low Oil Level Input Parameters (Customizable) Speed Ratio Adjustable Range Is 1.0-360.0 Wiring Methods: 1. Black: Ground (-) 2. Red: 9-32VDC (+) 3. Blue: RPM signal 4. Yellow: Temperature signal 5. White: Oil pressure signal 6. Blue: Fuel level signal Application: Multi-function instrument for car, outboard, engineering machinery, motorcycle, etc. PackageList: 1 x Multifunction Gauge 1 x Fuel Level Sensing Wire 1 x Manual

• 【Multifunctional Design】 - This gauge seamlessly combines multiple functions including a tachometer, temperature meter, oil pressure gauge, and fuel meter. It's for a variety of vehicles, providing comprehensive monitoring in one device. Say goodbye to cluttered dashboards with this solution.
• 【Enhanced Accuracy】 - Equipped with high and sensitivity, this multifunction gauge offers accurate readings, ensuring you stay informed about your vehicle’s performance. Whether you're tracking oil pressure or engine temperature, trust this gauge to deliver reliable metrics for convenient .
• 【Rugged Durability】 - Engineered for resilience, this gauge features an IP67 rating, making it suitable for intense environments. Withstanding temperatures from -30°C to +70°C, it’s designed to endure the challenges posed during both rides and extreme conditions.
• 【User-Friendly Installation】 - With an installation diameter of 85mm (3.35in), our gauge is not only straightforward to mount but also designed for hassle- use, ensuring you can set it up in no time. The intuitive wiring instructions you for a seamless setup process.
• 【Customizable Features】 - Tailor the gauge to your needs with configurable parameters including low oil alerts and speed ratios ranging from .0-360.0. This flexibility empowers users to optimize performance according to specific vehicle requirements, enhancing the overall user experience.
