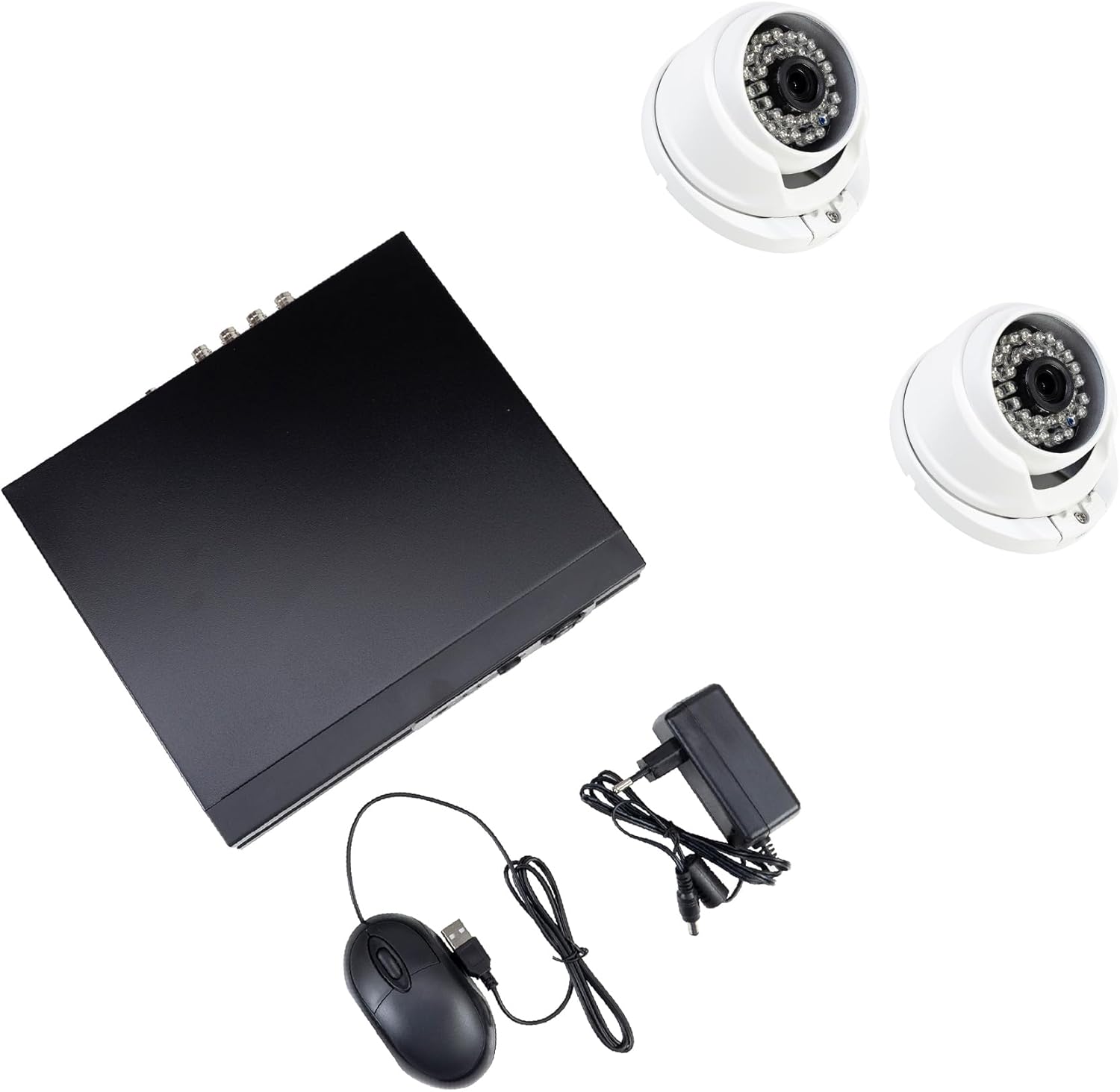

PNI House AHD880 AHD Video Surveillance Security Camera Bundle, 8 Channels, 5MP - DVR/NVR and 2 AHD25 Outdoor Cameras, 5MP, Dome, IP66

Product ID Product code PNI-PK-A880-251 PNI producer General characteristics of DVR/NVR Number of video channels 8 channels Watch on mobile and PC H.265+ video compression G.711A Audio Compression Frames per second (Max FPS) 18 FPS Recording resolution and number of channels Analog: 8 x 4K-N Hybrid: 8 x 4K-N analog + 4 x 5M IP IP: 16 x 1080P or 8 x 5M VGA Playback Resolution (1080P Max) / HDMI (4K Max) Maximum storage capacity 2 x 8 TB HDD (not included) dedicated to video surveillance RJ45 Network Interface - 10/100Mbps 1 x RCA Audio Inputs 1 x RCA audio output 8 x BNC video inputs VGA, HDMI video output USB 2 x USB 2.0 interface PTZ Control Stands Recording Type Manual, Scheduled, Alarm NT98323 processor Supply voltage 12 V / 2 A. Consumption 15W (without hard drive) Dimensions 255 X 225 X 40 mm XMEye dedicated application Detection of human faces Detection of human forms General characteristics of the surveillance camera Horizontal resolution PAL TV System Minimum illumination 0.01 Lux IR lighting distance Up to 25 m Number of LEDs 36 Maximum power consumption. Power 6W Analog video output, BNC connector Supply voltage 12 V ±10% 5MP sensor resolution Dimensions 100 X 105 X 75 mm Feature 1 Video Output: 1.0Vp-p, 75Ω (Composite BNC) Indoor or outdoor use Metal case Image resolution 2560 x 1920 px IR Cut Filter Yes Operating temperature -26°C ~ +80°C 3.6mm lenses IP66 waterproof class Video signal type AHD, TVI, CVI, CVBS Package contains: dvr Video camera 2 pcs mouse Power User Manual Software CD

• Access and Control Methods: PNI House AHD880 DVR/NVR can be controlled from mobile devices via XMEye Pro app compatible with Android and iOS, and from PC via General CMS software. You can find the CMS installation file on the CD included in the package or you can download it from our website, from the product page, Downloads section.
• DVR/NVR (Digital Video Recorder): PNI House's AHD880 DVR/NVR can record and play back images from up to 8 video cameras with analog resolution or 16 digital (IP) video cameras. Analogue: 8 cameras with a maximum resolution of 4K; Hybrid (Analog-Digital): 8 cameras with a maximum resolution of 4K + 4 IP cameras with a maximum resolution of 5MP; Digital (IP): 16 IP cameras with a maximum resolution of 2MP or 8 IP cameras with a maximum resolution of 5MP.
• 5MP AHD resolution: The PNI House AHD25 camera has an AHD - Analog High Definition resolution of 5MP (2560 x 1920px). PNI House AHD25 supports DVRs from many manufacturers thanks to the transmission of 4 types of analog video signal: AHD, TVI, CVI, CVBS.
• 36 IR LEDs and IP66: Thanks to the 36 IR LEDs, the PNI House AHD25 camera can capture sharp images even at night up to a distance of 25 meters. The metal housing and IP66 waterproof class make it suitable for outdoor mounting.
