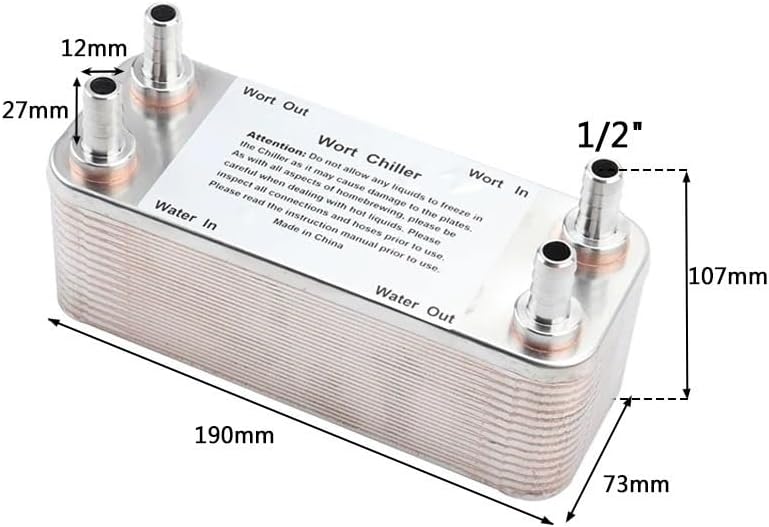

Plate Heat Exchanger Stainless Plate Wort Chiller - 30 Plates Brewing Chiller,with 1/2" Barb

Plate heat exchanger Stainless Plate Wort Chiller - 30 plates Brewing Chiller,with 1/2" barb30 Plate Wort Chiller, Stainless Steel 304, Brewing Chiller, homebrew Wort Chiller,beer brewing wort chiller 1/2" barbProduct Size: 7.48" x 2.83" x 2.87"(190 x 72 x 73 mm)Heat Transfer Area/plate: 0.012m2(0.14ft2)Thickness of plates: 0.3 mm(0.0118")Max Flow Rate: 66.6L/min(17.6gpm)Design Pressure:1.0 Mpa(145 psi)Test Pressure: 2.0 Mpa(290 psi)Refrigeration Capacity: 1-5 KW(3400-17000 BTU/hour)Package including:1*30 Plate Wort Chiller==========Product Type : Wort ChillersMaterial : Stainless SteelC : SilverMaterial : Stainless Steel 304Type : Plate Wort ChillerModel : Plate heat exchanger

• 【Compact Design】feature a design with high thermal conductivity, small size, and minimal space requirements, making them ideal for installations in confined spaces.
• 【High Heat Transfer Efficiency】Due to the corrugated plate design, BPHEs achieve efficient heat transfer and good fluid distribution, enhancing overall heat exchange efficiency.
• 【Low Maintenance Cost】The structure of it lacks gaskets and seals, reducing potential leakage points and maintenance needs, thereby lowering maintenance costs and frequency.
• 【Versatility】it can handle various fluids, including cooling water, refrigerants, and other industrial fluids, making them suitable for a wide range of applications.
• 【Modular Design】The heat exchange area and capacity can be adjusted according to specific requirements, meeting different process demands and application needs.
