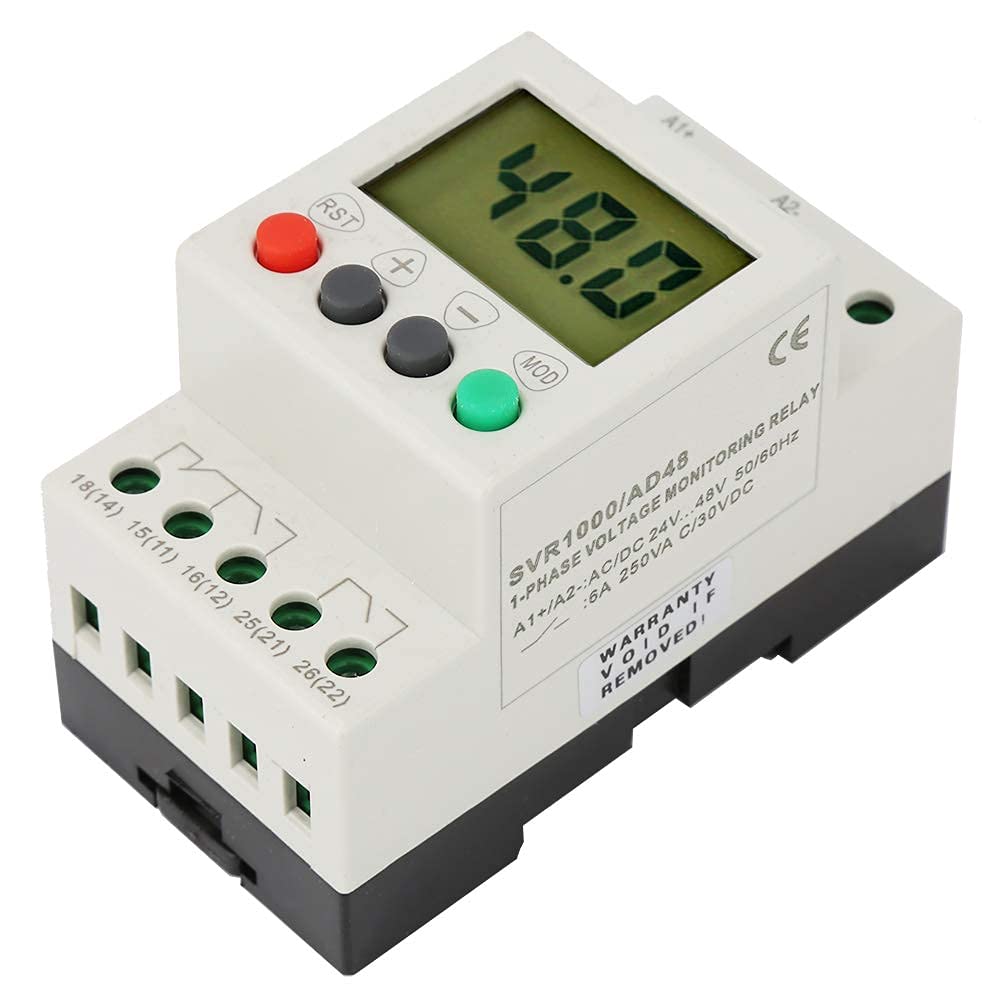

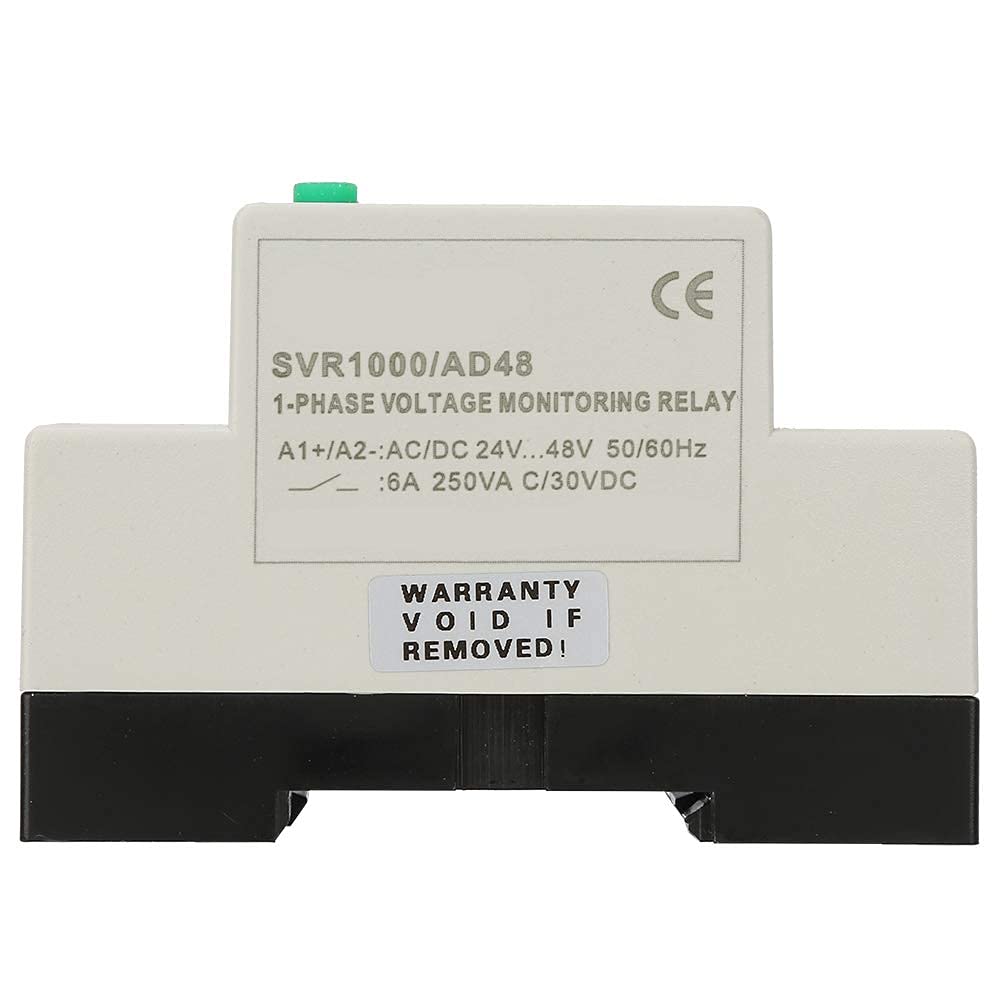

Over Voltage Relay Undervoltage Protector SVR1000 Single Phase 90V Under Voltage Relay 35mm Rail Mount for Electric Motor(AD48)

Features: 1. Standard modular structure, rail type installation. 2. Ac/dc voltage universal, automatic identification of ac/dc voltage, no need to switch. 3. Built-in LCD Chinese display voltage value, fault status, setting parameters. 4. Real-time monitoring of single phase over-voltage and under-voltage fault. 5. No additional auxiliary power supply is required. 6. Over-voltage value and action time can be adjusted. 7. 3 Reset modes: manual, automatic, automatic with power-on delay. 8. Fault recording function. 9. Output test function. 10. 1 CO & 1NC contacts, over-voltage and under-voltage . Specification: Model: SVR1000/AD48 Optional Type: D12, AD48, AD220 Monitoring Circuit: L(+),N(-) Rated Voltage: AC/DC 24V-48V 50/60Hz Function: Over-voltage, Under-voltage Over-voltage Adjustment Range: AC/DC 20V-80V,OFF Under-voltage Adjustment Range: AC/DC 0.1V-30V Over-voltage / Under-voltage Action Range: 0.1-999s Reset Mode: manual, automatic, automatic with power-on delay Reset Time: 0.1-999s Display: Chinese LCD Form: 1 CO & 1NC Capacity: 6A 250VAC Size: Approx. 80*43*54mm/3.1*1.7*2.1in Installation: 35mm Rail Typical Application Scope: electric motor, blower, , air compressor, crane, travelling crane, lifter, elevator, machine tool, central air-conditioning, refrigeration equipment, equipment, industrial control system Package List: 1 * Over-voltage Under-voltage Relay

• Standard modular structure, rail type installation. 3 Reset modes: manual, automatic, automatic with power-on delay.
• Ac/dc voltage universal, automatic identification of ac/dc voltage, no need to switch. Fault recording function. Output test function.
• Built-in LCD Chinese display voltage value, fault status, setting parameters.
• Real-time monitoring of single phase over-voltage and under-voltage fault.
• No additional auxiliary power supply is required. Over-voltage value and action time can be adjusted.
