Orthodontic Heat Treatment Spot Welder Braze Machine Stainless Steel Welders with Foot Pedal HL-WD2

Main technique parameter: Power supply: AC 110V, 60 Hz, AC 120V, 60 Hz, AC 220V, 50 Hz, AC 230V,50 Hz, AC 240V, 50 Hz Power: maximum instantaneous current 20A Transformer output power: 2000W, output voltage: 5V Incorrect operation alarm: when operation condition don’t accord with SET mode, the display shows Error beep. Security type: belong to classⅠ, type B Transformer overheating protection: 85℃ Energy regulation: Spot welding 1~30 Dimensions of weldment: Ф0.2mm~1.8mm stainless steel wire Fuse: Ф5×20mm, 20A Environment conditions: temperature 5℃~40℃, Relative humidity ≤80% Storage condition: temperature -10℃~55℃, Relative humidity ≤80% Packing list： Main machine 1 Power cord 1 Foot switch 1 Fuse 20A 1 State block 1 Certificate 1 Heat treatment clamp holder 1 Warranty card 1 Manual 1

• Good in safety feature; it has overheating protection system, there's indicator and alarm function with sub-pressure, overpressure and improper operation.
• Includes spot welding, brazing, heat treatment function
• Spot welder for stainless steel wire, stainless steel sheet welding, heat treatment. Common range weldment: 0.2mm ~ 1.8mm stainless steel wire.

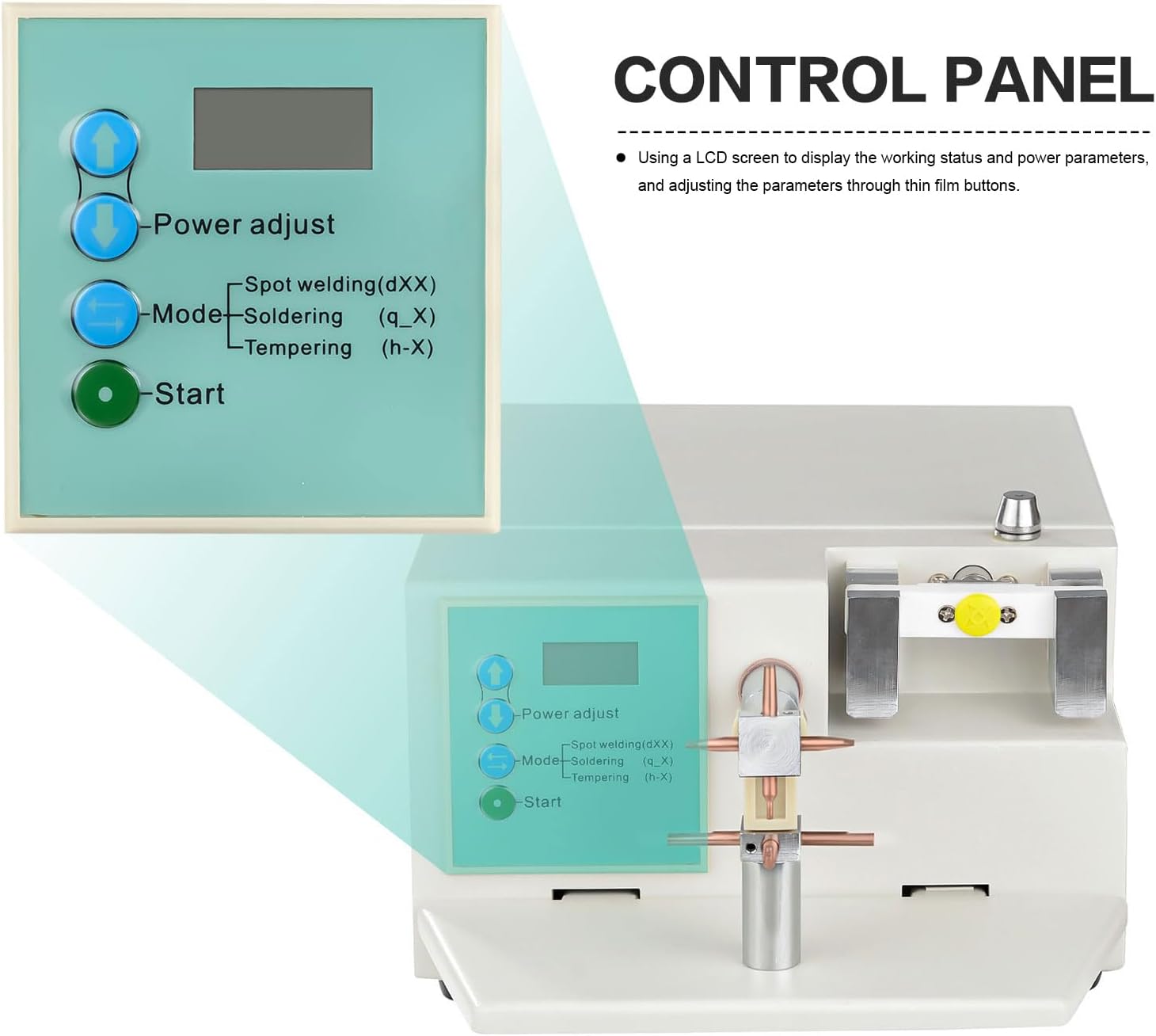

• Adopt digital display functional mode and power parameter, through membrane button to adjust the parameter, its convenient and concise.
• With the welding parameters memory function, when switch on, it will automatically show the same parameters as the last set, so there's no need to adjust parameter again at the same condition.
• Welding electrodes can be chosen with different combination, it's suitable for the different weldment
