Oil Cooler Thermostat Sandwich Plate Filter Engine Transmission Oil Cooling Adapter 10AN Inline Fluid Control Bypass

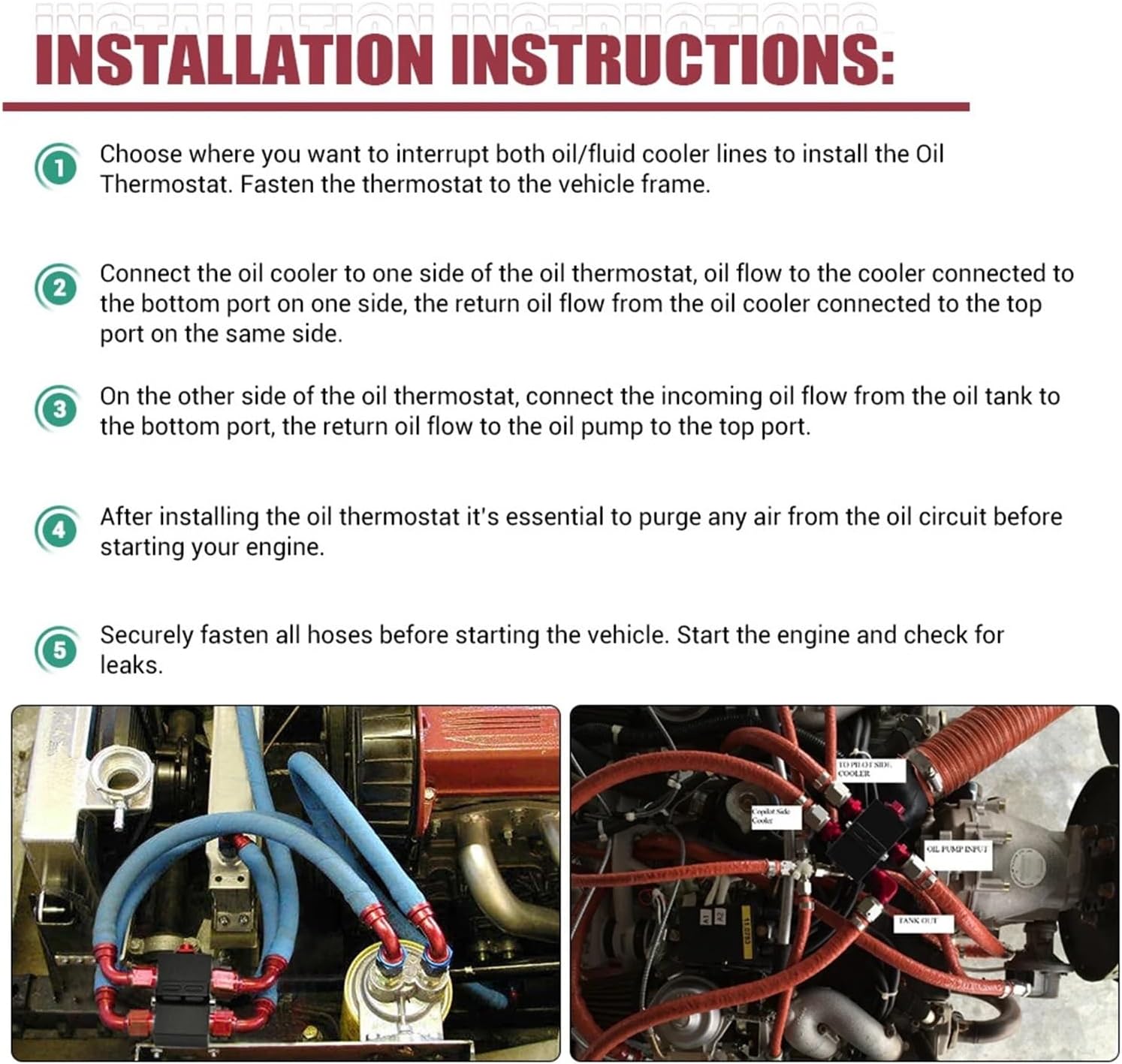

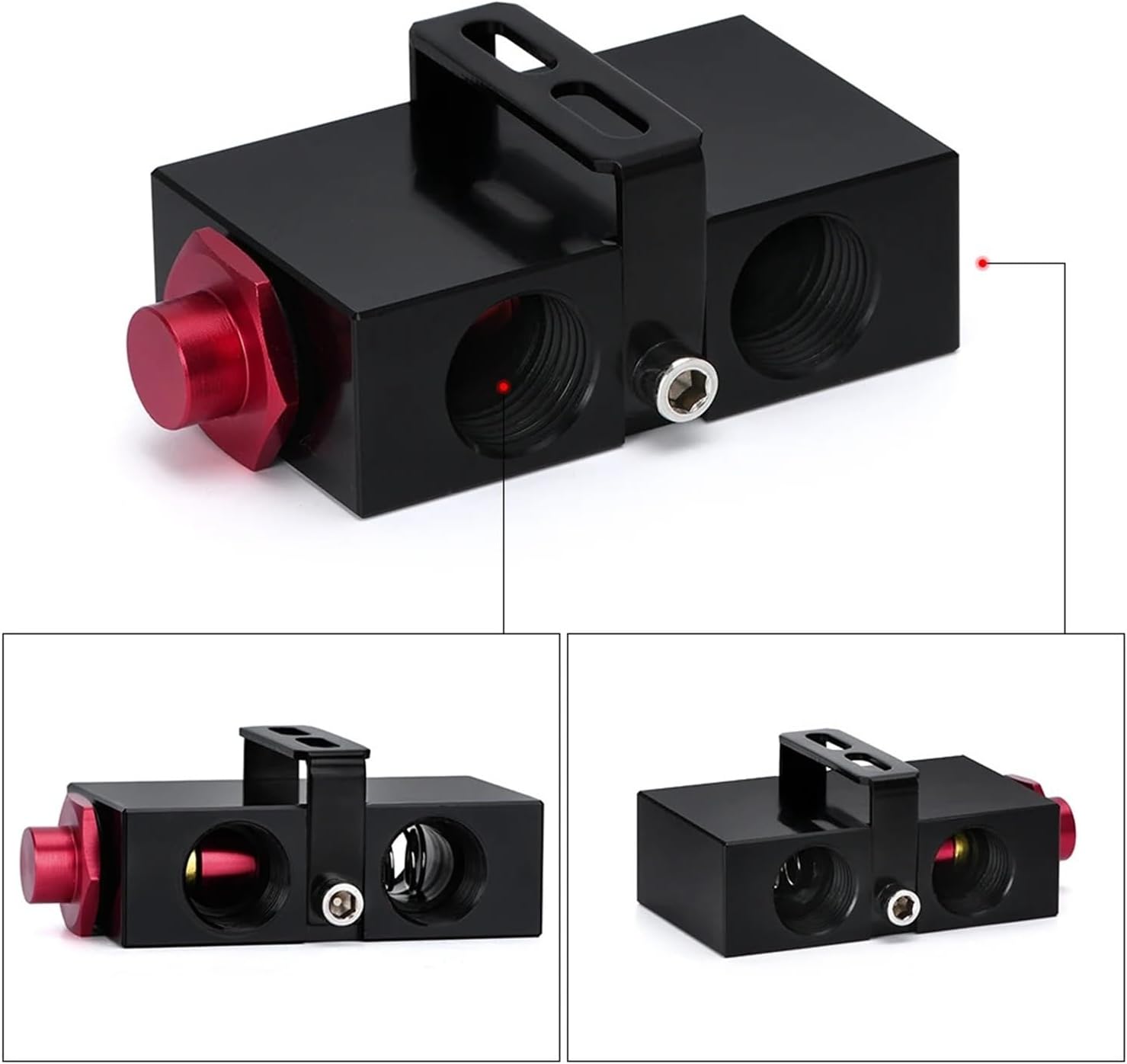

Oil Filter Sandwich Adaptor With In-Line Oil Thermostat AN10 fitting Oil Sandwich AdapterWLR5672BKApplication:Universal .Open at 72 degrees, close when cooling.Features and Benefits:A compact design, perfect for use on custom projects where space or clearance is a constraintIncludes 160°F (70°C) internal thermostat which accurately regulates fluid temperatures and can be easily removed.15-25 ft/lbs (operating range) for all straight fittings and banjo bolts.Do not exceed the maximum torque rating of 35 ft/lbs.It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle.Dimensions& MaterialOverall Size 392 x 203" x 1.47"Overall Size w/ fittings attached: 3.95" x 4.41" x 1.47"M20 x 1.5 Ports10AN Fittings w/ Dowty SealsMachined from billet 6061 CNC'd aluminum.Color: as picture.Four -10AN fittings with dowty seals for leak free operationPackage Included:1x Thermostatic Oil Plate. (100% Brand Never Used Or Installed)Installation Instructions:1.Choose where you want to interrupt both oil/fluid cooler lines to install the Oil Thermostat. Fasten the thermostat to the vehicle frame.2.Connect the oil cooler to one side of the oil thermostat, oil flow to the cooler connected to the bottom port on one side, the return oil flow from the oil cooler connected to the top port on the same side.3.On the other side of the oil thermostat, connect the incoming oil flow from the oil tank to the bottom port, the return oil flow to the oil pump to the top port.4.After installing the oil thermostat it's essential to purge any air from the oil circuit before starting your engine. 5.Securely fasten all hoses before starting the vehicle. Start the engine and check for leaks.

• Oil Cooler Thermostat Sandwich Plate Filter Engine Transmission Oil Cooling Adapter 10AN Inline Fluid Control Bypass
• Function 1: Integrated thermostat and sandwich plate design achieves dual functions of oil filtration and temperature regulation.
• Function 2: 10AN fitting supports inline installation, compatible with mainstream oil cooling lines for easy cooling system expansion.
• Function 3: Built-in thermostat automatically regulates oil flow to ensure engines/transmissions maintain optimal operating temperatures.
• Function 4: High-precision filter layer traps metal debris and impurities to enhance oil cleanliness and component lifespan.
